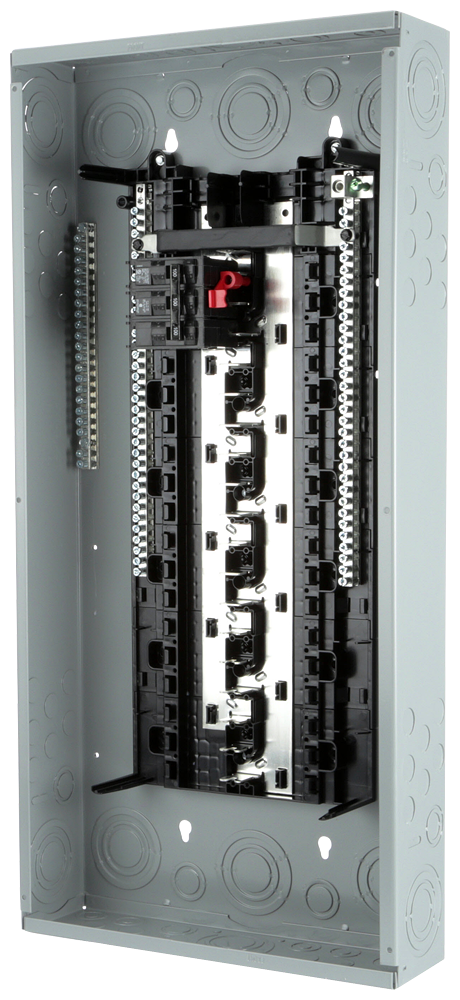

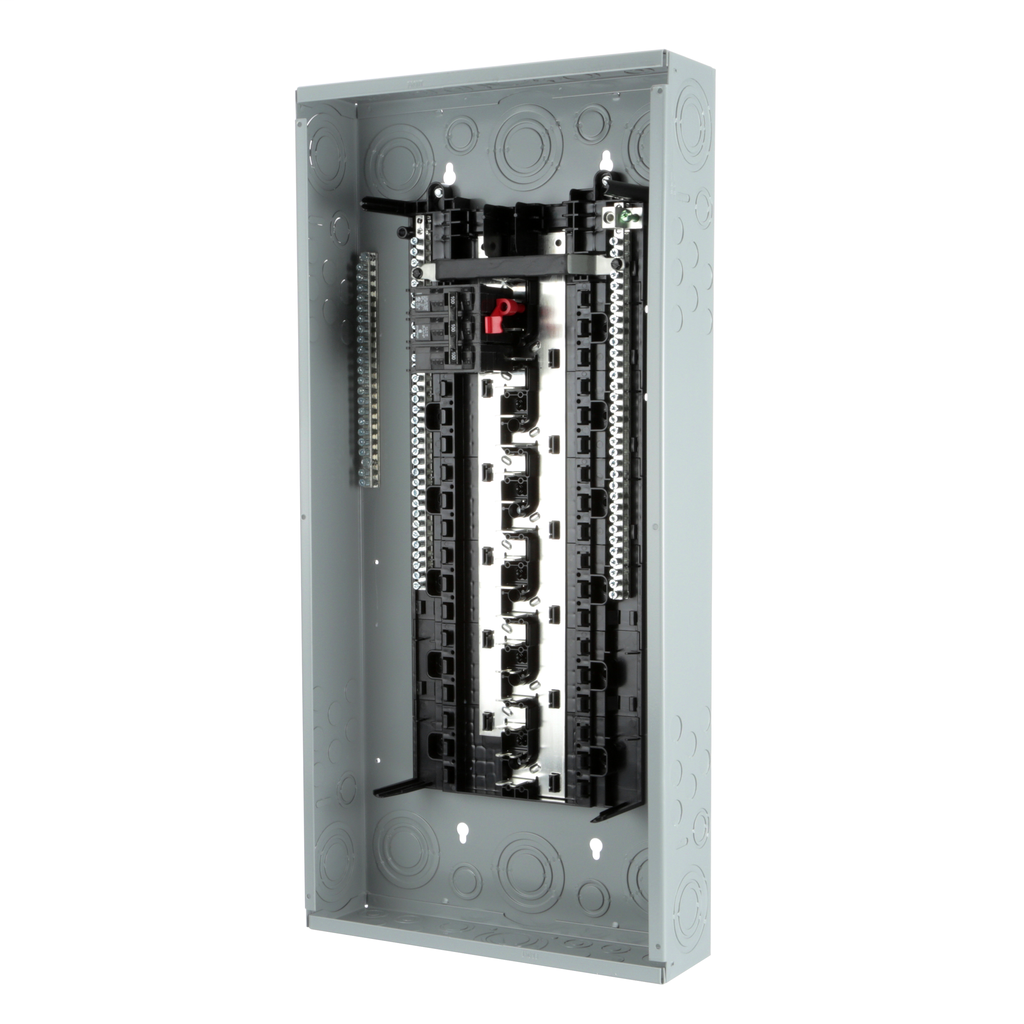

Siemens P3042B3100CU 120/208/240 VAC 100 Amp 3-Phase 3/4-Wire NEMA 1 Main Breaker/Convertible Load Center

Product Description

The Siemens P3042B3100CU is a reliable load center designed for three-phase systems. This model supports a voltage range of one hundred twenty to two hundred forty volts and can handle a maximum of one hundred amps. It features a main breaker and includes thirty spaces, which allows for a total of up to forty-two circuits.

• Type: PL Series assembled load center
• Interrupt rating: twenty-two kiloamps
• Enclosure type: NEMA 1 for indoor use

Product Highlights

This load center is suitable for residential and light commercial electric distribution. It features a copper bus that ensures better conductivity and reliability.

Product Information

Standard Information

• Catalog Number: P3042B3100CU
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Number of Phases: 3 Phase
• Number of Spaces: 30
• Maximum Number of Circuits: 42
• Interrupt Rating: 22 kA
• Country of Origin: Mexico
• Enclosure Size: 32.5 inches height
