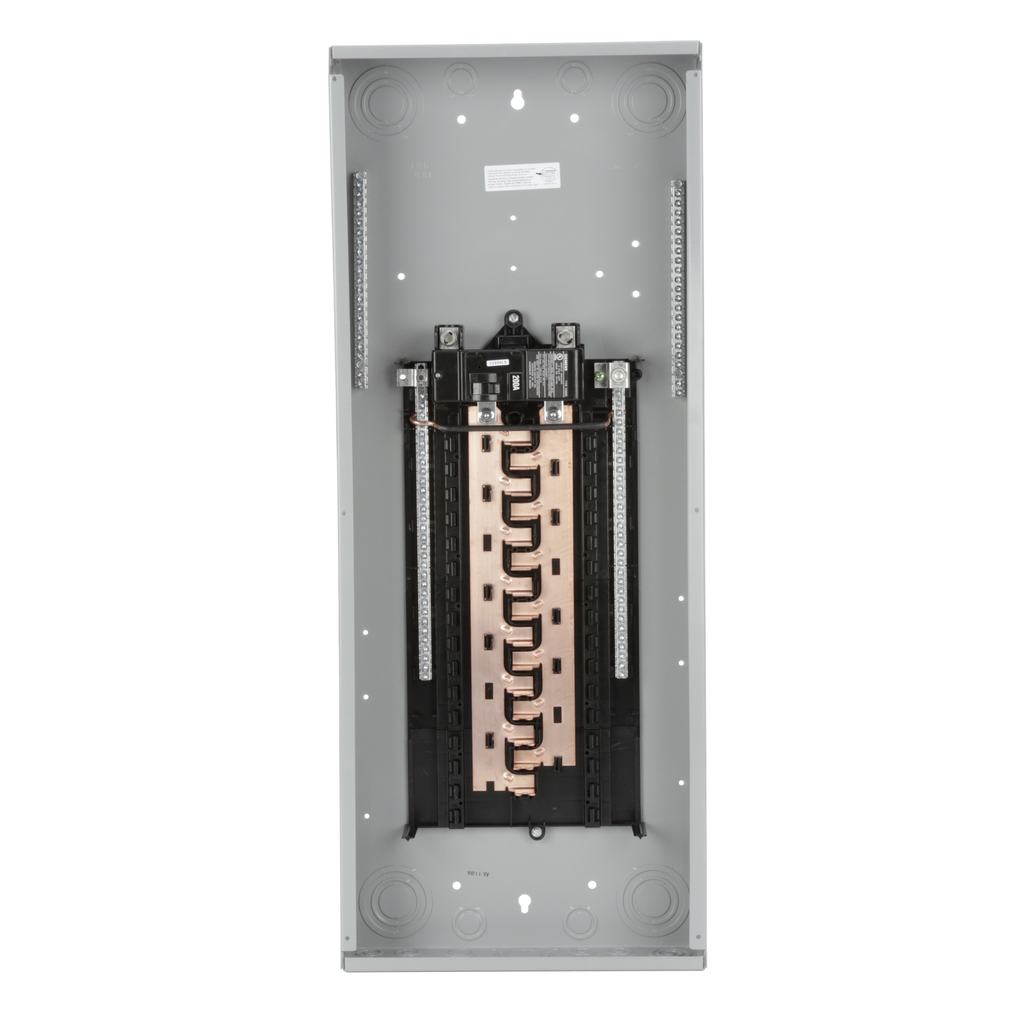

Siemens P3040B1200CU 120/240 VAC 200 Amp 1-Phase 3-Wire NEMA 1 Main Breaker/Convertible Load Center

Product Description

The Siemens P3040B1200CU is a 120/240 VAC main breaker load center rated for 200 amps. This unit features a factory-installed main breaker and 30 one-inch spaces, allowing up to 40 circuits. It operates on a single-phase three-wire system with a 22 kA interrupt rating. This load center is designed for indoor use, with a NEMA type 1 enclosure that is robust and reliable.

• Factory-installed main breaker
• 30 one-inch spaces for a maximum of 40 circuits
• Type 1 enclosure for indoor installation

Product Highlights

This load center ensures safe and efficient electrical distribution in residential and light commercial applications. Features include copper bus for higher conductivity and easy installation options.

Product Information

Standard Information

• Brand: Siemens
• MPN: P3040B1200CU

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 200 Amp
• Interrupt Rating: 22 kAIC
• Enclosure Type: NEMA Type 1
• Number of Spaces: 30
• Bus Material: Copper
• Application: Residential and light commercial electric distribution
• Mounting Type: Flush / Surface
