Siemens P2040B1200CU 120/240 VAC 200 Amp 1-Phase 3-Wire Main Breaker/Convertible Load Center

Product Description

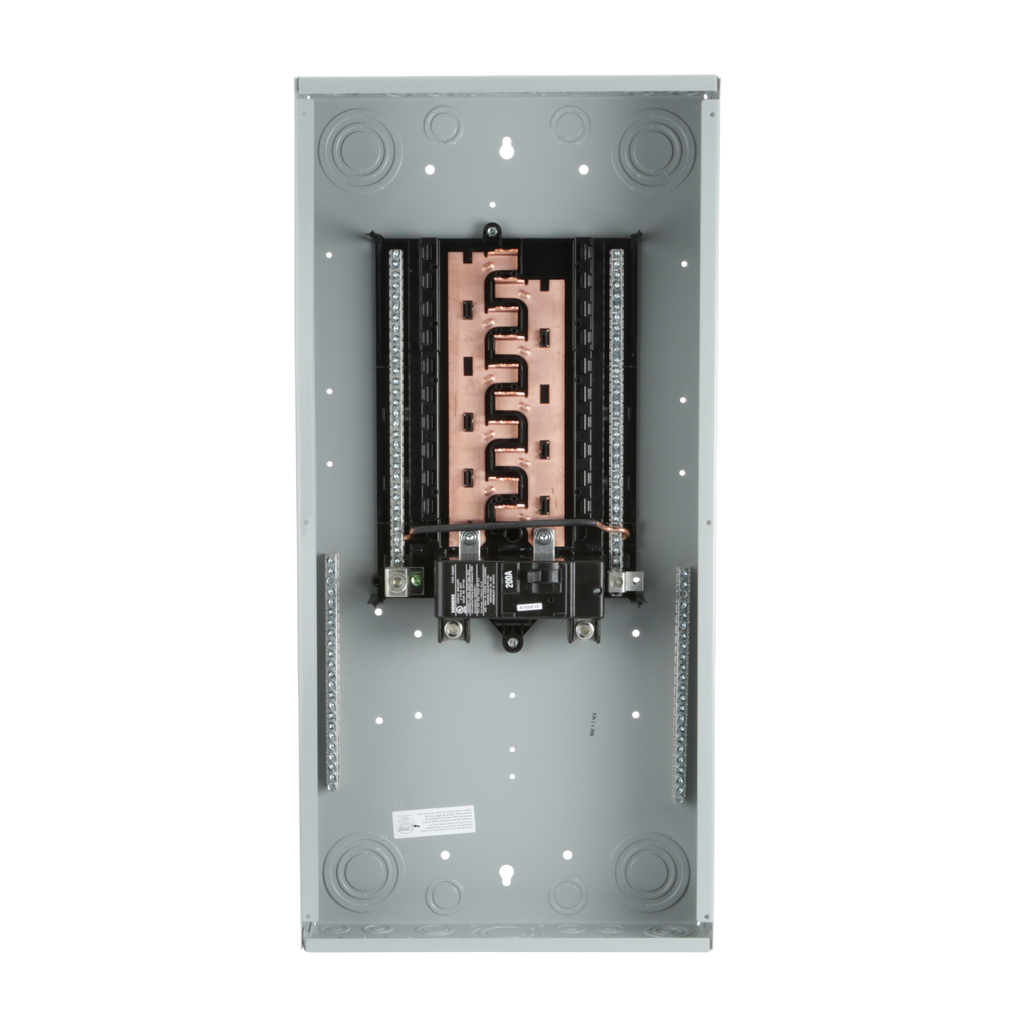

This Siemens P2040B1200CU is a load center designed for residential and light commercial electric distribution. It operates at 120/240 VAC and has a 200 Amp rating. The product comes with a factory-installed main breaker, allowing for up to 40 circuits using its twenty one-inch spaces. The load center features a copper bus, interchangeable main design, and is enclosed in a NEMA Type 1 rated housing for indoor use.

• Single phase, three-wire system
• Interrupt rating of twenty-two kAIC
• Flush or surface mounting options available

Product Highlights

This load center is ideal for managing electrical distribution in residential and light commercial buildings. The NEMA Type 1 enclosure makes it suitable for indoor installations, while its versatile mounting options allow for flexibility in application.

Product Information

Standard Information

• Catalog Number: P2040B1200CU
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 200 Amp
• Number of Phases: 1 Phase
• Number of Spaces: 20
• Enclosure Type: Type 1
• Interrupt Rating: 22 kAIC
• Application: Residential and light commercial electric distribution
• Mounting Type: Flush / Surface
