Siemens P1X54MC250CT Low Voltage RP1 Unassembled Lighting Panel 250A

Product Description

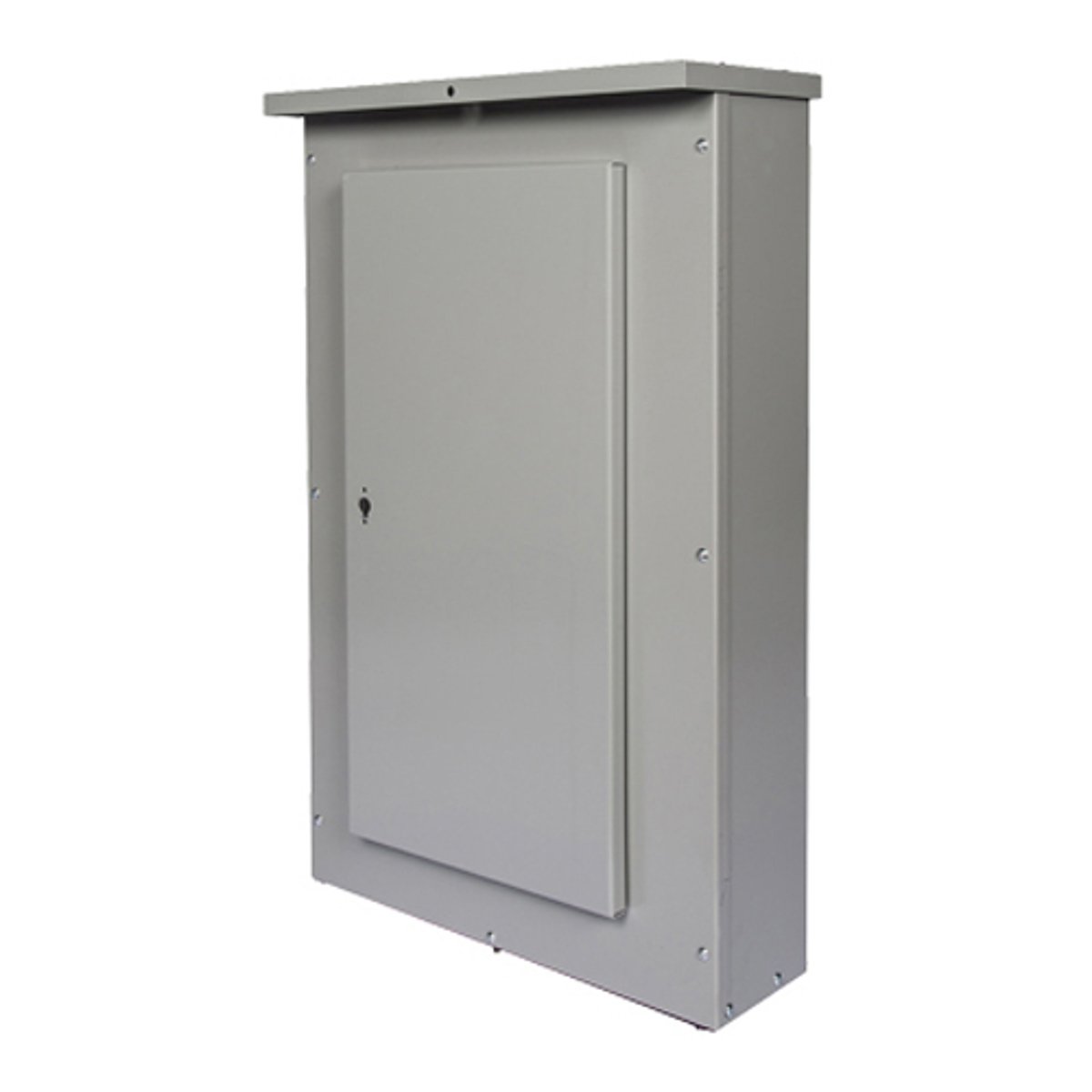

The SIEMENS P1X54MC250CT is a low voltage RP1 unassembled lighting panel with dimensions of 50.0 x 20.0 x 5.75 inches. This 3-Phase 4-Wire panelboard allows for 54 circuits and user selection of the Main Device (Lug/Breaker). It is rated for 208Y/120V at 250A and features a tin-plated copper main bus and includes subfeed space.

• Tin-plated copper main bus
• Subfeed space included
• Allows 54 circuits user selects Main Device (Lug/Breaker)

Product Highlights

Low voltage lighting panel, 54 circuits, 208Y/120V, 250A, copper bus.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: P1X54MC250CT
• Country of Origin: United States

Technical Specifications

• Catalog Number: P1X54MC250CT
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: United States
• Made in USA: Yes
• Application: Lighting/Distribution
• Phase: 3-Phase 4-Wire
• Standard: PB1/UL67
• UPC: 887621663070
• GTIN: 00887621663070
• Rated: 208Y/120V (250A)
• Circuits: 54
• Voltage Rating: 208 V Star/120 V
• Current Rating: 250 Ampere
• Circuit Configuration: 3-Phase, 4-Wire
• Main Breaker Type: FXD6/FD6/HFD6/HFDX6
• Branch Breaker Type: BL/BLH/HBL/BQD/NGB/HGB/LGB
• Maximum Number of Circuits: 54
• Bus Material: Tin Plated Copper
• Enclosure/Trim Size: 20 Inch W x 5.75 Inch D x 50 Inch H
• Approval: UL 67
