Siemens P1X54MC250AT RP1 UPB 250A (50 x 20 x 5.75) Replacement MPN

Product Description

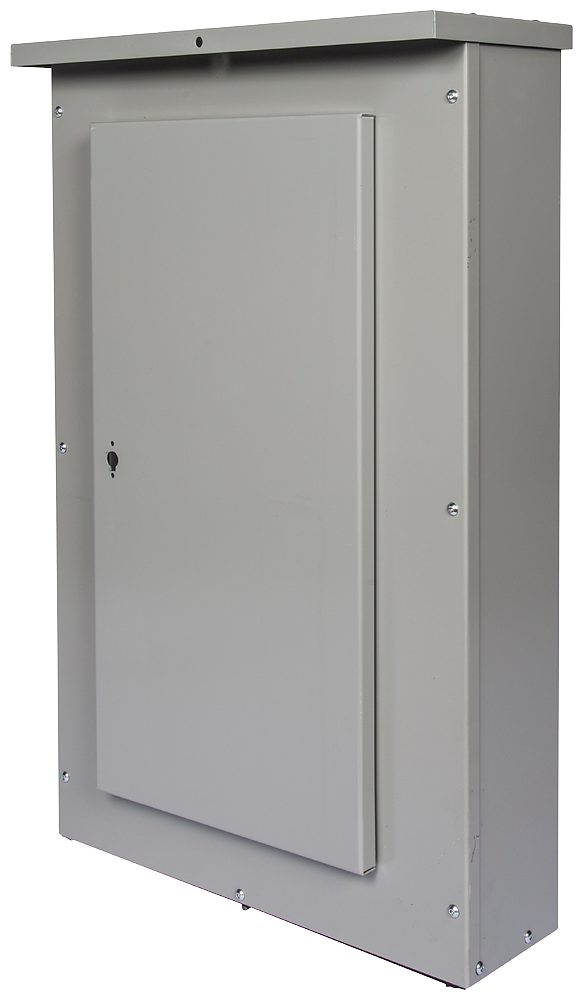

Siemens P1X54MC250AT is a low voltage RP1 unassembled lighting panel. It has the dimensions of fifty inches in height, twenty inches in width, and five point seventy-five inches in depth. This lighting panel operates on a three-phase four-wire configuration and allows for fifty-four circuits. The panel is rated at 208Y/120 volts with a current capacity of 250 amps.

• Includes a tin-plated aluminum main bus
• Subfeed space is provided
• Can be configured for either main lug or main breaker installations

Product Highlights

This panel is suitable for both lighting loads and branch circuit loads, making it versatile for various applications.

Product Information

Standard Information

• Catalog Number: P1X54MC250AT
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 208/120 VAC
• Amperage Rating: 250 A
• Material: Aluminum
• Dimensions: 50 in H x 20 in W x 5.75 in D
• Weight: 31 lb
• Country of Origin: USA
• Wiring Configuration: 3-Phase, 4-Wire
• Standard Approvals: PB1|UL 67
