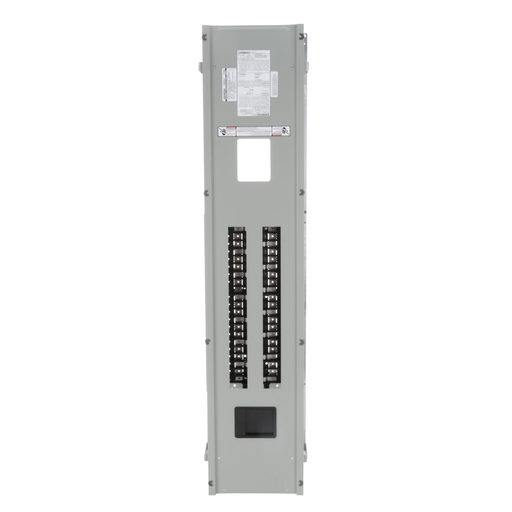

Siemens P1X42MC400CT 208 Star/120 Volt 400 Amp 3-Phase 4-Wire Copper Bus Convertible Main Panelboard Interior

Product Description

Siemens P1X42MC400CT is a main panelboard interior designed for use with a 208/120 Volt system. It provides up to 400 Amps and is configured for three-phase, four-wire applications. This panelboard allows for user-selected main devices, including both lugs and breakers, which can accommodate a total of 42 circuits. It features a tin-plated copper main bus for improved conductivity and durability. The panel dimensions are sixty-eight inches in height, twenty inches in width, and five point75 inches in depth, ensuring a compact fit for various installations.

• Rated for 208Y/120V and handles up to 400A
• Includes a subfeed space for additional circuit breakers
• Made in the USA

Product Highlights

This Siemens panelboard is specifically designed for lighting loads and branch circuit loads and meets UL and PB1 standards.

Product Information

Standard Information

• Catalog Number: P1X42MC400CT
• Brand: Siemens

Technical Specifications

• Voltage: 120 Volt
• Amperage: 400 Amp
• Material: Copper
• Dimensions: 68 in H x 20 in W x 5.75 in D
• Country of Origin: USA
• Application: Lighting Loads/Branch Circuit Loads
• Number of Phases: 3 Phase
• Enclosure Type: NEMA 1/3R/12
