Product Description

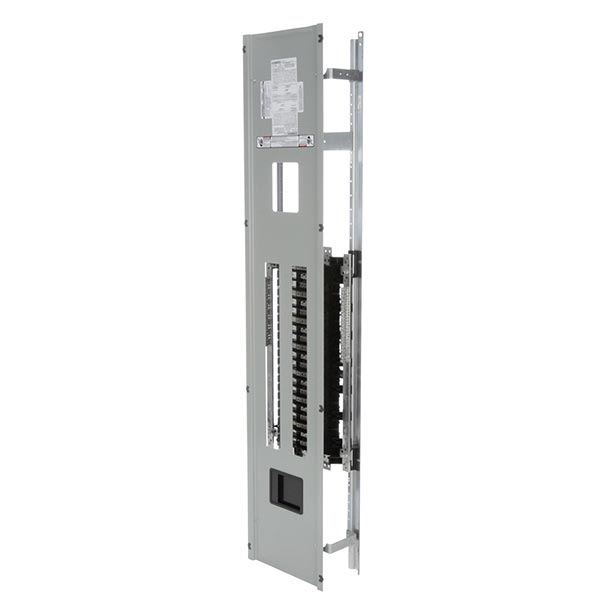

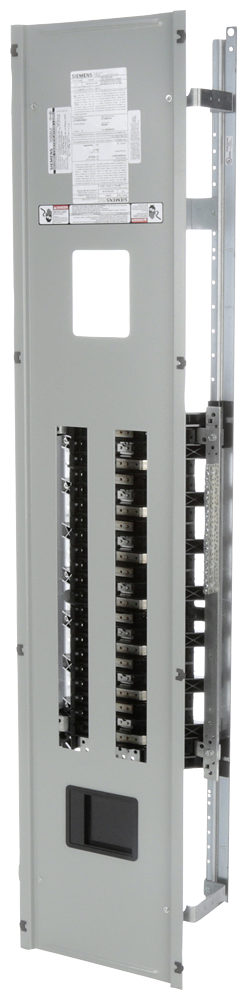

Siemens P1X42MC400AT is a convertible main panelboard interior designed to accommodate 400 amps in a three-phase, four-wire configuration. This panelboard is suitable for various lighting loads and branch circuit applications. The unit features tin-plated aluminum main bus for optimal conductivity. It allows for the selection of a main device, enabling flexibility in circuit management. This panelboard is rated for 208Y/120 volts and includes subfeed space for additional circuits.
- Includes up to 42 circuits
- Rated voltage: 208Y/120V
- Constructed from durable materials
Product Highlights
This panelboard interior supports efficient power distribution and ensures a long service life.
Product Information
Standard Information
-
Catalog Number: P1X42MC400AT
-
Brand: Siemens
Technical Specifications
-
Voltage Rating: 208/120 VAC
-
Amperage Rating: 400 A
-
Dimensions: 68 inches H x 20 inches W x 5.75 inches D
-
Bus Material: Aluminum
-
Enclosure Type: NEMA 1/3R/12
-
Weight: 34 lbs
-
Country of Origin: USA
-
Application: Lighting loads/Branch circuit loads
