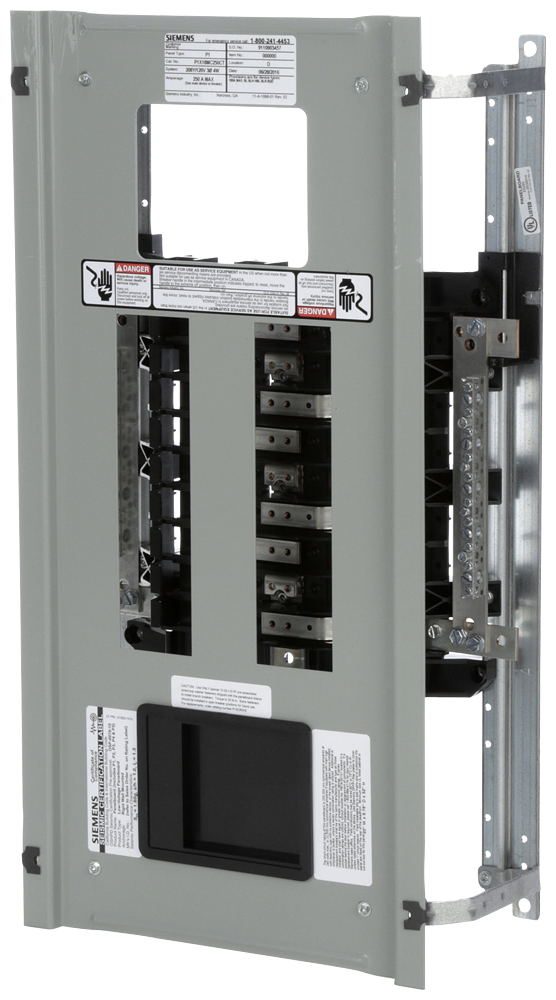

Siemens P1X18MC250CT 208 Star/120 Volt 250 Amp 3-Phase 4-Wire Copper Bus Convertible Main Panelboard Interior

Product Description

Siemens P1X18MC250CT is a three-phase four-wire panelboard interior designed for 250 Amp, 208 Star/120 Volt applications. This unit features a tin-plated copper main bus and is suitable for lighting loads and branch circuit applications. It has dimensions of thirty-two inches in height, twenty inches in width, and five and three-quarters inches in depth. The panelboard allows installation of up to eighteen circuits, with users having the option to select the main device type, whether lug or breaker.

• Three-phase, four-wire configuration
• Rated at 250 Amps and 208Y/120V
• Adaptable for various main device installations

Product Highlights

This Siemens panelboard interior supports efficient power distribution with an emphasis on user flexibility and easy installation. It is suitable for a variety of commercial and industrial settings.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: P1X18MC250CT

Technical Specifications

• Voltage: 208/120 VAC
• Amperage: 250 A
• Phase: 3
• Material: Copper
• Country of Origin: USA
• Weight: 18 lb
• Dimensions: 32 in H x 20 in W x 5.75 in D
• Application: Lighting/Branch Circuit Loads
