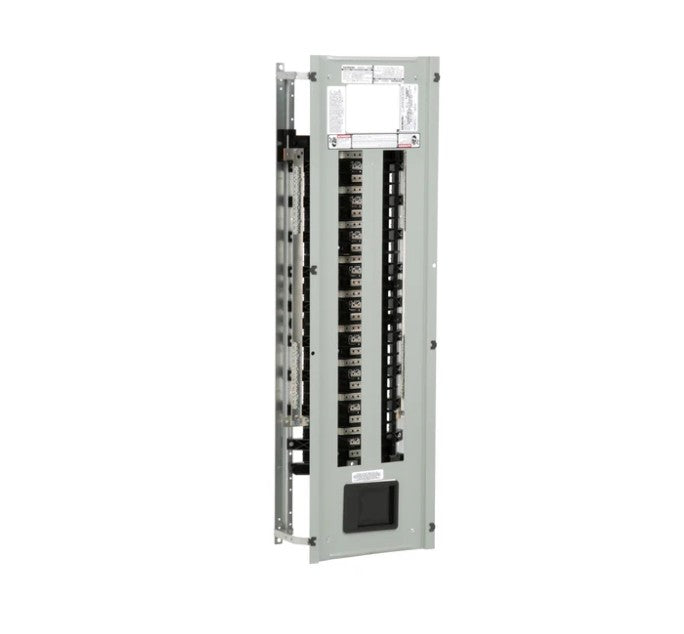

Siemens P1E54MC250AT 480 Star/277 Volt 250 Amp 3-Phase 4-Wire Aluminum Bus Convertible Main Panelboard Interior

Product Description

The Siemens P1E54MC250AT is a 480Y/277 Volt, 250 Amp, 3-phase panelboard interior designed for efficient power distribution. This aluminum bus convertible main panelboard supports a total of fifty-four circuits and allows users to select between a lug or breaker for the main device.

• Rated for 250 Amps.
• Dimensions are fifty inches in height, twenty inches in width, and five and three-quarters inches in depth.
• Features a tin-plated aluminum main bus with subfeed space included.

Product Highlights

This product is suitable for lighting loads and branch circuit loads. The symmetrical design allows for easy configuration from top to bottom feed by simply rotating the interior.

Product Information

Standard Information

• Brand: Siemens
• Country of Origin: United States

Technical Specifications

• Catalog Number: P1E54MC250AT
• Voltage: 480/277 Volt
• Amperage: 250 Amp
• Material: Aluminum
• Application: Lighting Loads / Branch Circuit Loads
• Phase: 3 Phase
• Dimensions: 50 inches H x 20 inches W x 5.75 inches D
• Weight: 31 pounds
