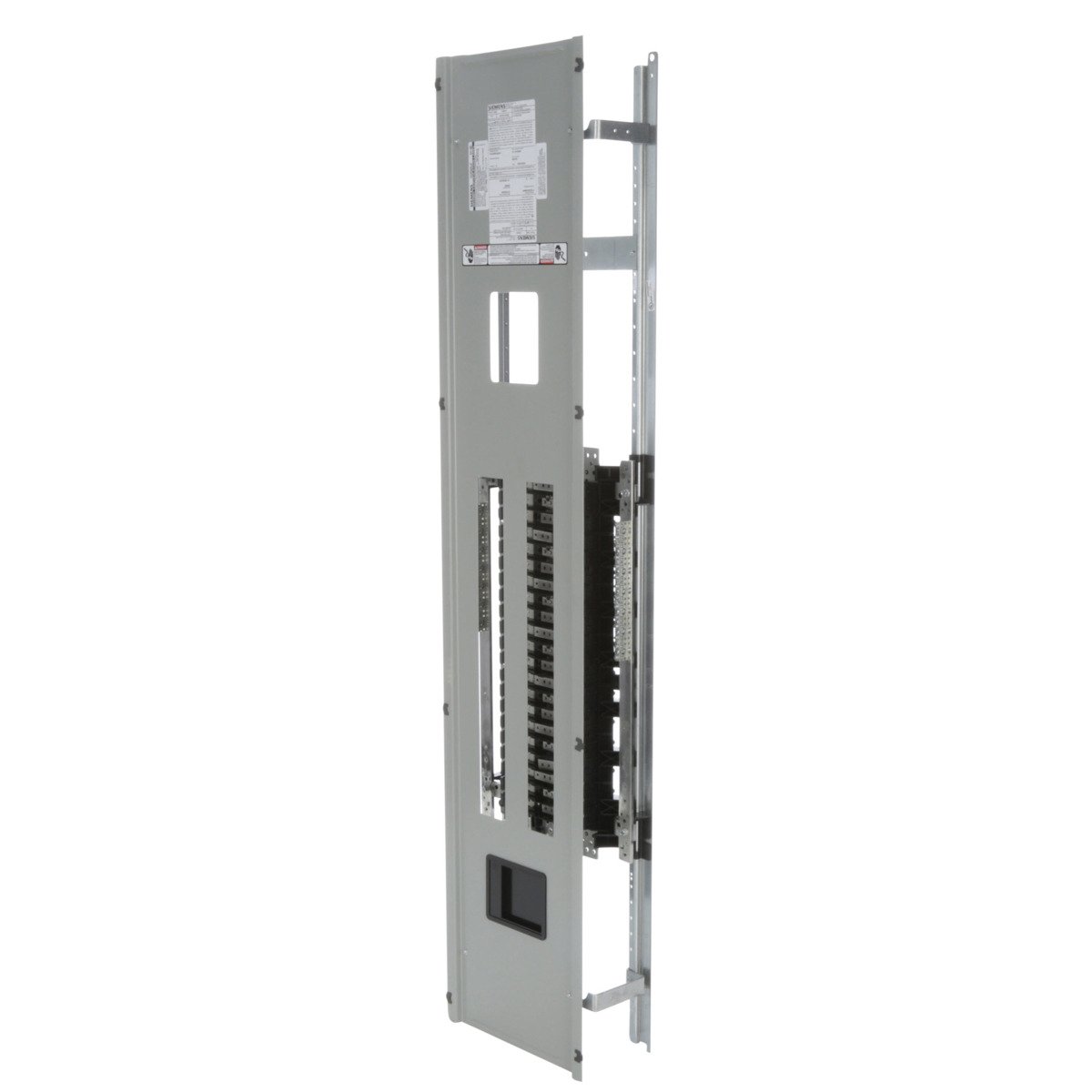

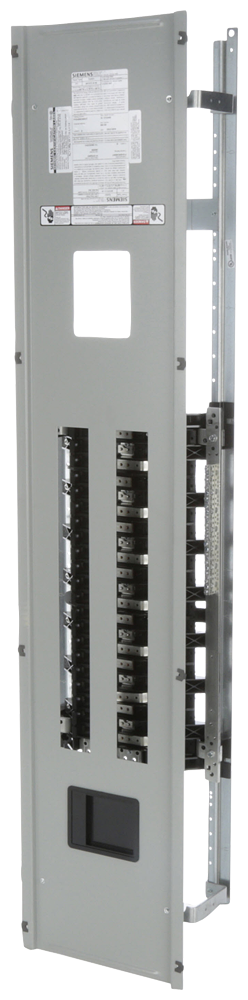

Siemens P1E42MC400AT 480 Star/277 Volt 400 Amp 3-Phase 4-Wire Aluminum Bus Convertible Main Panelboard Interior

Product Description

Siemens P1E42MC400AT is a panelboard designed for the distribution of electrical energy at 480Y/277V. It features a three-phase, four-wire configuration and allows connection for up to 42 circuits. The main device can be selected between lug and breaker types.

• Rated for 400 Amps
• Constructed with tin-plated aluminum main bus
• Subfeed space included

Product Highlights

The panelboard is suitable for various applications including lighting and branch circuit loads. The design allows for flexible configurations, making it easily adaptable for different installation needs.

Product Information

Standard Information

• Catalog Number: P1E42MC400AT
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 480/277 Volt
• Amperage Rating: 400 Amp
• Material: Aluminum
• Dimensions: 68 inches height x 20 inches width x 5.75 inches depth
• Weight: 19 pounds
• Country of Origin: USA
• Wiring Configuration: 3-Phase, 4-Wire
• Enclosure Type: NEMA 1/3R/12
