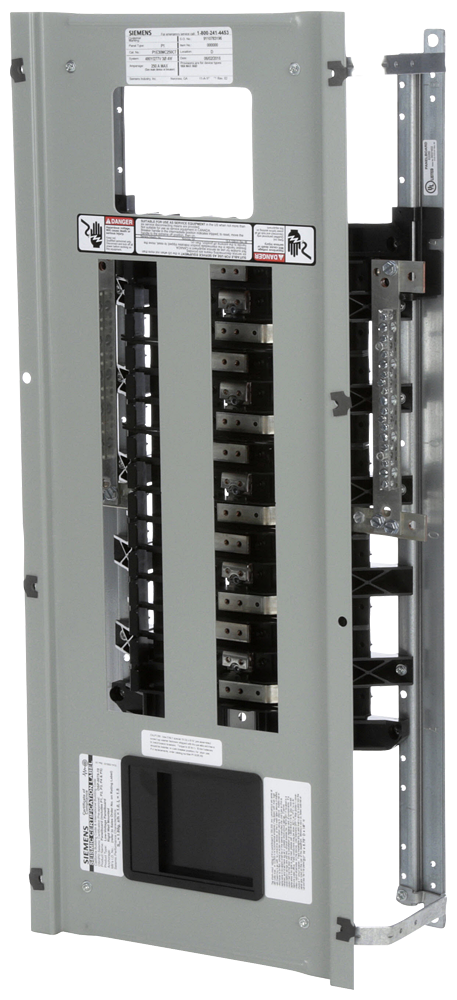

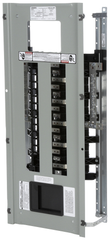

Siemens P1E30MC250CT Copper UPB Interior 250 Amp 480/277 Volts 30 Circuits

Product Description

The Siemens P1E30MC250CT is a panelboard interior rated for two hundred fifty amps and designed for a voltage of four hundred eighty to two hundred seventy-seven volts. It supports up to thirty circuits and features a copper bus structure, ensuring reliable performance in various applications.

• Application: Suitable for lighting and branch circuit loads.
• Dimensions: Height of thirty-eight inches, width of twenty inches, and depth of five point seventy-five inches.
• Three-phase, four-wire configuration for effective power distribution.

Product Highlights

This interior is unassembled, providing flexibility in installation as it can be converted from main lug to main breaker easily. Tin-plated copper main bus ensures durability.

Product Information

Standard Information

• Type: Convertible Main Lug
• Brand: Siemens

Technical Specifications

• Amperage Rating: 250 A
• Material: Copper
• Voltage Rating: 480/277 VAC
• Dimensions: 38 in H x 20 in W x 5.75 in D
• Enclosure Type: NEMA 1/3R/12
• Country of Origin: USA
• Maximum Number of Circuits: 30
• Amperage Configuration: 3-Phase, 4-Wire
