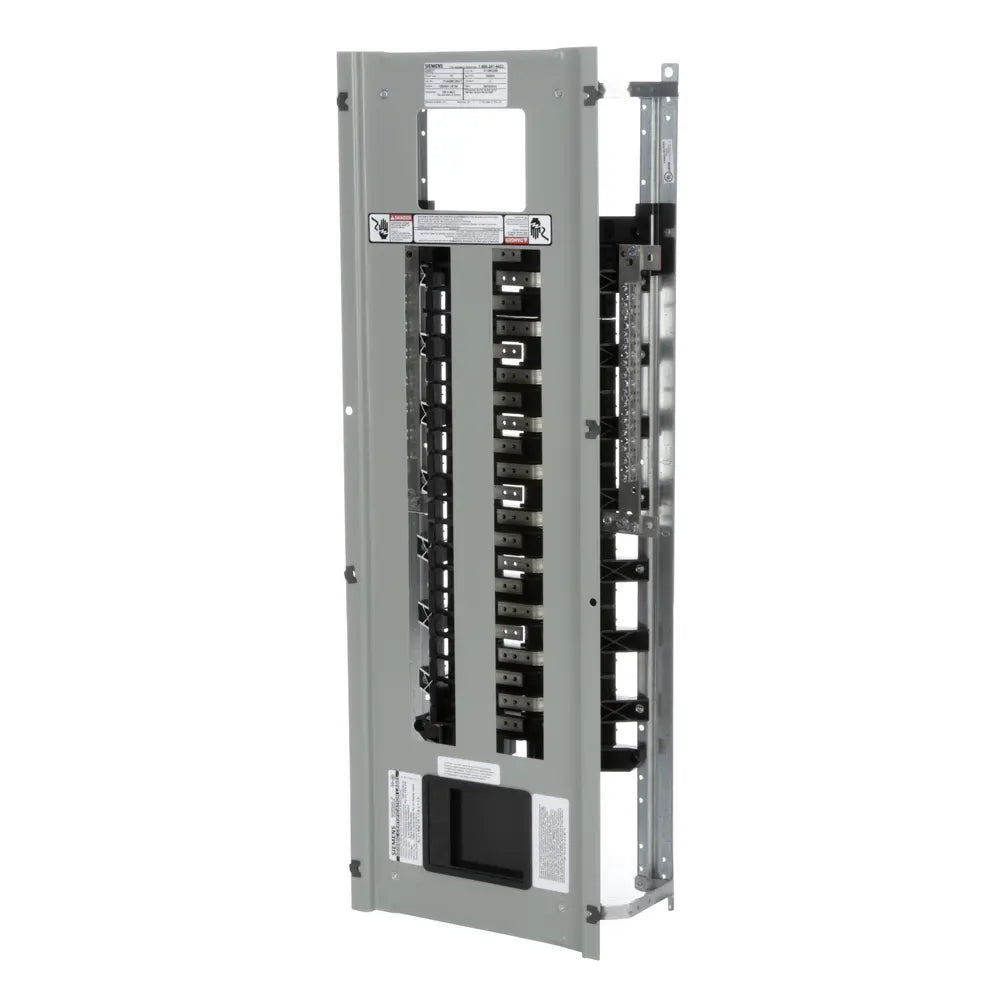

Siemens P1A42MC250CT Siemens Low Voltage RP1 Unassembled Lighting Panel 250A

Product Description

The Siemens Low Voltage RP1 Unassembled Lighting Panel, model P1A42MC250CT, is designed for efficient power distribution. It features a single-phase, three-wire configuration and accommodates up to forty-two circuits. This lighting panel allows for flexible main device selection, either via lug or breaker. It operates at a voltage rating of 120/240 volts with a maximum current of two hundred fifty amperes.

• Dimensions: forty-four inches high, twenty inches wide, and five point seven five inches deep.
• Constructed with tin-plated copper main bus for effective conductivity.
• Subfeed space is included for added functionality.

Product Highlights

This panel supports load center applications and offers a robust solution for residential or commercial wiring needs.

Product Information

Standard Information

• Brand: Siemens Industry
• Manufacturer: Siemens Industry

Technical Specifications

• UPC: 887621662646
• Type: Load Centers
• Phase: Single-Phase
• Width: 20 Inches
• Height: 44 Inches
• Depth: 5.75 Inches
• Weight: 28.065 Pounds
• Material: Copper
• Voltage Rating: 120/240 VAC
• Amperage Rating: 250 Amperes
• Frequency Rating: 50/60 Hertz
• Country of Origin: US
• Number Of Circuits: 42
