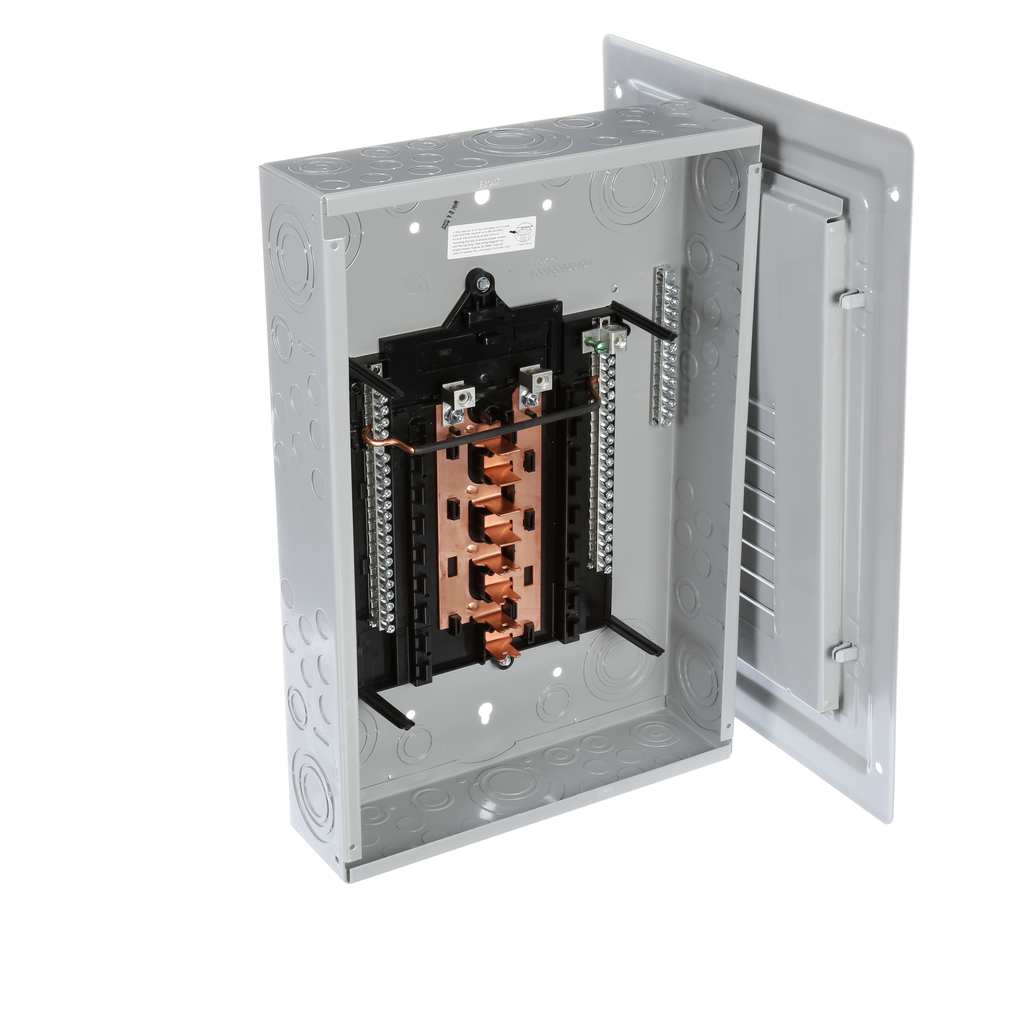

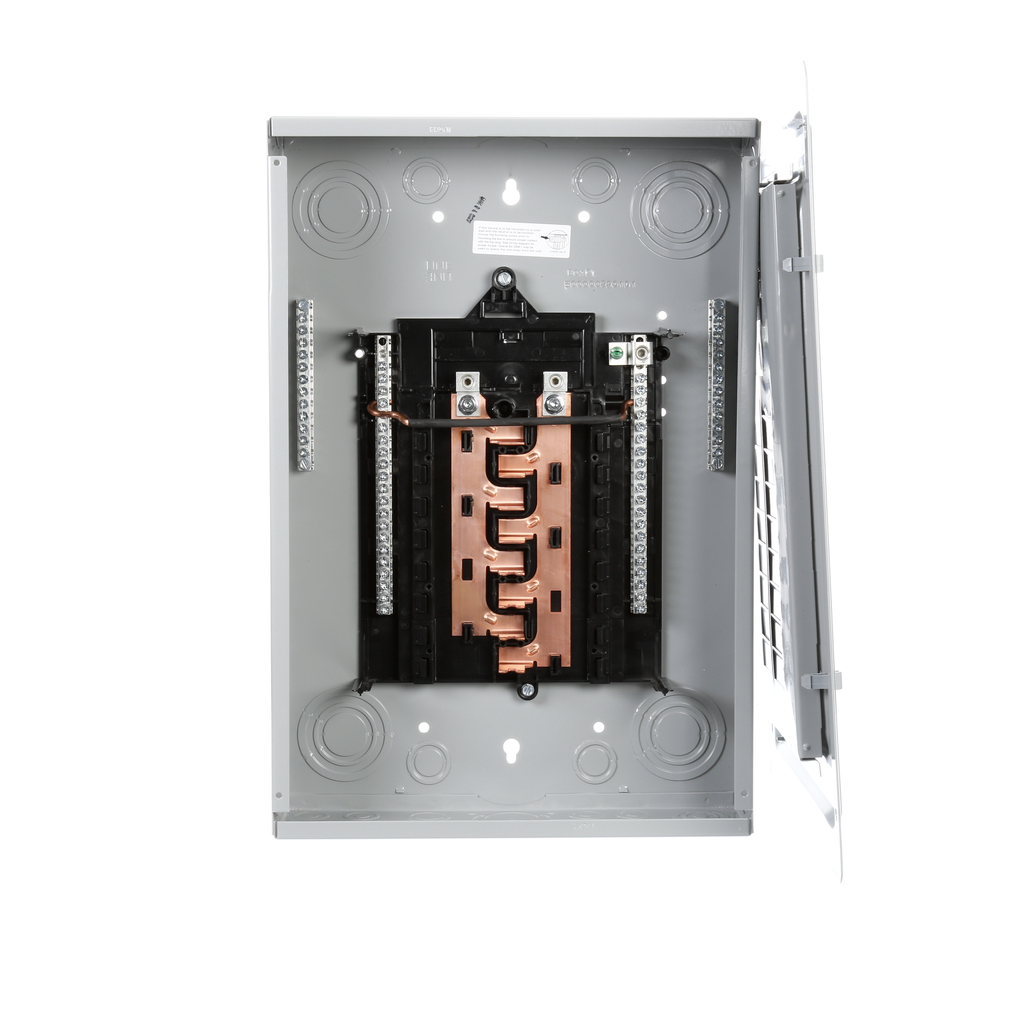

Siemens P1624L1125CU 120/240 VAC 125 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Convertible Load Center

Product Description

The Siemens P1624L1125CU is a main lug load center with a voltage rating of one hundred twenty/ two hundred forty volts and a current rating of one hundred twenty-five amps. This load center can accommodate up to twenty-four circuits in sixteen one-inch spaces. It is designed for single-phase and three-wire applications, making it suitable for residential and light commercial electric distribution.

• Features a copper bus structure for reliable conductivity.
• Includes interchangeable main for versatility.
• NEMA Type 1 enclosure designed for indoor use.

Product Highlights

This load center is ideal for renovation and new construction projects.

Product Information

Standard Information

• Catalog Number: P1624L1125CU
• Brand: Siemens

Technical Specifications

• Voltage Rating: 120/240 Volt
• Amperage Rating: 125 Amp
• Enclosure Type: Type 1
• Interrupt Rating: 100 KAIC
• Number of Phases: 1 Phase
• Number of Spaces: 16
• Bus Rating: Copper Bus
• Mounting Type: Flush / Surface
