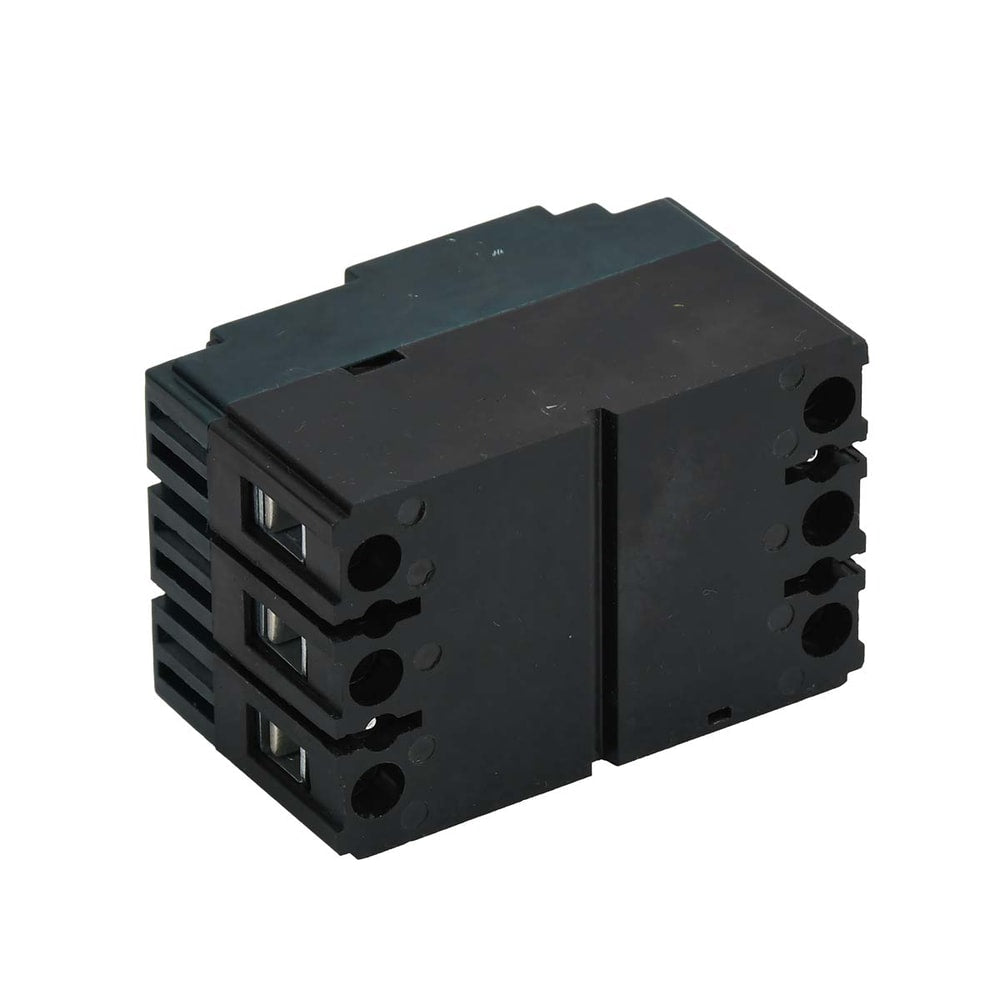

Siemens NNG3B900L VL Series Low Voltage Molded Case Circuit Breaker With Lugs 900 A

Product Description

The SIEMENS NNG3B900L VL series molded case circuit breaker has a compact, modular design suitable for a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, it meets major standards like UL, CSA, NOM, IEC, CE, and CCC. VL trip units measure true RMS current, ensuring accurate measurements in harmonic-filled electrical distribution systems.

• The modularity of the VL allows for last minute adaptation and reduces inventory
• Compact size reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs
• VL breakers are designed for global use, allowing the user to serve virtually every market using one design and footprint, all VL breakers are HACR rated

Product Highlights

The Siemens VL series circuit breakers feature both thermal magnetic and electronic trip units across the entire product line. Communication is possible over PROFIBUS DP or MODBUS RTU with electronic trip units.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NNG3B900L
• Country of Origin: MX

Technical Specifications

• Frame: NG
• Phase: 3
• UNSPSC: 39121601
• Trip Type: LI/Thermal Magnetic
• Wire Size: 1/0 AWG to 500 kcmil
• Voltage Rating: 600 VAC
• Connection Type: Line/Load Lug
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40 °C
• Type: Low Voltage
• Series: VL Series
• Dimensions: 16 in H x 9 in W x 6.2 in D
• Amperage Rating: 900 A
• Alternate Catalog Number: US2:NNG3B900L
• Application: GLOBAL INTERCHANGEABLE
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: NNG3B900L
• Connection: LINE & LOAD STANDARD (CU/AL) LUGS
• Country of Origin: MX
• EU RoHS Indicator: C
• Number Of Poles: 3
• Standard: UL/IEC/CE/CSA/NOM/CCC
• Sub Brand: VL
• Interrupt Rating: 35 kA
• Voltage Maximum: 600V AC/500V DC
• kA IR 240V AC: 65 kA IR
• kA IR 480V AC: 35 kA IR
• kA IR 600V AC: 25 kA IR
• KA IR VDC: 25 kA IR
• Terminals: Line and Load Lugs
• Dimensions WxHxD: 9.00x16.00x8.10 in. (229.0x406.0x207.0 mm)
• Frame Type: NG 1200A
• Breaker Type: VL Circuit Breakers
• Interrupting Class: Normal
• Specifics: Global interchangeable (UL, IEC, CE, CSA, NOM, CCC)
• Trip Unit: Thermal Magnetic, standard 40° C ambient
• Continuous Current Ratin: 900A
• Terminations: Line & Load Standard (cu/al) Lugs
