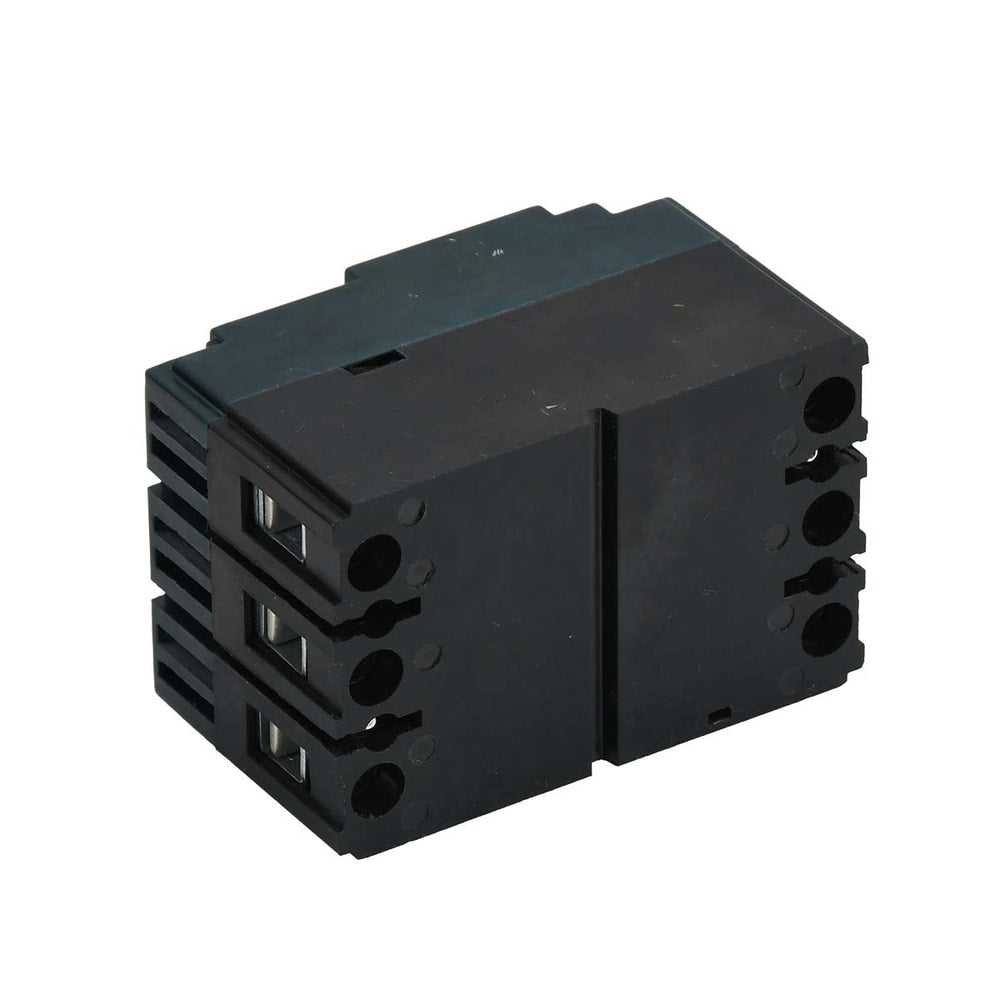

Siemens NMG3B700L VL Series Low Voltage Molded Case Circuit Breaker 700 A

Product Description

The SIEMENS NMG3B700L is a low voltage VL series molded case circuit breaker. This circuit breaker utilizes a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC.

• Compact size reduced dimensions save panel space
• Designed for global use
• High reliability

Product Highlights

The SIEMENS NMG3B700L circuit breaker features thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NMG3B700L
• Country of Origin: Mexico

Technical Specifications

• GTIN: 00783643592421
• UNSPSC: 39121601
• Country of Origin: Mexico
• Amperage Rating: 700 A
• Connection Type: Line/Load Lug
• Dimensions: 16 in H x 7.5 in W x 4.7 in D
• Frame: MG
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 35 kA
• Number of Poles: 3
• Phase: 3
• Series: VL Series
• Temperature Rating: 40 deg C
• Type: Low Voltage
• Wire Size: 1/0 AWG to 500 kcmil
• Weight: 51.4 lbs
• Width: 4.8 in
• BABA Compliant: No
• Trip Type: Thermal Magnetic
• Voltage Rating: 600 V AC
• Sold as: EACH
• Alternate Catalog Number: US2:NMG3B700L
• Application: GLOBAL INTERCHANGEABLE
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: NMG3B700L
• Connection: LINE & LOAD STANDARD (CU/AL) LUGS
• EU RoHS Indicator: C
• Harmonization Tariff Schedule Code: 8536200020
• Material: MOLDED CASE CIRCUIT BREAKER
• Operating Temperature: 40 °C
• Returnable: N
• Standard: UL/IEC/CE/CSA/NOM/CCC
• Sub Brand: VL
• UPC 11: 78364359242
• UPC 12: 783643592421
• Model Number: NMG3B700L
• Manufacturer: Siemens
• Group: Circuit Breakers
• Classification: Molded Case
• Breaker Type: VL Circuit Breakers
• Interrupting Class: Normal
• Specifics: Global interchangeable (UL, IEC, CE, CSA, NOM, CCC)
• Trip Unit: Thermal Magnetic, standard 40° C ambient
• Continuous Current Ratin: 700A
• Terminations: Line & Load Standard (cu/al) Lugs
• Amps: 700A
• Voltage: 600V
• Pole: 3POLE
