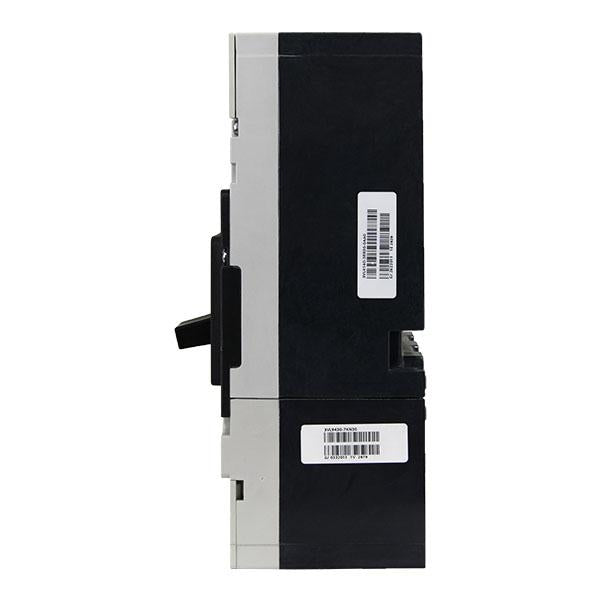

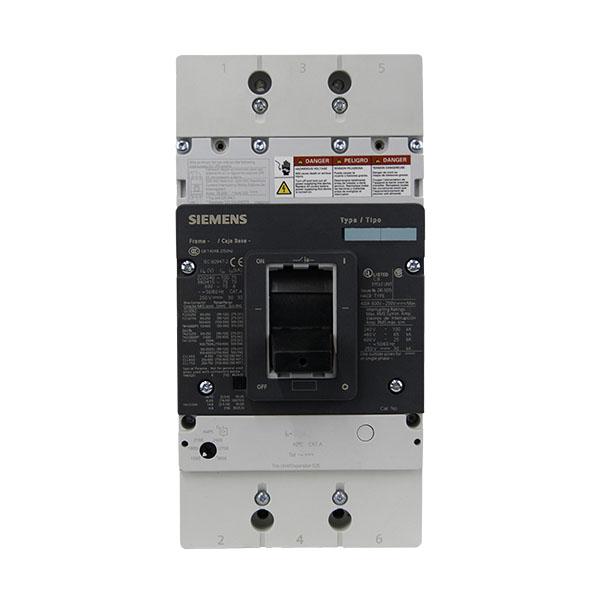

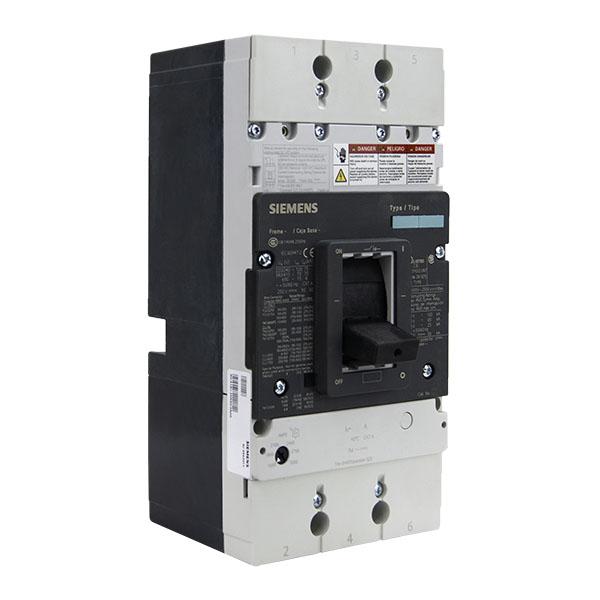

Siemens NJG3B300L Low Voltage Molded Case Circuit Breaker 250 A NJG3B300LARNXX

Product Description

The Siemens NJG3B300L low voltage molded case circuit breaker features a compact, modular design suitable for a wide range of applications. Designed to meet global requirements, it complies with UL, CSA, NOM, IEC, CE, and CCC standards. It measures true RMS current, ensuring accurate measurements in harmonic-filled electrical distribution systems.

• Compact size saves panel space, reducing system design requirements and material costs.
• Designed for global use, allowing service to virtually every market with one design.
• Communication capable over PROFIBUS DP or MODBUS RTU with electronic trip units.

Product Highlights

This Siemens circuit breaker offers a wide range of protection options and ampere ratings, ensuring a product to suit your needs.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NJG3B300L
• Country of Origin: United States

Technical Specifications

• Frame: JG
• Phase: 3
• UNSPSC: 39121601
• Trip Type: Thermal/Magnetic
• Application: For global interchangeable applications
• Voltage Rating: 600V
• Connection Type: Line/Load Lug
• Frequency Rating: 50/60
• Temperature Rating: 40
• Type: Thermal Magnetic Breaker
• Actuator Type: Handle
• Amperage Rating: 250
• Poles: 3
• Mounting Style: Feed-Thru
• Protection: Thermal Magnetic
• Trip Functions: LI - Long-Time and Instantaneous
• Interrupting Rating (AIC): 35kA@480V
• Brand: SIEMENS
• Manufacturer Part Number: NJG3B300L
• Mounting Type: Panel Mount
• Number of Poles: 3 Pole
• Overload: Thermal Magnetic
• Series: VL Series
• Termination: Box Lug
• UPC Code: 783643585836
• MPN: NJG3B300LARNXX
• Model: NJG3B300L
• Number of Phases: 3
• Country of Origin: United States
• Amps: 300A
• Voltage Maximum: 600V AC
• Number of Poles (P): 3P
• kA IR 240V AC: 65
• kA IR 480V AC: 35
• kA IR 600V AC: 25
• KA IR VDC: 25
• Terminals: Line and Load Lugs
• Frame Type: JG 400A
