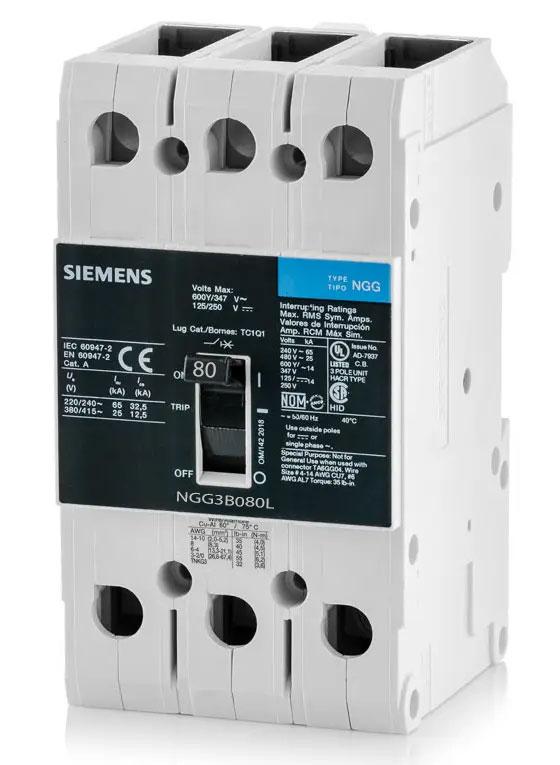

Siemens NGG3B080L NGG 3-Pole Circuit Breaker 80 Amp

Product Description

The Siemens NGG3B080L is a low voltage G frame circuit breaker with a thermal-magnetic trip and a UL listed NGG frame. Rated at 80A, this 3-pole breaker is designed for panelboard mounting and offers standard breaking capacity. It mounts on DIN rail or screw and includes line and load side lugs. Dimensions are 3 x 5.4 x 2.8 inches.

• Low voltage G frame circuit breaker with thermal-magnetic trip.
• Mounts on DIN rail or screw.
• Line and load side lugs included.

Product Highlights

The Siemens NGG3B080L circuit breaker provides reliable circuit protection with thermal-magnetic trip functionality and versatile mounting options for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGG3B080L

Technical Specifications

• Type: NGG
• Brand: Siemens
• Width: 3.000
• Current: 80 Amp
• Voltage: 480 Volt
• Amperage: 80 Amp
• Frequency: 50/60 Hz
• Sub Brand: NGG
• Trip Type: Thermal Magnetic
• Applications: INDUSTRIAL
• TC Connection: Line and Load Lugs
• Number of Poles: 3 Pole
• Interrupt Rating: 25 kAIC
• Operating Temperature: 40DEGC
• Actuator Type: Toggle
• Manufacturer Part Number: NGG3B080L
• Mounting Type: DIN Rail Mount
• Series: NGG Series
• Special Features: HVCR Rated
• Terminal Type: Box Lugs
• UPC Code: 783643413887
• Phase: 3
• Wire Size: 8 to 1/0/8 to 2/0 AWG
• UNSPSC: 39121601
• Standards: UL/CSA/IEC/NOM
