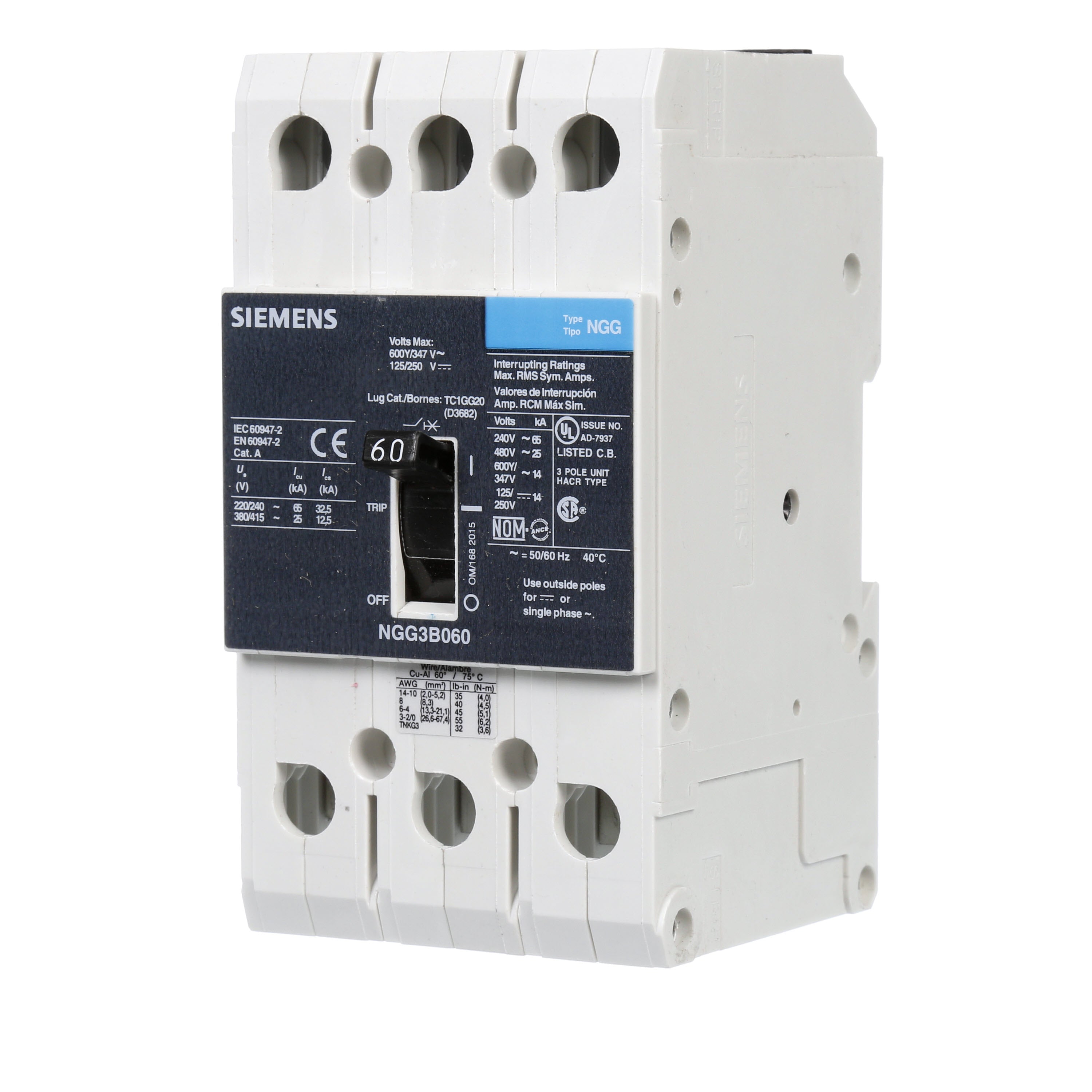

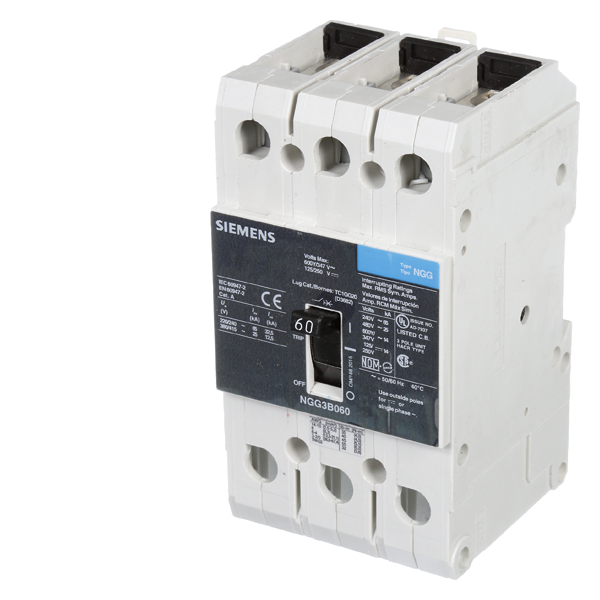

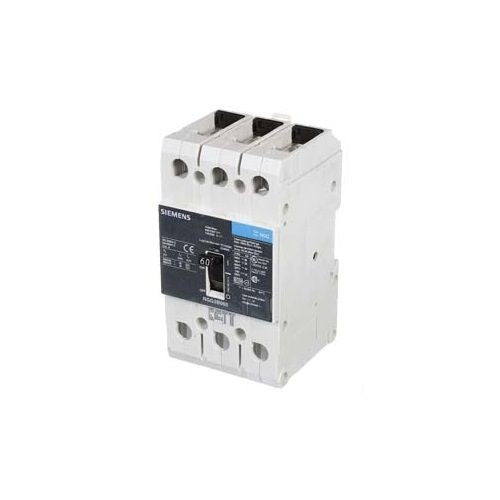

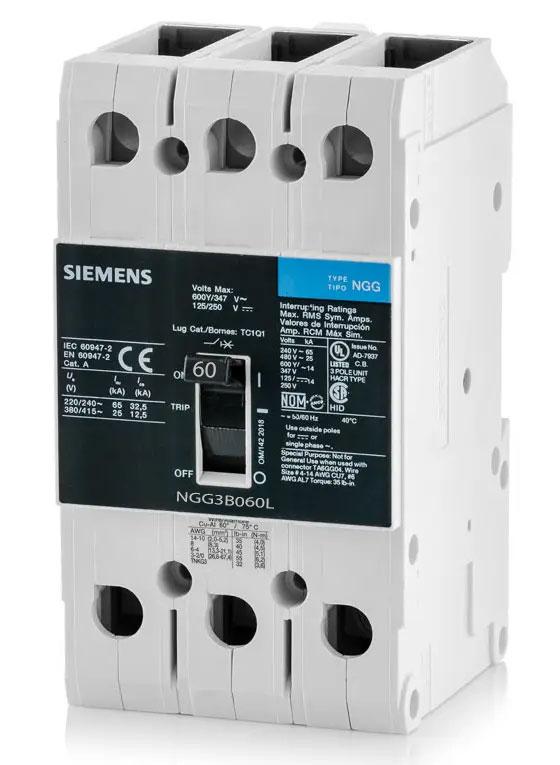

Siemens NGG3B060L Molded Case Circuit Breaker 60A

Product Description

The SIEMENS NGG3B060L is a molded case circuit breaker from the VL Series, designed for industrial and general purpose applications. This 3-pole breaker supports reverse feed applications and can be mounted using screws or a DIN rail. It features LI - Long-Time and Instantaneous trip functions and includes line & load side lug terminals.

• Suitable for reverse feed applications
• Screws or DIN rail mounting
• Feed-thru
• LI - Long-Time and Instantaneous trip functions
• Line & load side lug terminals

Product Highlights

Molded case circuit breaker with thermal magnetic trip, suitable for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGG3B060L
• Country of Origin: Mexico

Technical Specifications

• Part Number: NGG3B060L
• Manufacturer: Siemens Breakers
• Family: VL Series
• Pole: 3
• Amp: 60
• Volt: 600
• Phase: 3
• Category: Molded Case / 3-Pole
• Connection: Feed-Thru
• Type: NGG
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 25kA@480V
• Amperage: 60 Amp
• Applications: For Industrial
• Current: 60 Amp
• Frequency: 50/60 Hz
• Interrupt Rating: 25 kAIC
• Mounting Type: DIN Rail
• Number of Poles: 3 Pole
• Operating Temperature: 40DEGC
• TC Connection: Line and Load Lugs
• Temperature Rating: 40 degrees C
• Trip Type: Thermal Magnetic
• Brand: Siemens
• Sub Brand: NGG
• 12-Digit UPC: 783643413863
• Frame: 125 A
• Frequency Rating: 50/60 Hz
• Number Of Poles: 3
• Voltage Rating: 480 VAC
• Wire Size: 8 to 1/0 AWG, 4 to 2/0 AWG
• Application: Industrial and General Purpose Applications
• Standard & Approvals: CE Marked, HACR Rated
• Amperage Rating: 60 A
• Actuator Type: Handle
• Connection Type: Line/Load Lug
