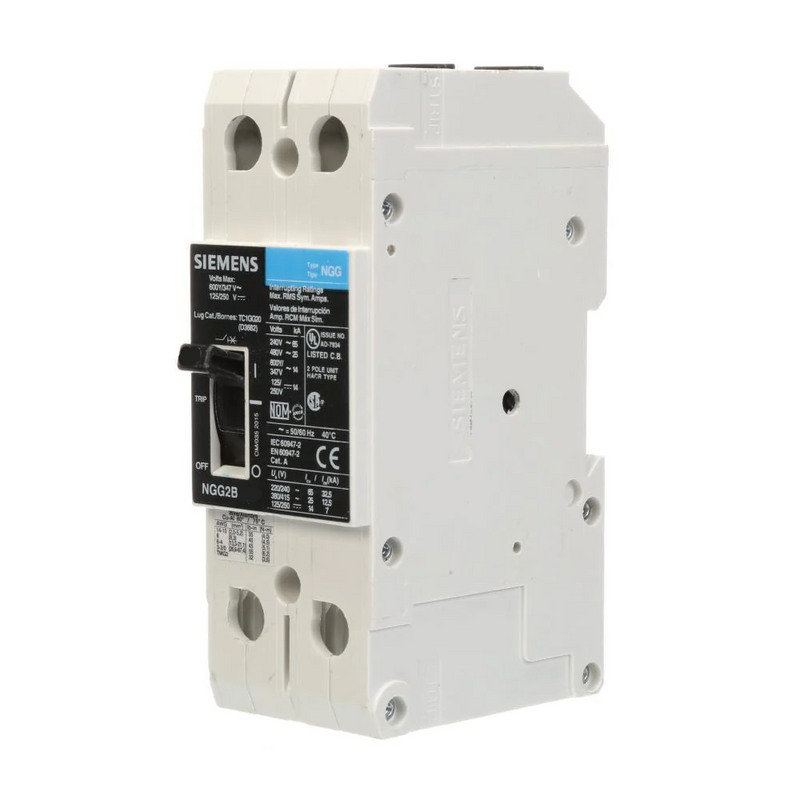

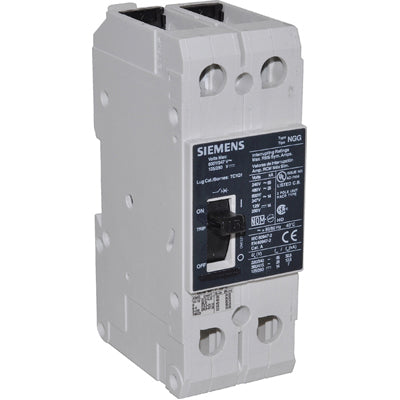

Siemens NGG2B040L Molded Case Circuit Breaker 40A 600V

Product Description

The NGG2B040L is a Siemens molded case circuit breaker, providing reliable protection for commercial and industrial applications. This 2-pole, 40A, 600V circuit breaker features a thermal-magnetic trip unit and a 25kA interrupt rating at 480V. The NGG frame ensures robust performance and is UL listed for safety. Ideal for feed-thru applications, it supports wire sizes from 8 to 1/0 AWG and is suitable for reverse feed installations.

• Designed for reliable protection in commercial and industrial applications.
• Features a thermal-magnetic trip unit.
• UL listed for safety and compliance.

Product Highlights

Siemens NGG2B040L molded case circuit breaker with thermal-magnetic trip, suitable for commercial and industrial use.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGG2B040L
• Country of Origin: Mexico

Technical Specifications

• Part Number: NGG2B040L
• Manufacturer: Siemens
• Brand: Siemens
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Family: VL Series
• Type: NGG
• Voltage: 600
• Amperage: 40
• Phase: 1
• Poles: 2
• AIC rating: 25kA@480V
• Connection: Feed-Thru
• Functions: LI - Long-Time and Instantaneous
• Frame Size: GG Frame
• Protection: Thermal Magnetic
• Certification: UL
• Wire Size: 8 - 1/0 AWS (CU/AL)
• Model Number: NGG2B040L
• Group: Circuit Breakers
• Classification: Molded Case
