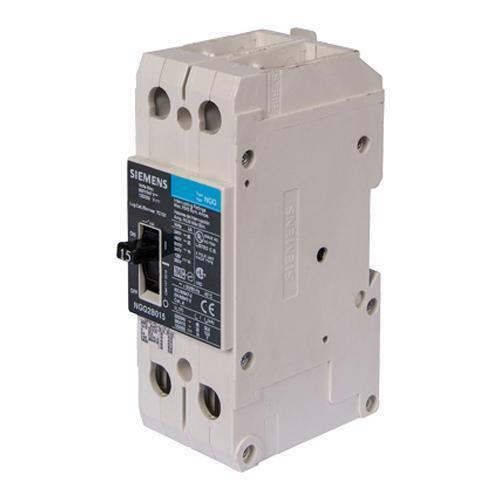

Siemens NGG2B035L Circuit Breaker Molded Case Thermal Magnetic DIN Rail Box Lug 2 Pole 35A

Product Description

The SIEMENS NGG2B035L is a molded case circuit breaker calibrated for 40°C maximum ambient application. Suitable for screw or DIN rail mounting, it is HACR rated and features line and load lugs as standard. This thermal/magnetic circuit breaker is designed for industrial applications.

• NGG 125A Frame Molded Case Circuit Breakers
• Suitable for Screws or DIN Rail Mounting
• HACR Rated

Product Highlights

The SIEMENS NGG2B035L circuit breaker provides reliable circuit protection in industrial settings. It is designed for thermal and magnetic tripping.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGG2B035L
• Country of Origin: Mexico

Technical Specifications

• Actuator Type: Toggle
• Brand: SIEMENS
• Current Rating: 35 A
• Manufacturer Part Number: NGG2B035L
• Mounting Type: DIN Rail Mount
• Number of Poles: 2
• Series: NGG Series
• Terminal Type: Box Lugs
• Type: Thermal/Magnetic
• UPC Code: 783643413672
• Voltage Rating: 480 V
• Application: Industrial Applications
• Frame: NGG
• Standards: UL/CSA/IEC/NOM
• Voltage Maximum: 600V AC
• kA IR 240V AC: 65
• kA IR 480V AC: 25
• kA IR 600V AC: 14
• KA IR VDC: 14
• Terminals: Line and Load Lugs
• Frame Type: GG 125A
• Amperage: 35 Amp
• Frequency: Ac 50-60Hz
• Voltage: 600Y/347V
• Pole: 2 Pole
• Enclosure: Open(None)
• Phase: 3 Phase
• BreakerType: General Purpose Molded Case Circuit Breakers
• Specific: Cable In - Cable Out
• Rated Current: 480Y/277V AC
• Numeric ID: 2510416
• Special Features: HVCR Rated
• Dimensions WxHxD: 2.00x5.40x2.90 in. (51x137x74 mm)
