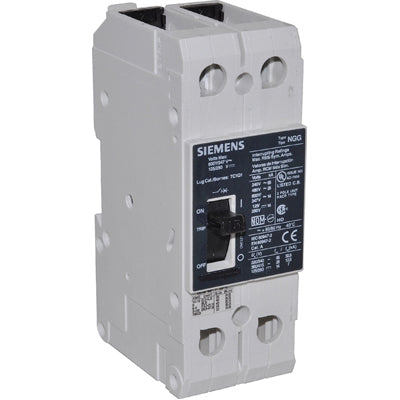

Siemens NGG2B025L Circuit Breaker Molded Case Thermal Magnetic DIN Rail Box Lug 2 Pole 25A

Product Description

The SIEMENS NGG2B025L is a molded case circuit breaker designed for low-voltage power distribution. Featuring a 2-pole configuration, a 25A current rating, and a 480V AC voltage rating, it's suitable for industrial and commercial installations. It utilizes a 125A frame for robust performance and is equipped with lugs for secure cable connections.

• Suitable for Screws or DIN Rail Mounting
• HACR Rated
• Line and Load Lugs Are Included as Standard

Product Highlights

The SIEMENS NGG2B025L circuit breaker provides dependable protection against overloads and short circuits. It is DIN rail mountable for flexible installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGG2B025L
• Country of Origin: MX

Technical Specifications

• Actuator Type: Toggle
• Brand: SIEMENS
• Current Rating: 25 A
• Manufacturer Part Number: NGG2B025L
• Mounting Type: DIN Rail Mount
• Number of Poles: 2
• Series: NGG Series
• Special Features: HVCR Rated
• Terminal Type: Box Lugs
• Type: Thermal/Magnetic
• UPC Code: 783643413658
• Voltage Rating: 480 V
• Amperage: 25 Amp
• Applications: INDUSTRIAL
• Current: 25 Amp
• Interrupt Rating: 25 kAIC
• Operating Temperature: 40DEGC
• TC Connection: Line and Load Lugs
• Trip Type: Thermal Magnetic
• Voltage: 480 Volt
• Sub Brand: Molded Case Circuit Breakers
• Voltage Maximum: 600V AC
• kA IR 240V AC: 65
• kA IR 480V AC: 25
• kA IR 600V AC: 14
• KA IR VDC: 14
• Terminals: Line and Load Lugs
• Frame Type: GG 125A
• Part Number: NGG2B025L
• Manufacturer: Siemens
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• Phase: 1
• AIC rating: 25kA@480V
• Connection: Feed-Thru
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
