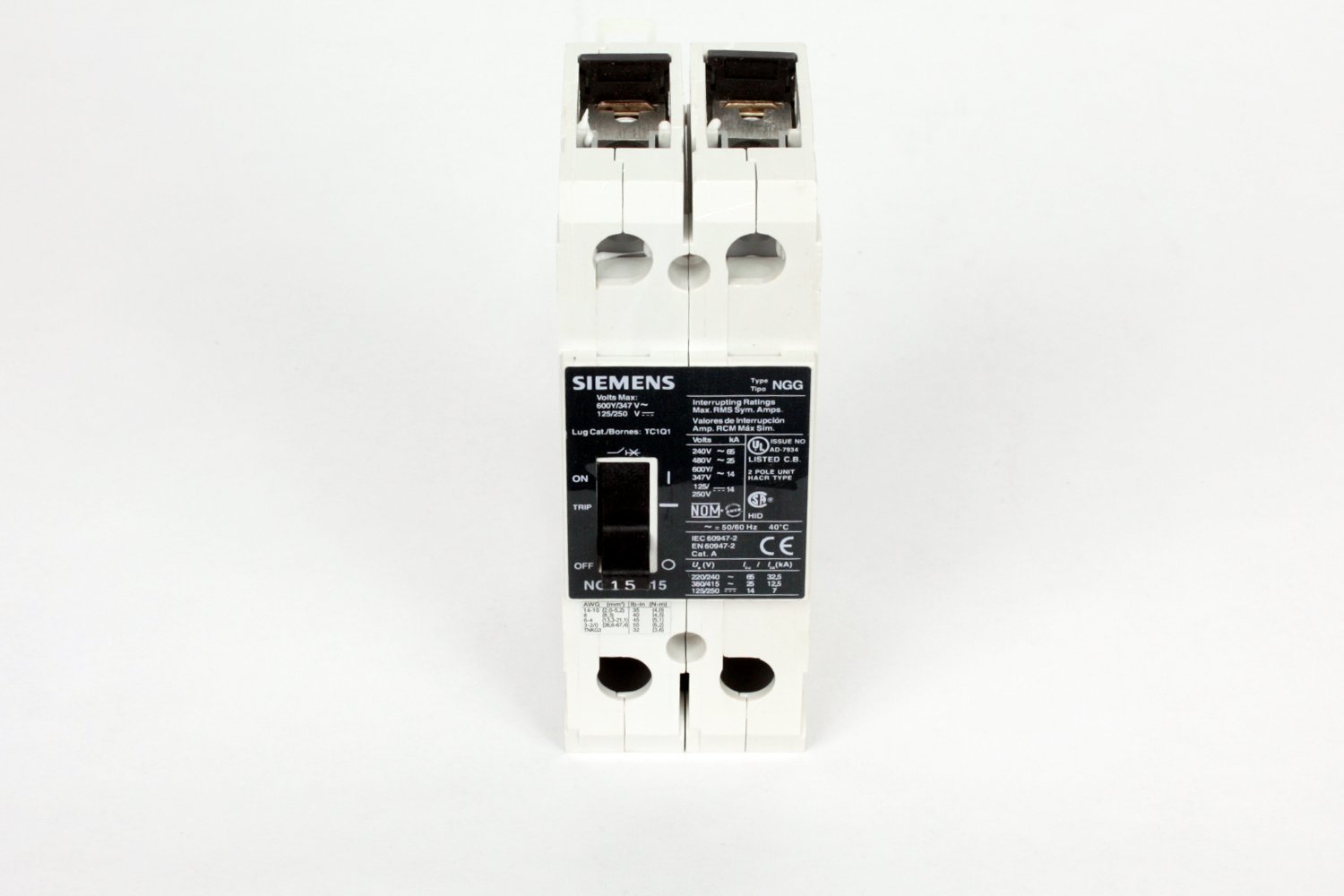

Siemens NGG2B015L Molded Case Circuit Breaker 15A

Product Description

The SIEMENS NGG2B015L is a molded case circuit breaker from the VL Series, designed for 2-pole, 1-phase systems. Rated at 15A and 600V, it offers a 25kA interrupting capacity at 480V. Suitable for reverse feed applications and DIN rail mounting, it includes LI trip functions and lug terminals.

• Feed Thru
• Suitable for reverse feed applications and screws or DIN rail mounting
• Complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals

Product Highlights

Thermal magnetic protection. Includes long-time and instantaneous trip functions. Designed for feed-thru connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGG2B015L

Technical Specifications

• Part Number: NGG2B015
• Manufacturer: Siemens / ITE
• Family: VL Series
• Pole: 2
• Amp: 15
• Volt: 600
• Phase: 1
• Category: Molded Case / 2-Pole
• Connection: Feed-Thru
• Type: NGG
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 25kA@480V
• Dimensions (HxWxD): 2" x 5.4" x 2.8"
