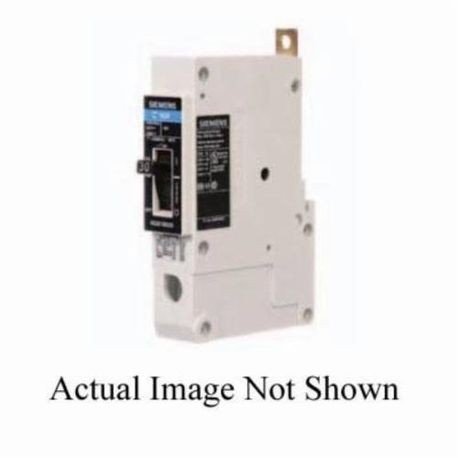

Siemens NGB1B100B Low Voltage Molded Case Circuit Breaker 347 VAC 100 A 14 kA Interrupt 1 Poles

Product Description

Siemens NGB1B100B is a low voltage molded case circuit breaker designed for installation in Siemens panelboards and switchboards. The circuit breaker features interlocking designs for easy installation with a single screw, connecting the breaker line end bus tab to the panelboard bus bar. It is suitable for use in various industrial applications, including lighting panels. The device accommodates HACR ratings and provides Switching Duty ratings for currents between fifteen and twenty amperes, along with HID ratings up to fifty amperes.

• Single pole design for space-saving installation
• Interrupt rating of fourteen kiloamperes
• Temperature rated for fifty degrees Celsius

Product Highlights

This circuit breaker is engineered to ensure robust performance in demanding environments.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Voltage Rating: 347 VAC
• Amperage Rating: 100 A
• Number Of Poles: 1
• Trip Type: LI/Thermal Magnetic
• Frequency Rating: 50/60 Hz
• Frame: NGB
• Phase: 1
• Mounting Type: Panel
• Wire Size: 8 to 1/0 & 8 to 2/0 AWG
• Minimum Order Quantity: 1
