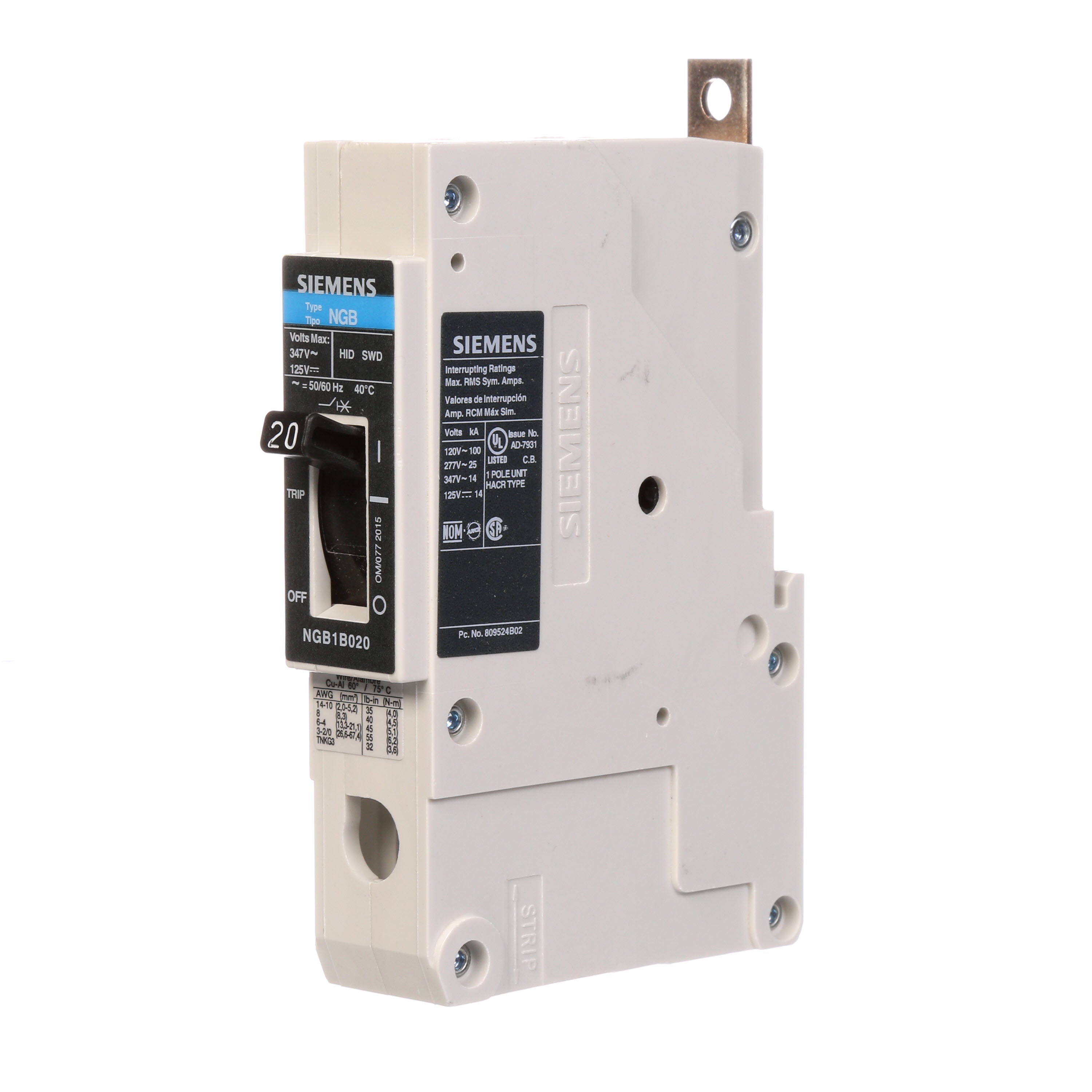

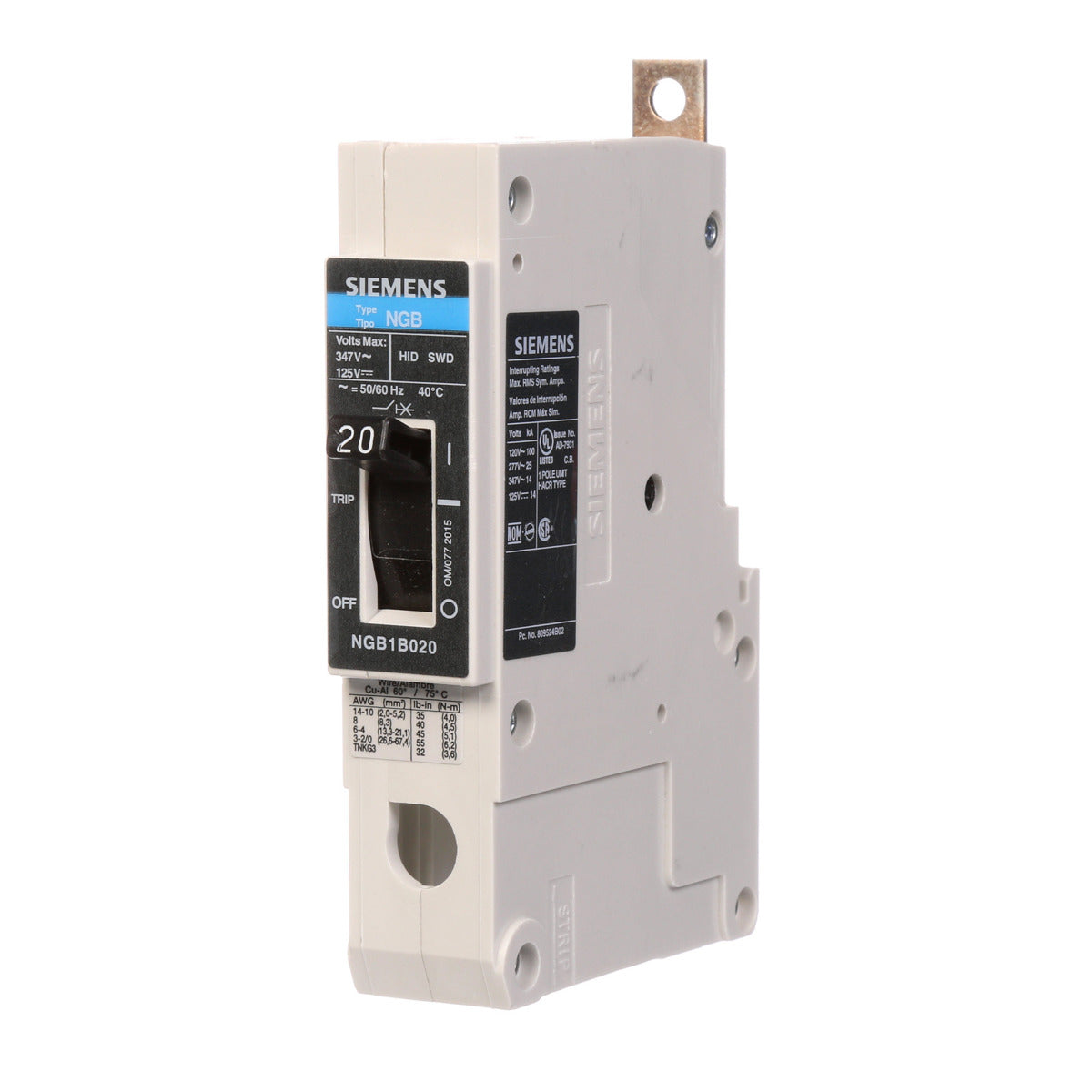

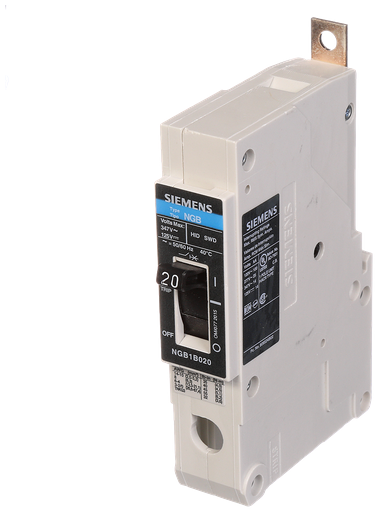

Siemens NGB1B020 Breaker NGB 1P 20A 347V

Product Description

The SIEMENS NGB1B020 is a low voltage molded case circuit breaker designed for panelboard mounting. This 1-pole breaker is rated at 20A and 347V with a 14kAIC interrupting rating. It provides circuit protection in industrial applications and is UL/CSA/IEC/NOM compliant.

• Panelboard mounting
• 1-pole configuration
• Rated for 347VAC

Product Highlights

The SIEMENS NGB1B020 circuit breaker offers reliable circuit protection for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: NGB1B020
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: NGB1B020
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Number of Poles: 1
• Standard: UL/CSA/IEC/NOM
• UPC: 783643553101
• GTIN: 00783643553101
• Amperage: 20 Amp
• Applications: INDUSTRIAL
• Frequency: 50/60 Hz
• Interrupt Rating: 14 kAIC
• Type: NGB
• Voltage: 347 Volt
• Mounting Style: Bolt-On
• Protection: Thermal Magnetic
• Trip Functions: LI - Long-Time and Instantaneous
