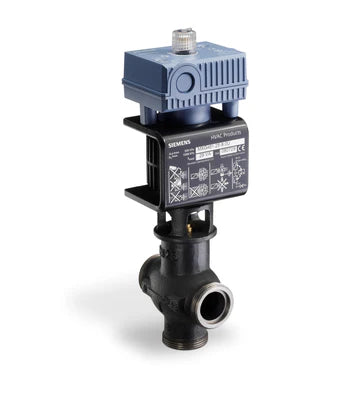

SIEMENS MXG461.32-12U Controller (1-1/4 Inch 14cv Modulating Magnetic Control Valve) Replaces Standard Models

Product Description

Introduce precision to your HVAC systems with the Siemens MXG461.32-12U Magnetic Control Valve, known for its high-performance modulation and durability. Ideal for both hot and cold water applications in closed circuits, this valve ensures optimal functionality with minimal maintenance.

• Fast response time under two seconds.
• High-resolution stroke for accurate control.
• Robust, maintenance-free operation with inductive stroke measurement.

Product Highlights

The Siemens MXG461.32-12U features a fail-safe operation, ensuring the valve remains closed when de-energized. Its modular design facilitates easy integration into various systems. Specifically designed for durability, the valve operates effectively within a wide range of temperatures and pressures, handling up to 44 psi and 248 degrees Fahrenheit.

Product Information

Technical Specifications

• Brand: Siemens
• MPN: MXG461.32-12U
• Size: 1-1/4 inches
• Type: Modulating control valve
• Material: Cast Iron
• Max Temp: 248°F
• Power Consumption: 5W
• Flow Capacity: 14 Cv
• Max Pressure: 44 psi
