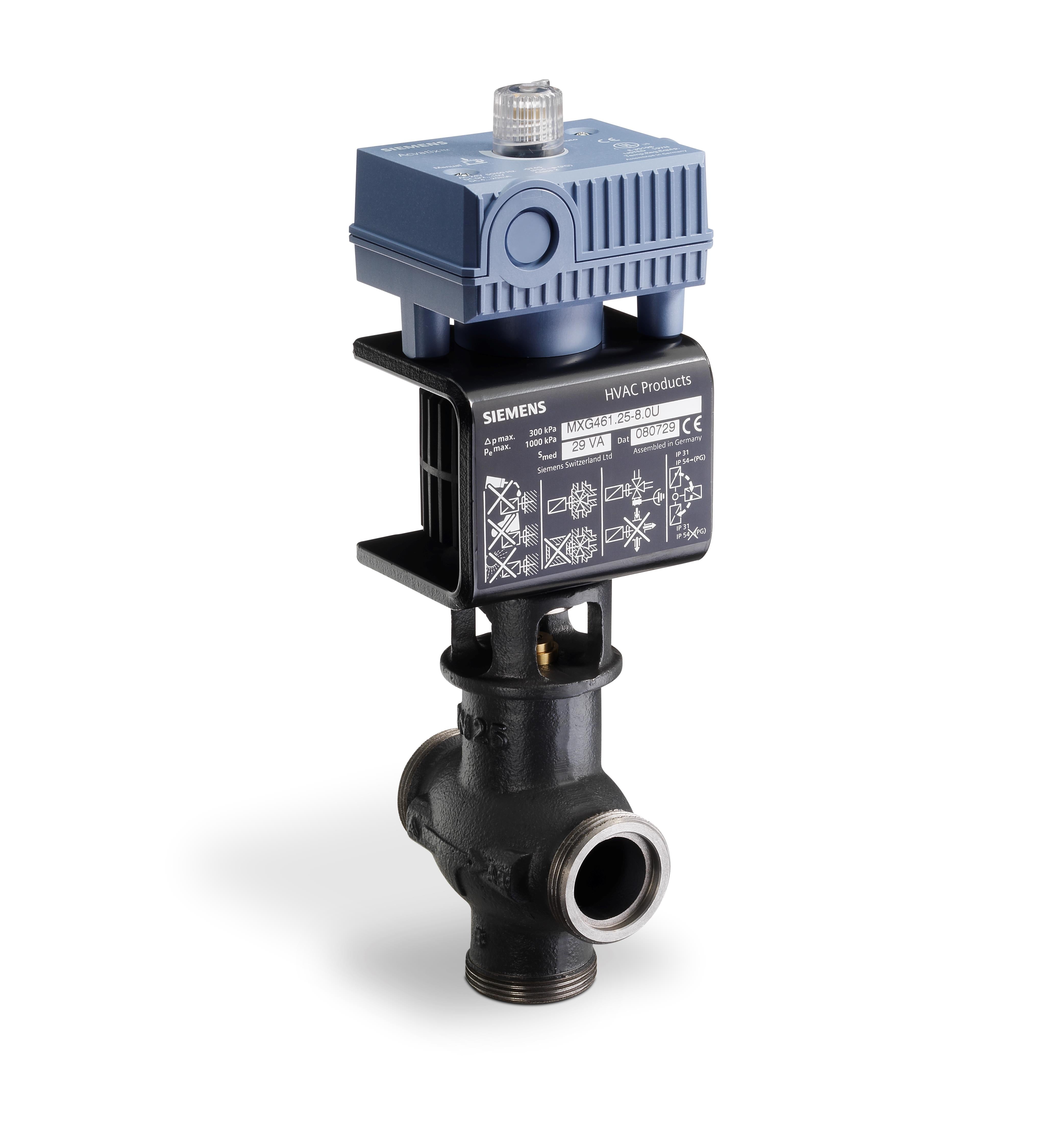

Siemens MXG461.25-8.0U modulating magnetic control valve 5 W (1 in) M3P25G/C1

Product Description

Siemens MXG461.25-8.0U is a modulating magnetic control valve for closed-circuit hot and chilled water HVAC systems. The 1 in NPT cast iron valve provides a flow coefficient (Cv) of 9.3 and is fitted with a factory-mounted magnetic actuator that delivers positioning control and feedback. The actuator supports switch-selectable control signals and consumes 5 W; it features fast positioning and a fail-safe A to AB closed position when de-energized.

• 1 in NPT cast iron 3-way valve, flow coefficient Cv 9.3, suitable for closed hot and chilled water systems
• Factory-mounted magnetic actuator with inductive stroke measurement, fast positioning, and position feedback
• Switch-selectable control signals (0–10 Vdc, 2–10 Vdc, or 4–20 mA), power consumption 5 W, max temp 248 F, max pressure 44 PSI

Product Highlights

1 in NPT 3-way modulating valve, Cv 9.3, 5 W magnetic actuator, switch-selectable control signals, inductive position feedback

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MXG461.25-8.0U
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• MPN: MXG461.25-8.0U
• Product type: Modulating magnetic control valve with magnetic actuator
• Body pattern: 3-way (mixing or straight-through)
• Size: 1 in
• Connection Type: 1 in NPT
• Flow coefficient (Cv): 9.3
• Material: Cast iron
• Application: Hot and chilled water systems (closed circuits)
• Max Temperature: 248 F
• Max Pressure: 44 PSI
• Power Consumption: 5 W
• Control Signal: Switch-selectable 0–10 Vdc, 2–10 Vdc, or 4–20 mA
• Operation: Mixing or straight-through (modulating)
• Unions: NPT unions
• Weight: 12.31 lb
• Fail-safe position: A to AB closed when de-energized
• Stroke resolution: 1:1000
• Position feedback: Inductive stroke measurement (position feedback)
• Alternate Part Numbers: M3P25G/C1, MXG461.258.0U
• Country of Origin: Made in the United States
