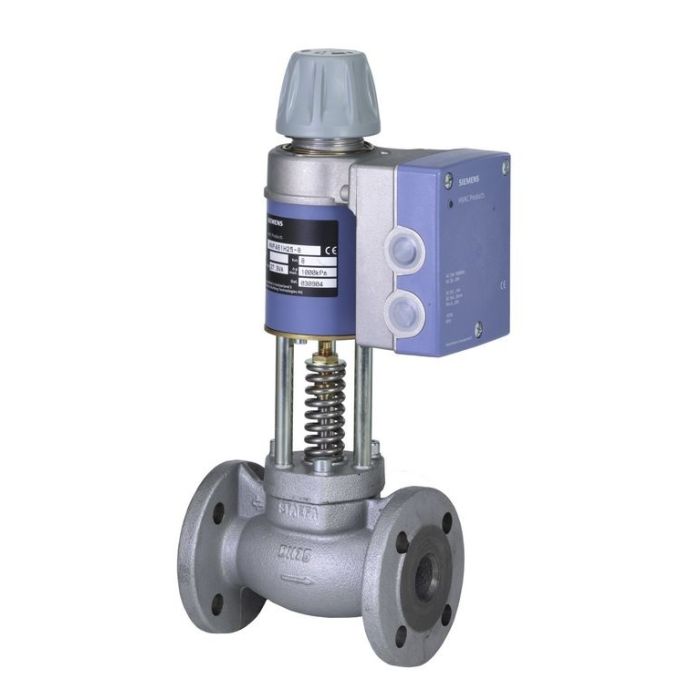

Siemens MVF461H25-8 Modulating Control Valve 1 in.

Product Description

The Siemens MVF461H25-8 is a modulating control valve designed for effective flow control in steam systems. This valve features a robust construction with a stainless steel seat and cast iron body, ensuring durability and reliability in various applications.

• Fast positioning time of less than two seconds
• High rangeability for precise control
• Spring return mechanism that fails closed when de-energized

Product Highlights

This valve is suitable for hot water and steam applications, offering both selectable equal percentage and linear flow characteristics. It operates effectively in temperatures ranging from thirty-four degrees Fahrenheit to three hundred fifty-six degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Part Number: MVF461H25-8

Technical Specifications

• Service: Hot Water and Steam
• Close-Off Pressure: 145 psi
• Flow Characteristics: Selectable Equal Percentage or Linear
• Operating Temperature: 34 F to 356 F (1 C to 180 C)
• Weight: 20.26 lbs
• Dimensions: 9.9 inches (Length) x 18 inches (Width) x 6.95 inches (Height)
