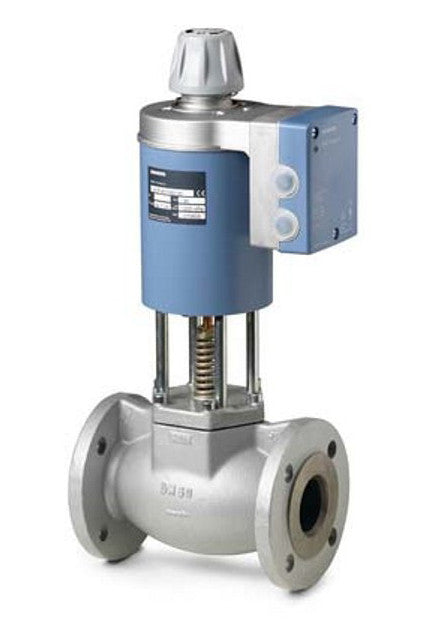

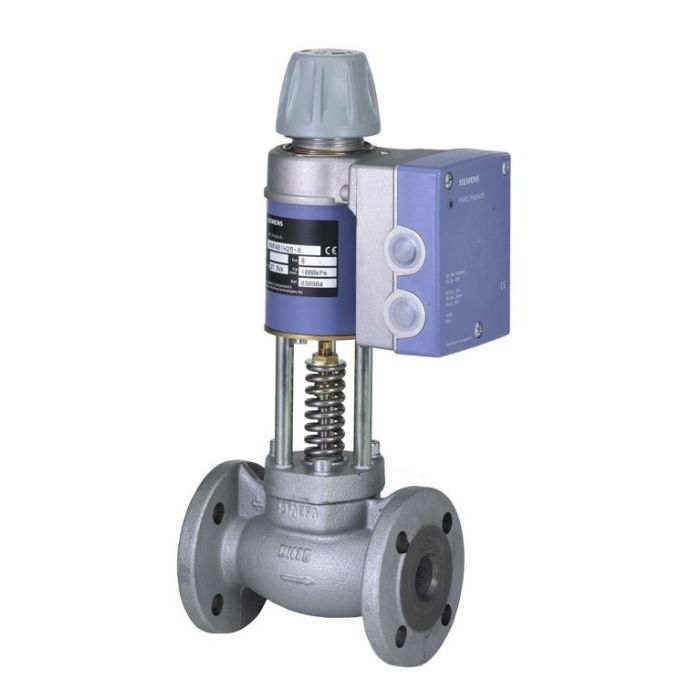

Siemens MVF461H15-3 Modulating Control Valve 24 VAC 1/2 in. (3.5 Cv)

Product Description

Siemens MVF461H15-3 is a modulating magnetic control valve for hot water and steam applications, featuring a 3.5 Cv flow coefficient and 1/2 inch flanged connections. The valve provides positioning control with position feedback and a spring return function. It accepts 0 to 10 V control input and is actuated by a 24 VAC magnetic actuator, with stainless steel trim and a cast iron body rated for high-temperature service.

• 1/2 in. flanged 2-way magnetic valve, Cv 3.5 (kvs 3) for hot water and steam
• Actuated by 24 VAC magnetic actuator; control signal 0 to 10 V (supports 0/2...10 V or 0/4...20 mA)
• Stainless steel seat/trim, cast iron body, positioning control, position feedback and spring return

Product Highlights

1/2 in. flanged magnetic modulating valve, 3.5 Cv, 24 VAC actuation, stainless steel trim, cast iron body

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MVF461H15-3
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: MVF461H15-3
• Product Type: Modulating magnetic control valve
• Valve Size: 1/2 in (DN15)
• Valve Configuration: 2-way
• Flow Coefficient (Cv): 3.5
• Kvs: 3
• Body Material: Cast iron
• Seat/Trim Material: Stainless steel
• Mounting / End Connection: Flange (without flange kits)
• Close-off Pressure: 145 psi
• Pressure Rating: PN16
• Actuator Type: Magnetic actuator / solenoid
• Supply Voltage: 24 VAC
• Control Signal: 0 to 10 V (accepts DC 0/2...10 V or 0/4...20 mA)
• Functions: Positioning control; position feedback signal; spring return; manual control
• Operating Temperature: 34 F to 356 F (1 C to 180 C)
• Ambient Temperature Range: 23 F to 113 F
• Weight: 16.53 lb
• Certifications: UL listed
• Country of Origin: Germany
• Flange Kits Included: Not included
• Package Quantity: 1
