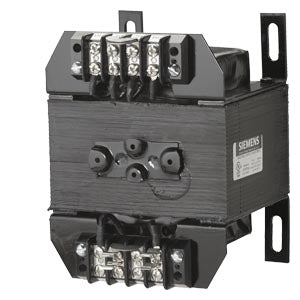

Siemens MT0500G Control Transformer 500VA 208/230/460-11

Product Description

The SIEMENS MT0500G is a control transformer with 500VA power. It features a primary voltage of 208/230/460 VAC and a secondary voltage of 115 VAC, operating at 50/60 Hz. Designed for industrial control applications, it ensures reliable power conversion. The transformer is built with a screw terminal connection type and a slotted mounting type.

• 500VA Power Rating
• Primary Voltage: 208/230/460 VAC, Secondary Voltage: 115 VAC
• Screw Terminal Connection

Product Highlights

The SIEMENS MT0500G is a robust control transformer providing efficient power conversion for industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0500G

Technical Specifications

• Part #: MT0500G
• Category: Control Transformer
• Brand: Siemens
• Power Rating: 500 VA
• MPN: MT0500G
• Connection Type: Screw Terminal
• Enclosure Type: IP20
• Frequency Rating: 50/60 Hz
• Insulation: Class 130 deg C
• Mounting Type: Slotted
• Phase: 1 ph
• Primary Voltage: 208/230/460 VAC
• Secondary Voltage: 115 VAC
• Temperature Rating: 55 deg C
• Type: Class MT
• Power - Max: 500VA
• Termination Style: Terminal Block
• Voltage - Primary: 208V, 230V, 460V
• Voltage - Secondary (Full Load): 115V
• Manufacturer Part Number: MT0500G
