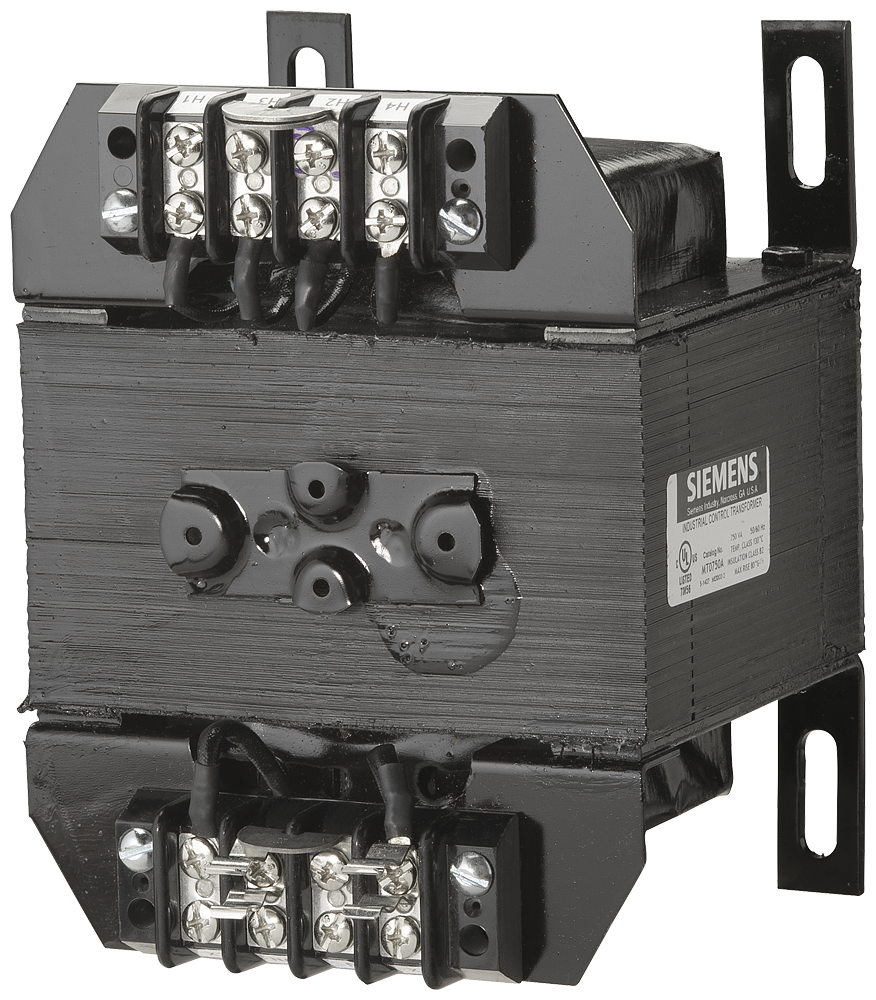

Siemens MT0500A Control Transformer 500 VA 240 x 480 VAC Primary 120 VAC Secondary

Product Description

The Siemens MT0500A is a control power transformer designed for industrial applications. It features a primary voltage of 240 x 480 VAC and a secondary voltage of 120 VAC. This transformer has a power rating of 500 VA and operates at a frequency of 60 Hz, making it suitable for various industrial settings.

• Power Rating: 500 VA
• Input Voltage: 240/480 VAC
• Output Voltage: 120 VAC

Product Highlights

This transformer is highly efficient for power distribution. It includes features like screw terminal connections for easy wiring and epoxy encapsulation for enhanced protection against moisture and dust.

Product Information

Standard Information

• Catalog Number: MT0500A
• Brand: Siemens
• Country of Origin: Mexico

Technical Specifications

• Power Rating: 500 VA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Frequency: 60 Hz
• Temperature Rise: 55 Deg C
• Weight: 19 lb
• Dimensions: 14.3 in L x 10.5 in W x 10.8 in H
• Mounting Type: Panel
• Connection Type: Screw Terminal
• Insulation Class: 130 Deg C
