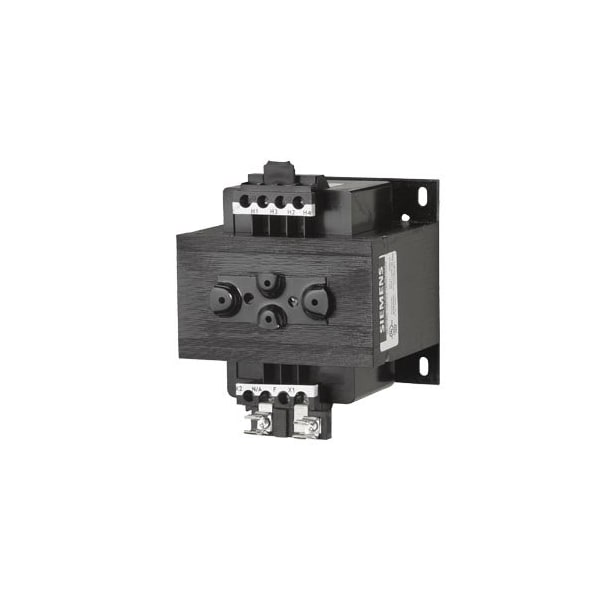

Siemens MT0350G Control Power Transformer 350 VA

Product Description

The Siemens MT0350G control power transformer, Class MT, features a 208/230/460 V AC primary and a 115 VAC secondary. This 350 VA power transformer operates at 50/60 Hz and is designed with screw terminal connections for surface mounting. It has Class 130 deg C insulation and an open enclosure, suitable for temperatures from -4 to 104 deg F.

• Enclosed coils protect against moisture, dust, dirt and industrial contaminants.
• Factory mounted fuse clips for integral fusing on the secondary side.
• Integrally finger-safe terminals protect against electrical creepage.

Product Highlights

The Siemens MT0350G is a robust control power transformer designed for industrial environments, offering reliable performance and protection against environmental factors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0350G
• Country of Origin: Mexico

Technical Specifications

• Enclosure Type: Open
• Insulation: Class 130 deg C
• Primary Voltage: 208/230/460 V AC
• Temperature Rating (Degrees F): -4 to 104 deg F
• Type: Class MT
• Power - Max: 350VA
• Mounting Type: Chassis Mount
• Termination Style: Terminal Block
• Voltage - Secondary (Full Load): 115V
• Frequency Rating: 50/60 Hz
• Terminal Type: Screw
