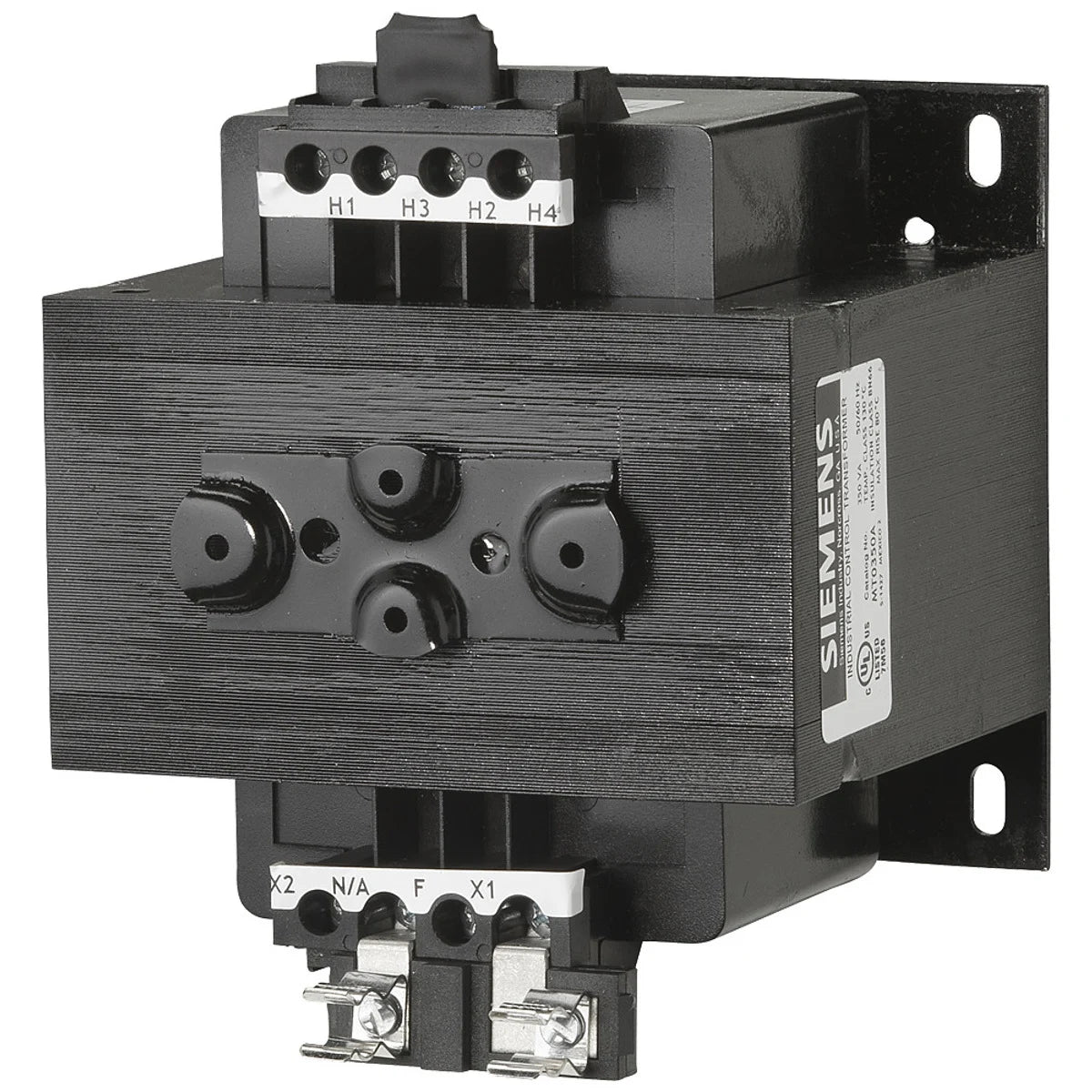

Siemens MT0350A Control Power Transformer, 240/480 VAC Primary, 120 VAC Secondary, 350 VA Power Rating

Product Description

The Siemens MT0350A is a control power transformer with a primary voltage range of two hundred forty to four hundred eighty volts, and a secondary output of one hundred twenty volts. It is designed for domestic applications and has a power rating of three hundred fifty volt-amperes.

• Suitable for both 50 Hz and 60 Hz operations
• Features integrally molded barriers to protect against electrical creepage
• Terminals are designed to minimize the chance of breakage during installation

Product Highlights

This transformer offers robust design and high efficiency, making it ideal for various electrical applications.

Product Information

Standard Information

• Catalog Number: MT0350A
• Manufacturer: Siemens
• Country of Origin: Mexico

Technical Specifications

• Power Rating: 350 VA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Phase: 1
• Frequency Rating: 50/60 Hz
• Maximum Amperage Rating: 0.29 A
• Dimensions: 4.47 in H x 4.5 in W x 5.6 in D
• Insulation: Epoxy
• Enclosure Type: IP20
