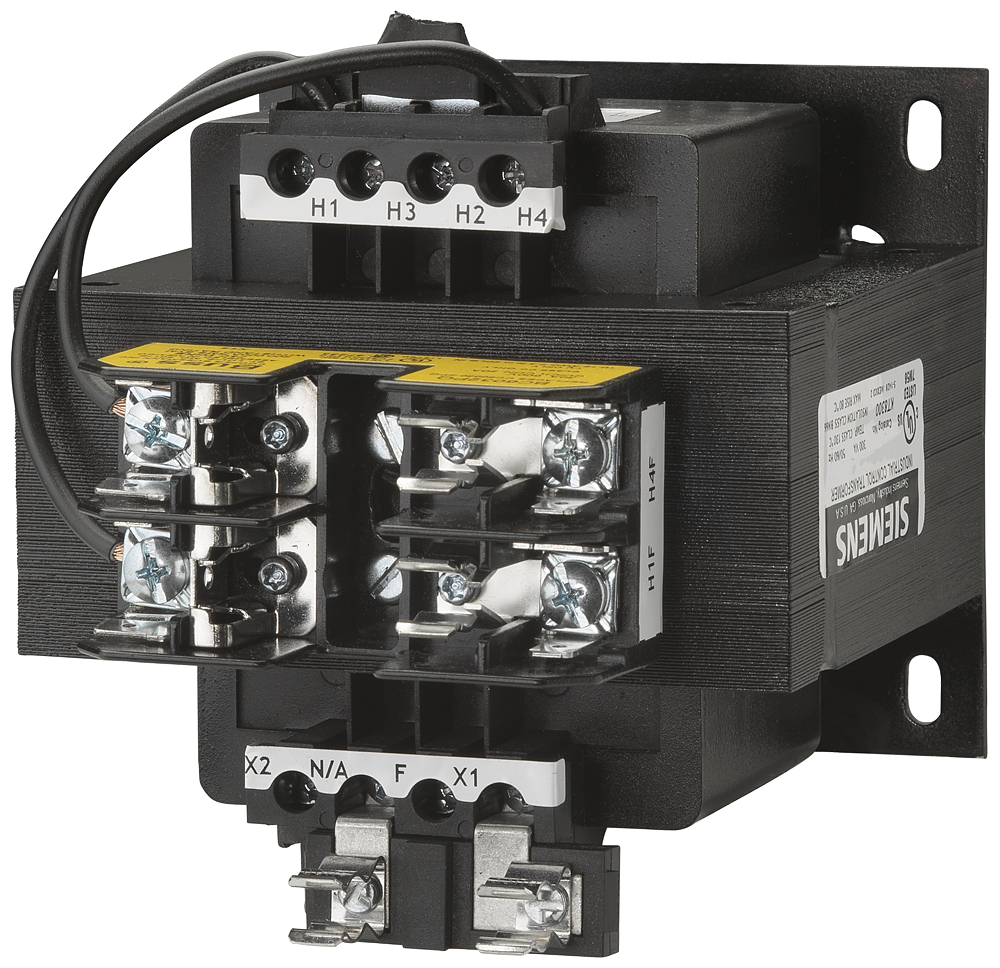

Siemens MT0300F Control Power Transformer 300VA

Product Description

The SIEMENS MT0300F control power transformer provides reliable step-down voltage conversion. Rated at 300VA, it steps down voltage from 208/277V to 120V. It isolates control circuits from power and lighting circuits, reducing noise interference. Designed for industrial and domestic applications, this robust transformer is suitable for automated machinery and control circuits.

• Enclosed coils protect against moisture, dust, dirt and industrial contaminants.
• Integrally finger safe terminals protect against electrical creep age.
• Two jumper links are standard with all transformers which can be wired for dual primary voltages.

Product Highlights

This Siemens control power transformer is designed for durability and safety, ideal for use in control panels, HVAC systems, and other power distribution setups.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0300F
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MT0300F
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Mexico
• Made in USA: No
• UPC: 754554027258
• GTIN: 00754554027258
• Phase: 1
• UNSPSC: 39121026
• Application: Industrial and Domestic Applications
• Power Rating: 300
• Mounting Type: Surface
• Enclosure Type: Open
• Frequency Rating: 50/60
• Temperature Rating: 104
• Type: Robust Design
• Series: Class MT
• Includes: Secondary Fuse Clip
• Primary Voltage: 208/277
• Secondary Voltage: 120
• Connection Type: Screw-Type Terminals
• Number of Phases: 1 Phase
• Part Status: Active
• Power - Max: 300VA
• Termination Style: Terminal Block
