Siemens MT0300A Class MT Control Power Transformer 300 VA 240/480 VAC Primary 120 VAC Secondary

Product Description

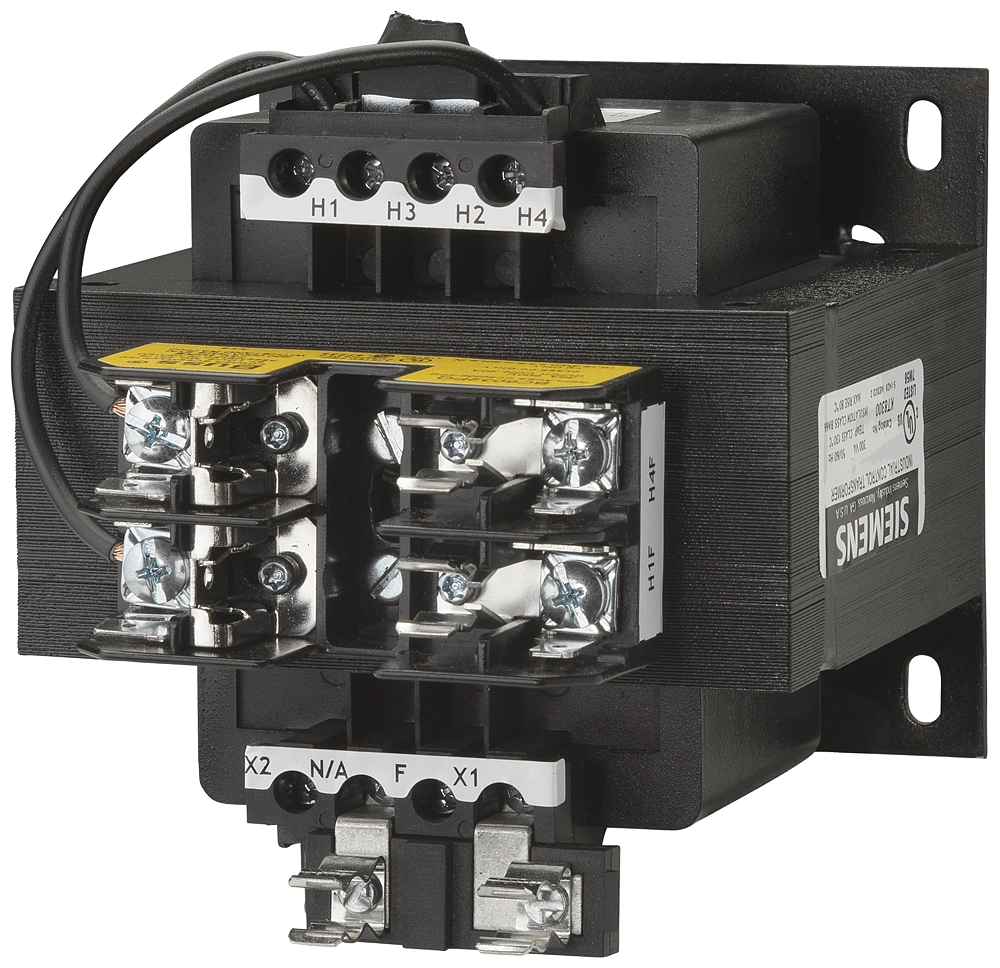

The Siemens MT0300A is a control power transformer with a primary voltage of two hundred forty by four hundred eighty VAC and a secondary voltage of one hundred twenty VAC. The unit provides a power rating of three hundred VA and is designed for domestic applications.

• Primary voltages: 240 VAC, 480 VAC
• Secondary voltage: 120 VAC
• Temperature rating: 55 degrees Celsius

Product Highlights

This product features durable construction suitable for various environments. It is easy to install and integrates well into existing electrical systems.

Product Information

Standard Information

• Brand: Siemens
• MPN: MT0300A

Technical Specifications

• Power Rating: 300 VA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120 VAC
• Frequency Rating: 50/60 Hz
• Phase: 1
• Enclosure Type: IP20
• Temperature Rating: 55 degrees Celsius
• Dimensions: 4.47 inches high x 4.5 inches wide x 4.87 inches deep
• Weight: 10.45 lb
• Connection Type: Screw
• Country of Origin: Mexico
