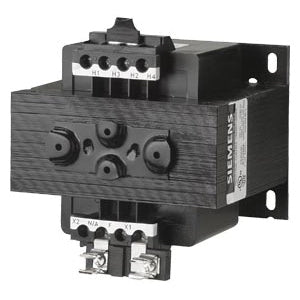

Siemens MT0250G Control Power Transformer 250VA

Product Description

The Siemens MT0250G is a control power transformer with a power rating of 250VA. It supports primary voltages of 208/230/460 VAC and a secondary voltage of 115 VAC, operating at 50/60 Hz. Designed for domestic applications, it features screw connections and surface mounting within an open enclosure.

• Epoxy encapsulated to seal transformer coils against moisture and contaminants.
• Fuse clips factory mounted for integral fusing on the secondary side.
• Laminations built with silicon steel to minimize core losses.

Product Highlights

This Siemens control power transformer is designed for reliable performance in various industrial environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0250G
• Country of Origin: MEX

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: MT0250G
• Power Rating: 250 VA
• Application: Domestic Applications
• Primary Voltage: 208/230/460 VAC
• Secondary Voltage: 115 VAC
• Power: 250 VA
• Frequency: 50/60 Hz
• Phase: 1 ph
• Connection: Screw Connection
• Mounting: Surface Mounting
• Enclosure: Open Enclosure
• Temperature Range: -4 to 104 deg F
• Category: Control Transformer
