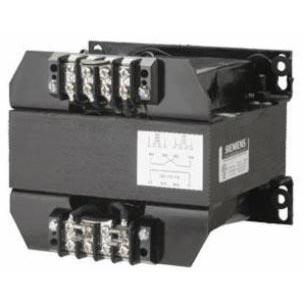

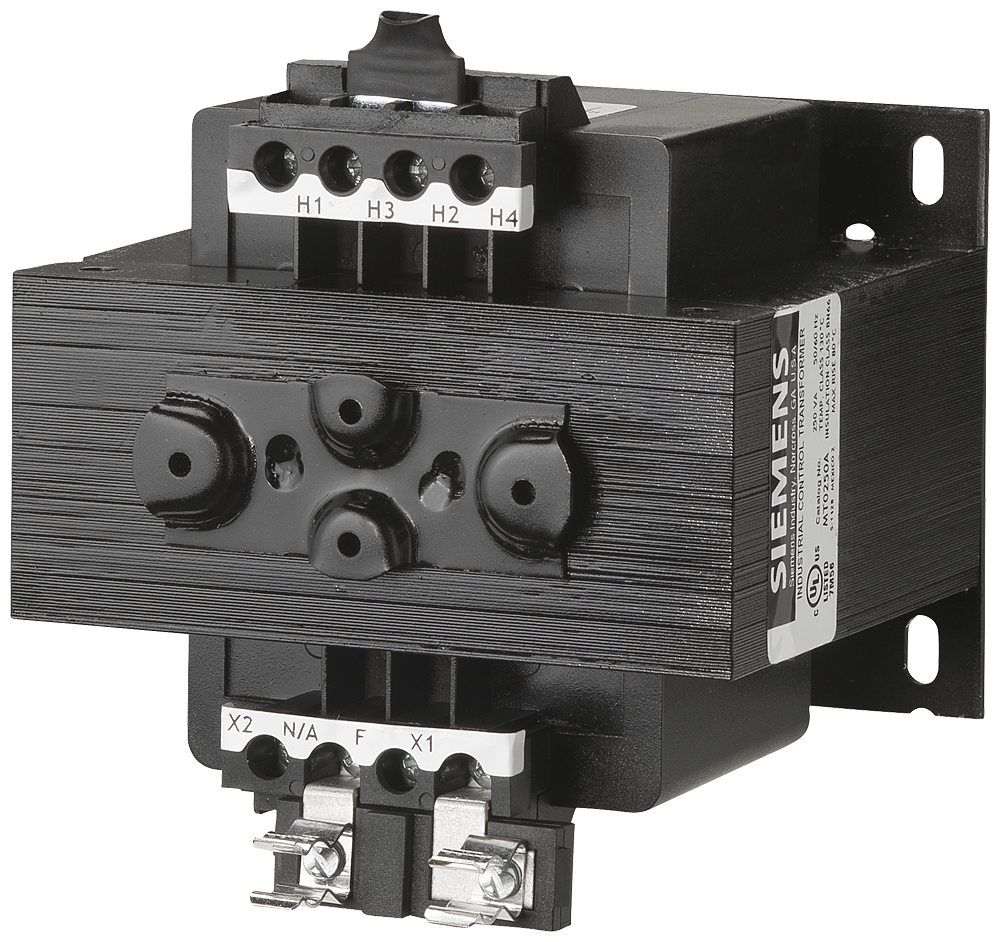

Siemens MT0250A Class MT Control Transformer 240 x 480 VAC Primary 120 VAC Secondary 250 VA

Product Description

The Siemens MT0250A is a control power transformer designed for industrial use, featuring a primary voltage rating of two hundred forty by four hundred eighty VAC and a secondary voltage of one hundred twenty VAC. This transformer offers a power rating of two hundred fifty VA, suitable for various domestic applications.

• Input voltage: 240/480 VAC
• Output voltage: 120 VAC
• Frequency: 60 Hz

Product Highlights

This transformer is engineered to provide reliable performance and safety in demanding conditions. The epoxy encapsulated design ensures protection against moisture, dust, and other contaminants.

Product Information

Standard Information

• Brand: Siemens
• MPN: MT0250A

Technical Specifications

• Power Rating: 250 VA
• Input Voltage: 240/480 V
• Output Voltage: 120 V
• Frequency Rating: 60 Hz
• Amperage: 0.29 A
• Phase: 1 Phase
• Mounting Type: Panel
• Dimensions: 8.3 in L x 8.3 in W x 8.6 in H
• Weight: 9.75 lb
• Enclosure Type: Open
• Standard Approvals: UL Listed, CSA Certified
• Country of Origin: Mexico
