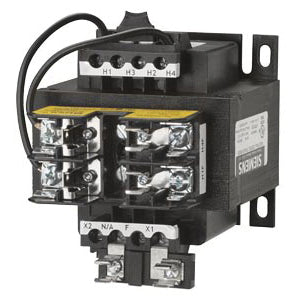

Siemens MT0150I Control Power Transformer 150 VA

Product Description

The Siemens MT0150I control power transformer, Class MT, features a 380/400/415 VAC primary and a 110 x 220 VAC secondary. This 150 VA power transformer operates at 50/60 Hz and is designed for surface mounting. The open enclosure measures 3.42 in H x 3.75 in W x 4.27 in D and is suitable for use in a range of applications.

• Epoxy encapsulated to seal transformer coils against environmental contaminants
• Fuse clips factory mounted for integral fusing on the secondary side
• Laminations built with silicon steel to minimize core losses

Product Highlights

The Siemens MT0150I is a robustly designed control power transformer with a focus on protection and efficient operation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0150I

Technical Specifications

• Brand: Siemens
• Part Number #: MT0150I
• SKU #: 290998
• UNSPSC: 39121026
• Category: Transformers
• Power Transformers: Power Transformers
• Manufacturer: Siemens
• Series: -
• Packaging: Box
• Part Status: Active
• Voltage - Primary: 380V, 400V, 415V
• Voltage - Secondary (Full Load): 220V, 110V
• Power - Max: 150VA
• Mounting Type: Chassis Mount
• Termination Style: Terminal Block
• Center Tap: No
