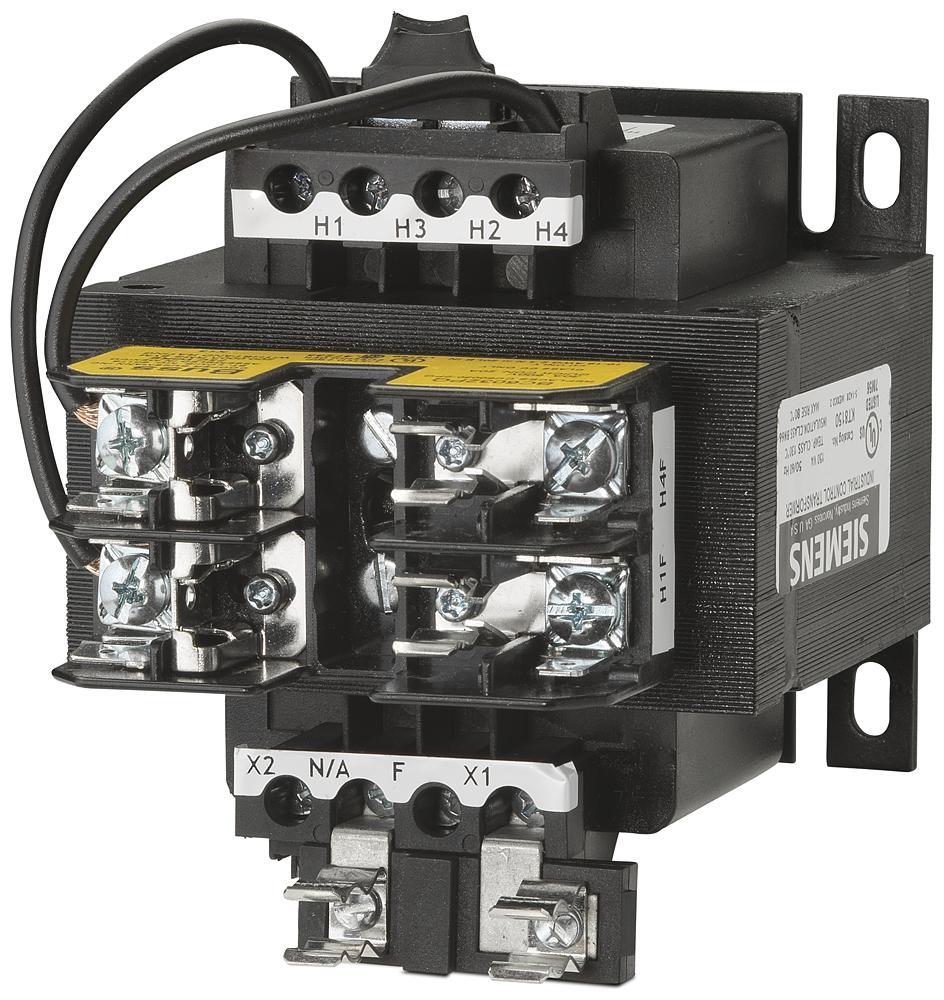

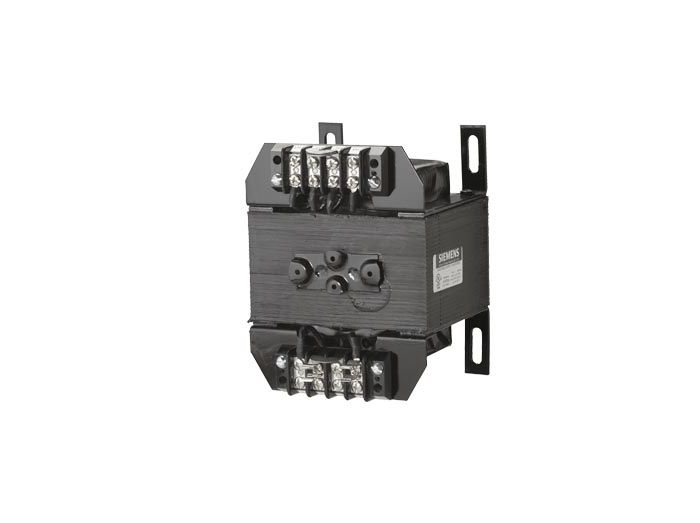

Siemens MT0150G Industrial Power Transformer 150VA

Product Description

The Siemens MT0150G industrial power transformer is designed for domestic use, with primary voltage options of 208/230/460V and a secondary voltage of 115V, operating at 50/60Hz. This transformer is rated at 150VA and features enclosed coils for protection against environmental contaminants. It is suitable for various industrial applications.

• Enclosed coils protect against moisture, dust, dirt, and industrial contaminants.
• Factory-mounted fuse clips for integral fusing on the secondary side.
• Integrally finger-safe terminals protect against electrical creepage.

Product Highlights

This Siemens power transformer provides reliable power conversion in industrial settings, ensuring protection and efficient performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0150G
• Country of Origin: United States

Technical Specifications

• Primary Volts: 208/230/460
• Frequency: 50/60Hz
• Secondary Volts: 115
• Rating: 150VA
• Model Number: MT0150G
• Insulation: Class 130 deg C
• Primary Voltage: 208/230/460 V AC
• Type: Class MT
• Mounting type: Slotted
• Voltage - Primary: 208V, 230V, 460V
• Voltage - Secondary (Full Load): 115V
• Power - Max: 150VA
• Mounting Type: Chassis Mount
• Termination Style: Terminal Block
• Phase: 1
• VA Rating: 150 VA
• Secondary Voltage: 115 V
• Termination: Screw
• Operating Temperature: -4-104 °F
• Approvals: CSA, UL
• Applications: For Domestic Usage
• Connection Type: Screw-Type Terminals
• Enclosure: IP20
• Input Voltage: 208/230/460 V
• Insulation Type: Epoxy
• IP Rating: IP20
• Number of Phases: 1 Phase
• Output Voltage: 115 V
• Standard: CSA,UL,ANSI
• Temperature Rating: 55 C
