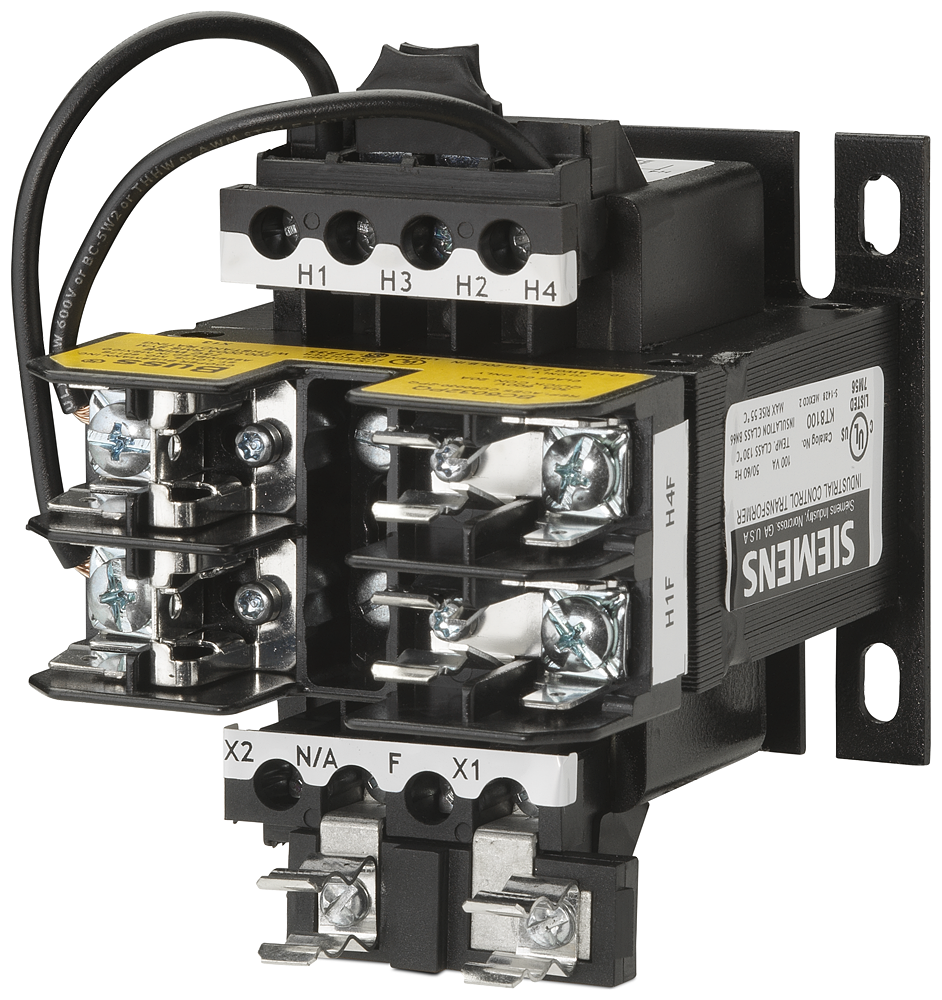

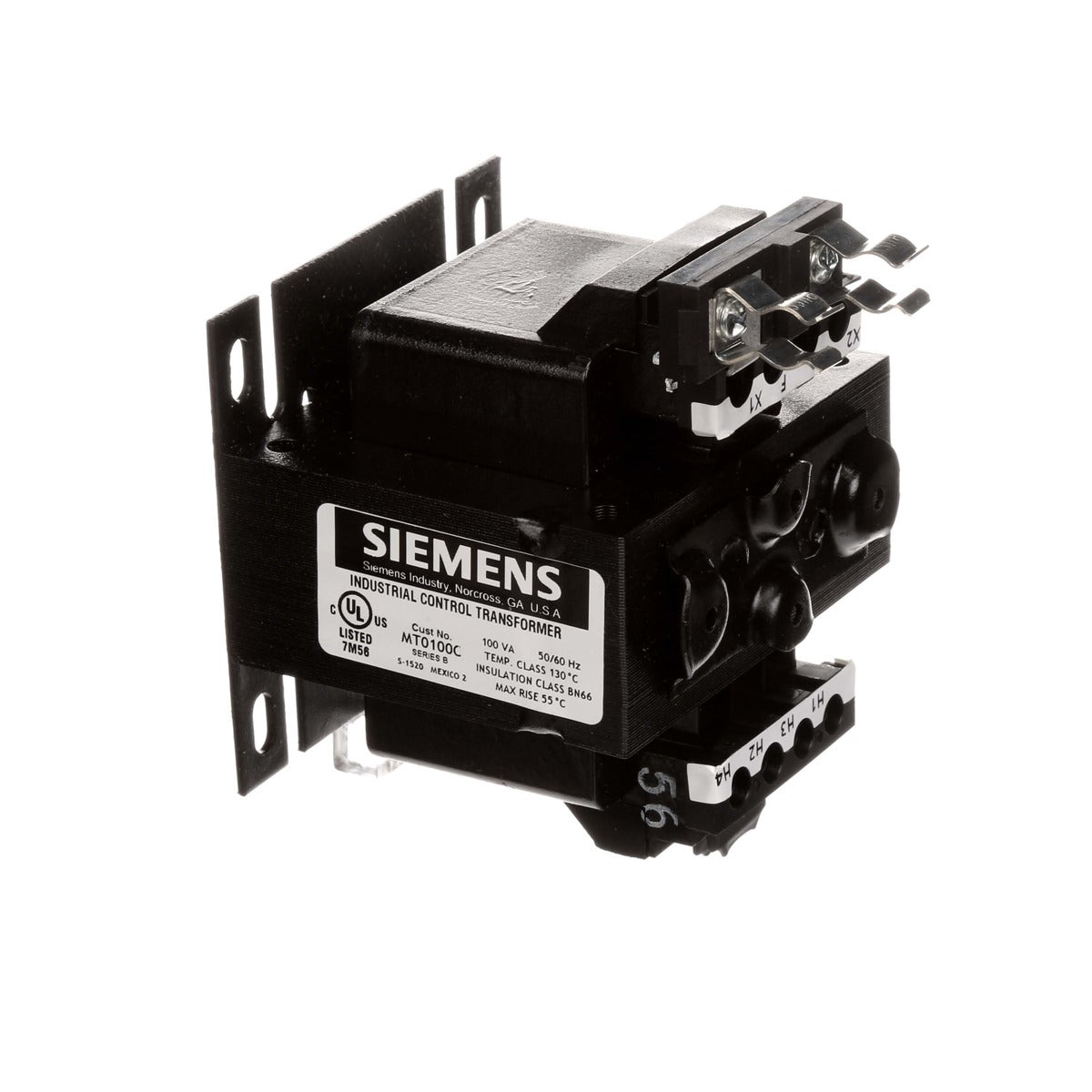

Siemens MT0100J Control Power Transformer 100 VA

Product Description

The Siemens MT0100J control power transformer has a 100 VA power rating and primary voltage options of 208/230/460, 200/220/440, and 240/480 VAC. Secondary voltage options include 24 x 115, 23 x 110, and 25 x 120 VAC. It is epoxy encapsulated to protect against environmental contaminants. Fuse clips are factory mounted for integral fusing on the secondary side.

• Epoxy encapsulation seals against moisture, dust, and contaminants.
• Features integrally molded barriers between terminals for electrical creepage protection.
• Includes factory-mounted fuse clips for secondary-side fusing.

Product Highlights

The Siemens MT0100J is a robust control power transformer with multiple voltage options and environmental protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0100J
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MT0100J
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Mexico
• UPC: 754554026893
• GTIN: 00754554026893
• Primary Voltage: 208/230/460, 200/220/440, 240/480 VAC
• Secondary Voltage: 24 x 115, 23 x 110, 25 x 120 VAC
• Frequency Rating: 50 to 60 Hz
• Power Rating: 100 VA
• Insulation Class: 130 Deg C
• Terminal Type: Screw
• Temperature Rise: 55 Deg C
• Applicable Standard: ANSI, NEMA
• Approval: CUL, CSA
• Mounting Type: Surface
• Enclosure Type: Open
• Temperature Rating: -4 to 104 °F
• Type: Class MT
• Phase: 1 pH
• IP Rating: IP20
