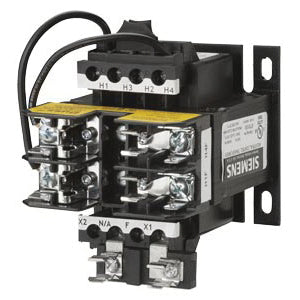

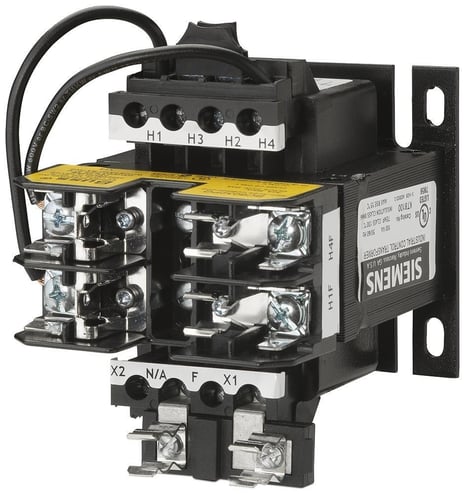

Siemens MT0100I Control Power Transformer 100VA

Product Description

The Siemens MT0100I is a 100VA power transformer with primary voltage of 380V, 400V, 415V and secondary voltage of 220V, 110V designed for chassis mount. It completely seals the transformer coils against moisture, dust, dirt and industrial contaminants.

• Epoxy encapsulated completely seals the transformer coils against moisture, dust, dirt and industrial contaminants
• Fuse clips factory mounted for integral fusing on the secondary side to save panel space and wiring time
• Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency

Product Highlights

The Siemens MT0100I power transformer is designed for maximum protection in hostile and industrial environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0100I
• Country of Origin: MX

Technical Specifications

• Category: Transformers
• Power Transformers: Power Transformers
• Center Tap: No
• Manufacturer: Siemens
• Power - Max: 100VA
• Packaging: Box
• Mounting Type: Slotted
• Part Status: Active
• Termination Style: Terminal Block
• Voltage - Primary: 380V, 400V, 415V
• Size / Dimension: 96.01mm L x 84.07mm W
• Voltage - Secondary (Full Load): 220V, 110V
• Height - Seated (Max): 70.87mm
• Brand: Siemens
• Part Number #: MT0100I
• Dimensions: 2.79 in H x 3.31 in W x 3.78 in D
• Enclosure Type: Open
• Frequency Rating: 50/60 Hz
• Phase: 1
• Secondary Voltage: 110 x 220 V AC
• Type: Class MT
• Connection type: Screw
• Manufacturer Name: Siemens
• Primary Voltage: 380/400/415 V AC
• Power Rating: 100 VA
• Temperature Rating: 55 deg C
• Insulation: Class 130 deg C
• Connection Type: Screw Terminal
• Alternate Mfr Part Number: MT0100I
• Frequency: 50/60 Hz
• Operating Temperature: -4 to 104 deg F
