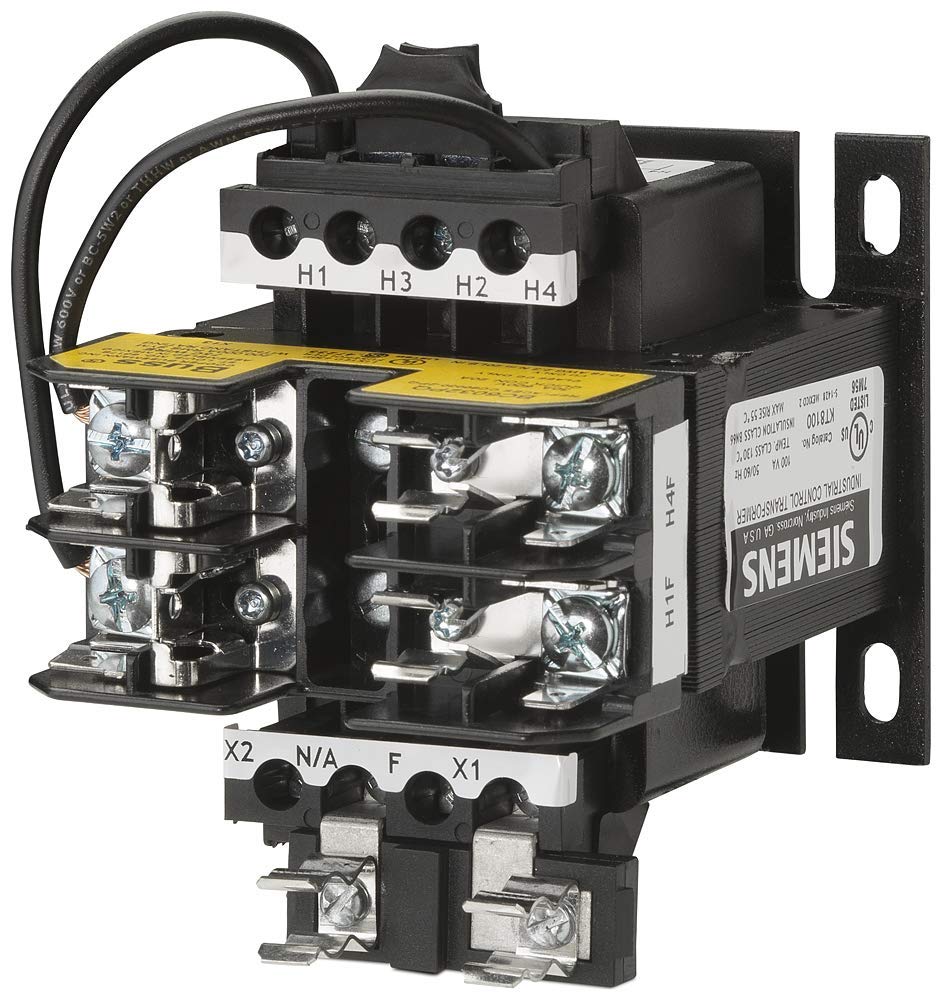

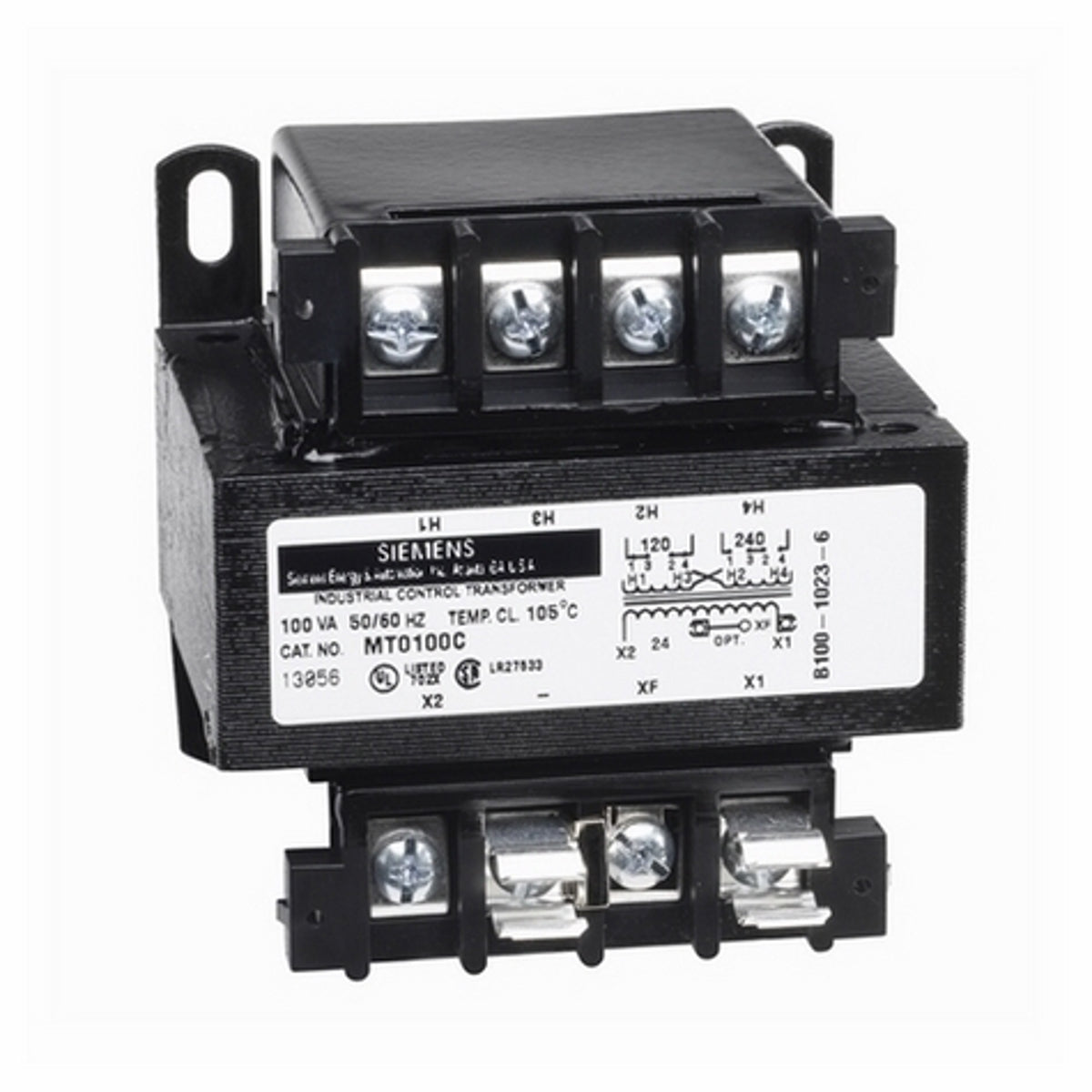

SIEMENS MT0100A Industrial Power Transformer 100VA

Product Description

The Siemens MT0100A Industrial Power Transformer is designed to support a wide range of industrial applications by converting primary voltages of 240 x 480 VAC, 230 x 460 VAC, or 220 x 440 VAC to secondary voltages of 120/115/110 VAC. This transformer accommodates a power rating of 100 VA and operates efficiently on a 50/60 Hz frequency.

• Reduces incoming voltage to safer levels.
• Supports installation in demanding environments.
• Encapsulated design protects against contaminants.

Product Highlights

This transformer is equipped with high-quality silicon steel laminations and copper magnet wire, enhancing efficiency and performance. It features epoxy encapsulation for resistance against moisture, dust, and industrial contaminants, ensuring longevity and reliability in harsh conditions.

Product Information

Technical Specifications

• Primary Voltage: 240 x 480 VAC, 230 x 460 VAC, 220 x 440 VAC
• Secondary Voltage: 120/115/110 VAC
• Power Rating: 100 VA
• Frequency: 50/60 Hz
• Build Material: Silicon steel, Copper magnet wire
• Encapsulation: Epoxy
• Mounting: Steel brackets for sturdy mounting
• Standards: UL listed, CSA certified
