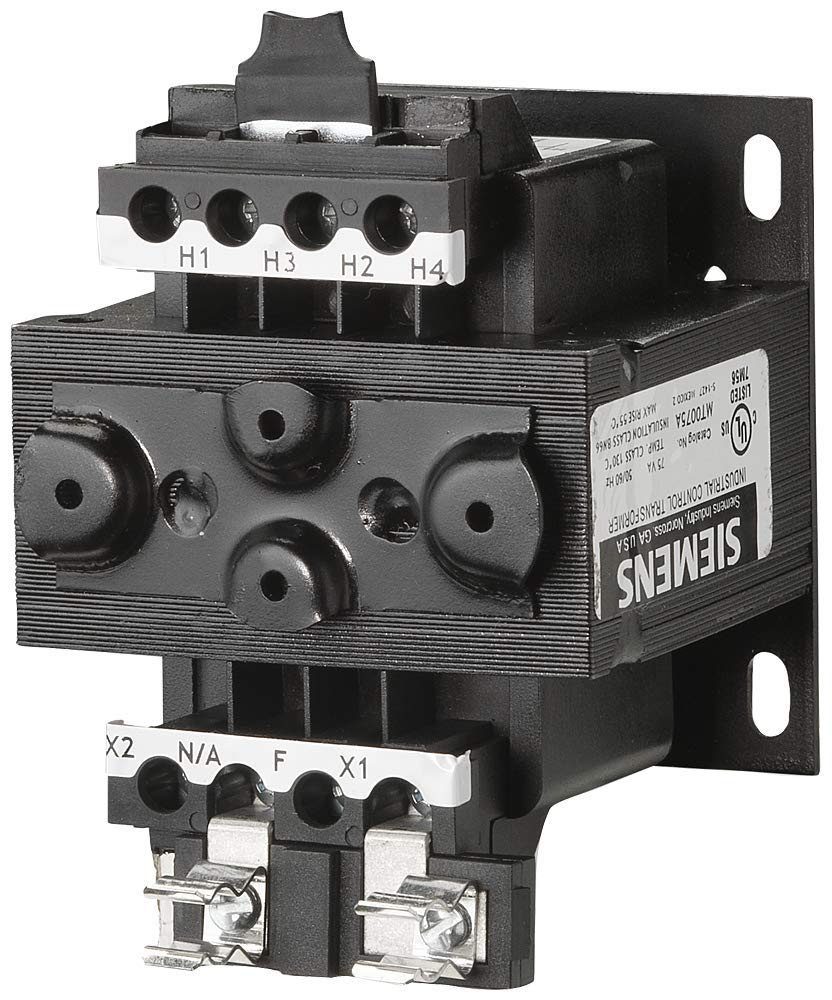

Siemens MT0075M Industrial Power Transformer Domestic 240 X 480 Volts 50/60Hz 120 X 240 Volts 75VA

Product Description

The Siemens MT0075M industrial power transformer is designed for reliable performance in demanding environments. It features a silicon steel-laminated core and copper magnet wire, enhancing efficiency to minimize voltage instability caused by inrush currents. The epoxy-encapsulated coils provide resistance to moisture, dust, and contaminants, ensuring long-lasting durability. Steel mounting brackets and slotted feet facilitate easy installation.

• Primary voltage: 240 x 480 volts
• Secondary voltage: 120 x 240 volts
• Power rating: 75VA

Product Highlights

This transformer is suitable for machine tools and industrial control circuits, offering efficient power conversion and protection from industrial environments.

Product Information

Standard Information

• Brand: Siemens
• Model: MT0075M
• Applications: Industrial control circuits, machine tools

Technical Specifications

• Primary Voltage: 240 x 480 volts
• Secondary Voltage: 120 x 240 volts
• Power Rating: 75VA
• Frequency: 50/60Hz
• Thermal Class: 105 degrees C
• Operating Temperature: 55 degrees C
• Enclosure: Open type
• Mounting Type: Foot/slotted
• Weight: 4.3 pounds
• Dimensions: 8.6 inches length, 7.65 inches width, 6.75 inches height
• Standards: UL, CSA
• Country of Origin: Mexico
