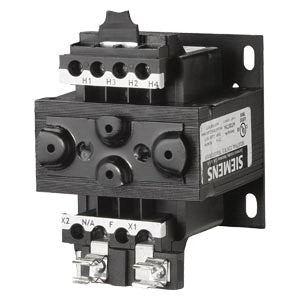

Siemens MT0050J Control Power Transformer 50VA

Product Description

The SIEMENS MT0050J is a control power transformer with 50VA, PRI 208/230/460 200/220/440 240/480V, SEC 24x115 23x110 25x120V, designed for domestic applications. It operates at 50/60 Hz and features screw connections for surface mounting. The epoxy encapsulated design seals the transformer coils against environmental contaminants.

• Epoxy encapsulated to seal against moisture, dust, dirt and industrial contaminants.
• Features factory mounted fuse clips for integral fusing on the secondary side.
• Laminations built with silicon steel to minimize core losses and increase efficiency.

Product Highlights

The SIEMENS MT0050J control power transformer provides reliable power conversion in industrial environments with its robust design and protective features.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MT0050J
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MT0050J
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Mexico
• Made in USA: No
• UPC: 00754554026695
• GTIN: 00754554026695
• Numeric ID: 2510413
• Part Number #: MT0050J
• SKU #: 2311702
• Primary Voltage: 208/230/460, 200/220/440, 240/480 V AC
• UNSPSC: 39121026
• Frequency: 50/60 Hz
• Power: 50 VA
• Phase: 1 ph
• Connection: Screw Connection
• Mounting: Surface Mounting
• Enclosure: Open Enclosure
• Temperature: -4 to 104 deg F
• Application: Domestic
• Category: Control Transformer
