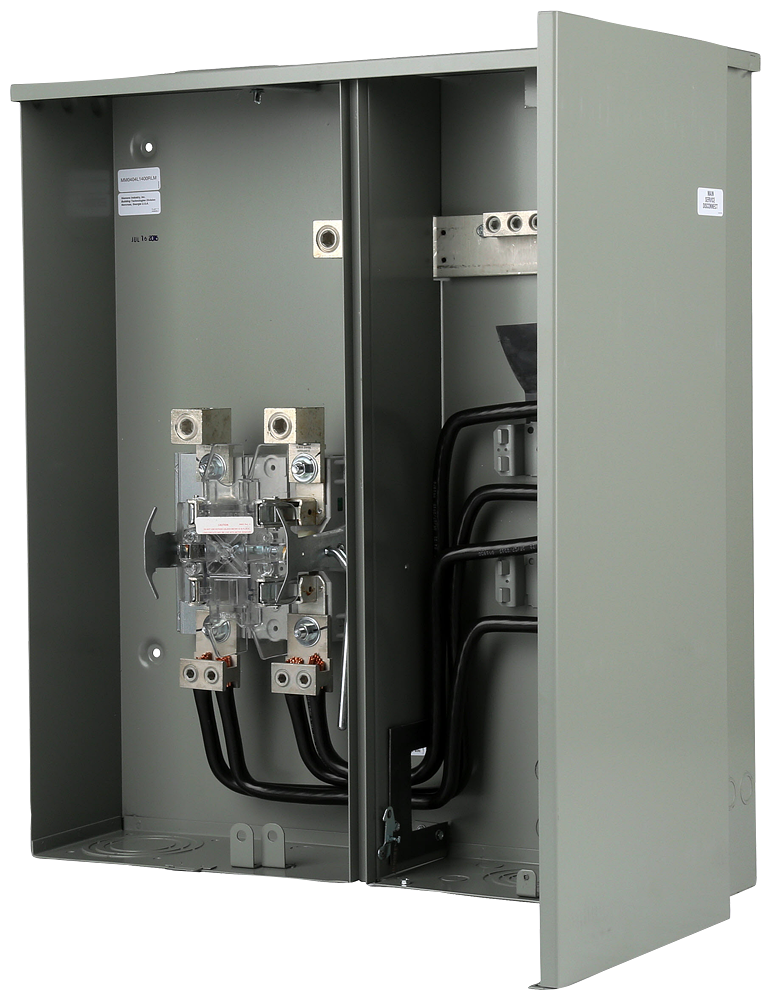

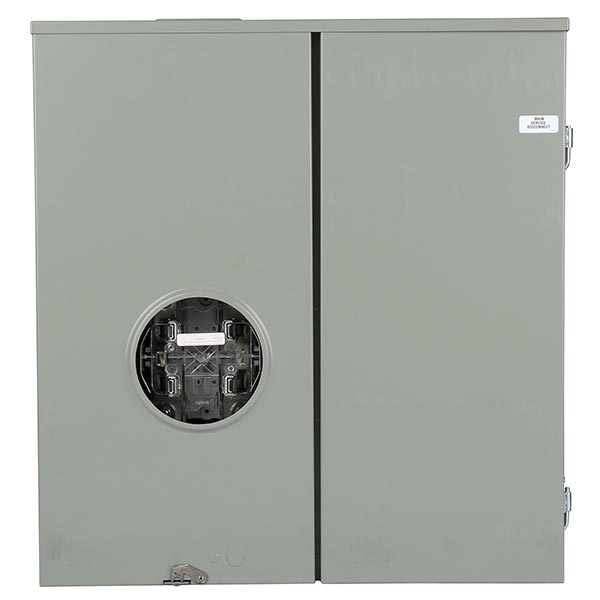

Siemens MM0404L1400RLM 120/240 VAC 400 Amp 1-Phase 22 kA 3-Wire 2-Circuit Ringless Meter Main

Product Description

The Siemens MM0404L1400RLM is a low voltage meter main designed for use in both overhead and underground applications. This device is rated for four spaces accommodating a maximum of four circuits, featuring a 400 Amp, one-phase configuration. The unit supports 120/240 VAC and includes a ringless type cover. The Siemens MM0404L1400RLM is equipped with special features such as a lever bypass socket and the ability to add a subfeed main in the field.

• Overhead/underground cable entry options
• Ringless enclosure for safer installation
• UL 67 certification for reliability

Product Highlights

This meter main is suitable for residential and commercial environments. Its robust design allows for a straightforward installation process while ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Siemens
• Catalog Number: MM0404L1400RLM

Technical Specifications

• Voltage: 120/240 VAC
• Amperage Rating: 400 Amp
• Enclosure Type: Ringless
• Phase: 1
• Mounting Type: Surface
• Dimensions: 30.6 inches (L) x 28.5 inches (W) x 7.4 inches (H)
• Weight: 68.8 lbs
• Country of Origin: USA
