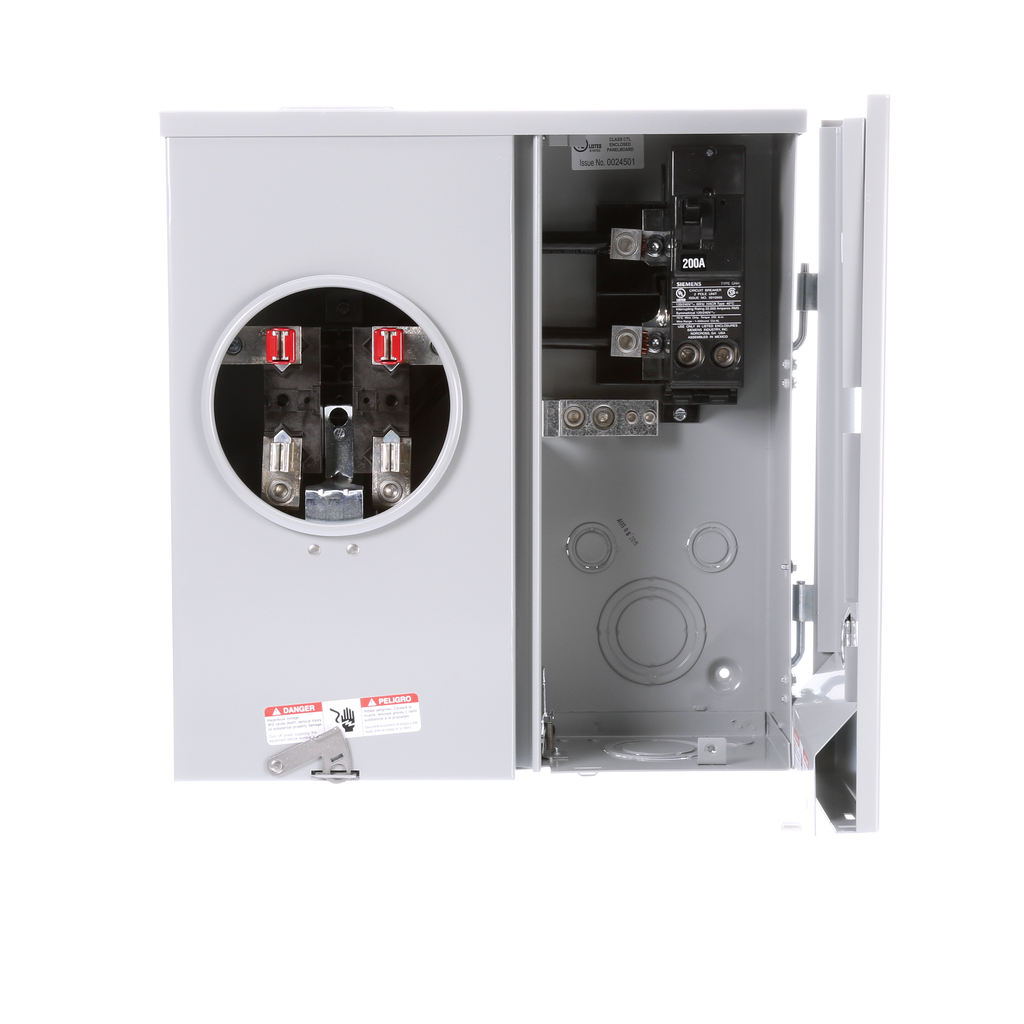

Siemens MM0202B1200 Combination Meter / Main, 120/240 VAC 1-Phase 3-Wire, 200A Meter Socket / 200A Main, 2-Circuit 22kA, 4-Jaw, No Bypass, Ring Cover, NEMA 3R

Product Description

The Siemens MM0202B1200 combination meter and main is a device designed for 120/240 VAC, single-phase applications. This unit features a 200 amp rating and supports up to two circuits. Its design includes a four-jaw meter configuration for accurate measurement of electric usage. The meter includes a factory-installed main breaker and offers a ring cover for added protection.

• Factory installed main breaker for ease of setup
• Rated for 200 amps, ideal for residential applications
• Durable NEMA 3R enclosure for outdoor use

Product Highlights

Ideal for service entrance equipment and residential applications, the MM0202B1200 offers a reliable solution for electrical distribution needs.

Product Information

Standard Information

• Manufacturer: Siemens
• Catalog Number: MM0202B1200

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 200 A
• Enclosure Type: NEMA 3R
• Number of Circuits: 2
• Breaker Type: QN2200H
• Dimensions: 17 inches H x 16 inches W x 5 inches D
