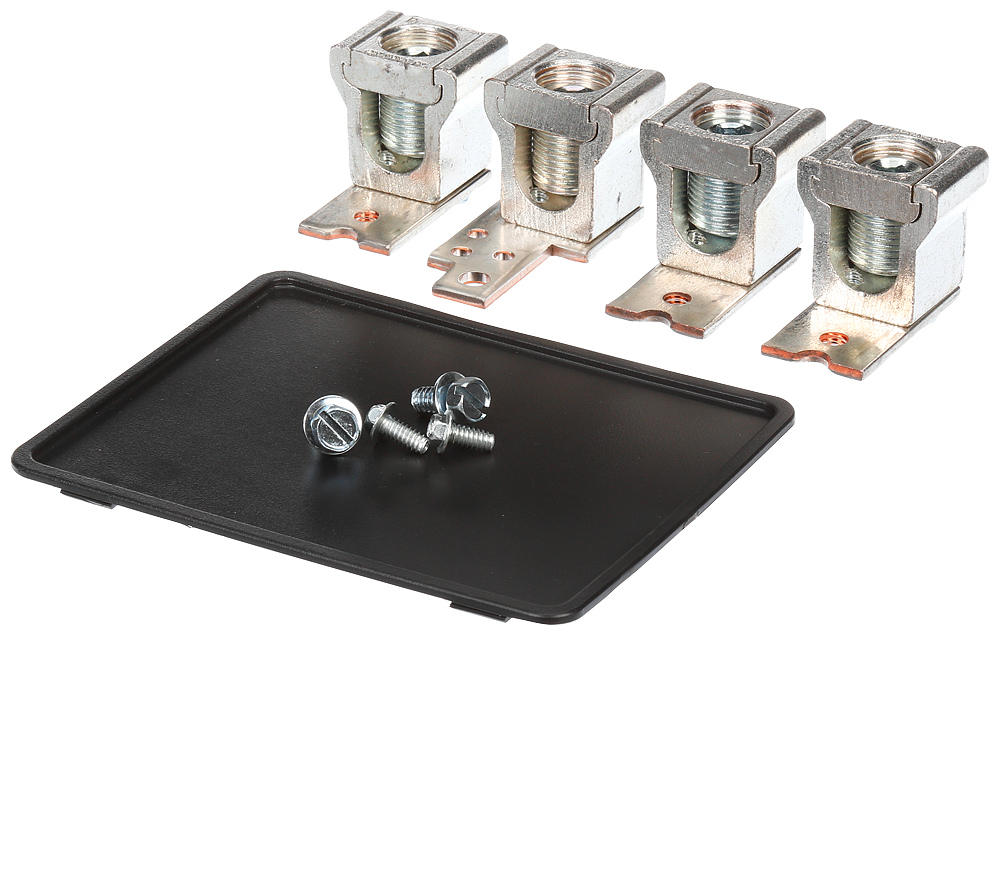

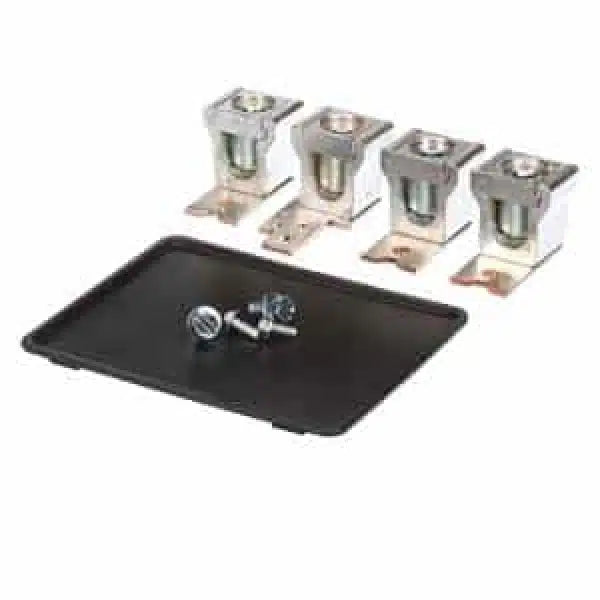

Siemens MLKC3 250 Amp 6 AWG to 350 MCM Aluminum/Copper Conductor Feed-Through Panelboard Lug Kit

Product Description

The SIEMENS MLKC3 is a 250 Amp feed-through panelboard lug kit designed for aluminum or copper conductors. This kit is suitable for lighting panel applications and accommodates conductor sizes from 6 AWG to 350 kcmil. It is designed for use with 3-Phase P1, S1/S2 Panelboards.

• (1) 6 AWG to 350 kcmil copper/aluminum
• Lighting panel accessories
• Top level assembly

Product Highlights

The SIEMENS MLKC3 lug kit ensures secure and reliable connections in panelboard applications, suitable for both commercial and residential settings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MLKC3
• Country of Origin: USA

Technical Specifications

• Type: Field Installable
• Amperage: 250 Amp
• Applications: For Lighting Panel
• Number of Phases: 3 Phase
• Conductor Material: Copper/Aluminum (assumed)
• Width: 8.600 in
• Height: 4.5 in
• Length: 13.8 in
• Mounting Type: Panel
• Conductor Range: 6 AWG to 350 kcmil
• Electrical Rating: 250 A
• Application: Lighting Panel Accessories, Commercial and Residential Applications
• Suitable For Use With: 3-Phase P1, S1/S2 Panelboard
• Manufacturer: SIEMENS
• UPC: 78364327103
• Product Group: Accessories
• Category: Accessories, Circuit Breakers
• Family: MLKC
• Type class: MLKC
• Sub category: Lug Terminal Kit
• Condition: New
