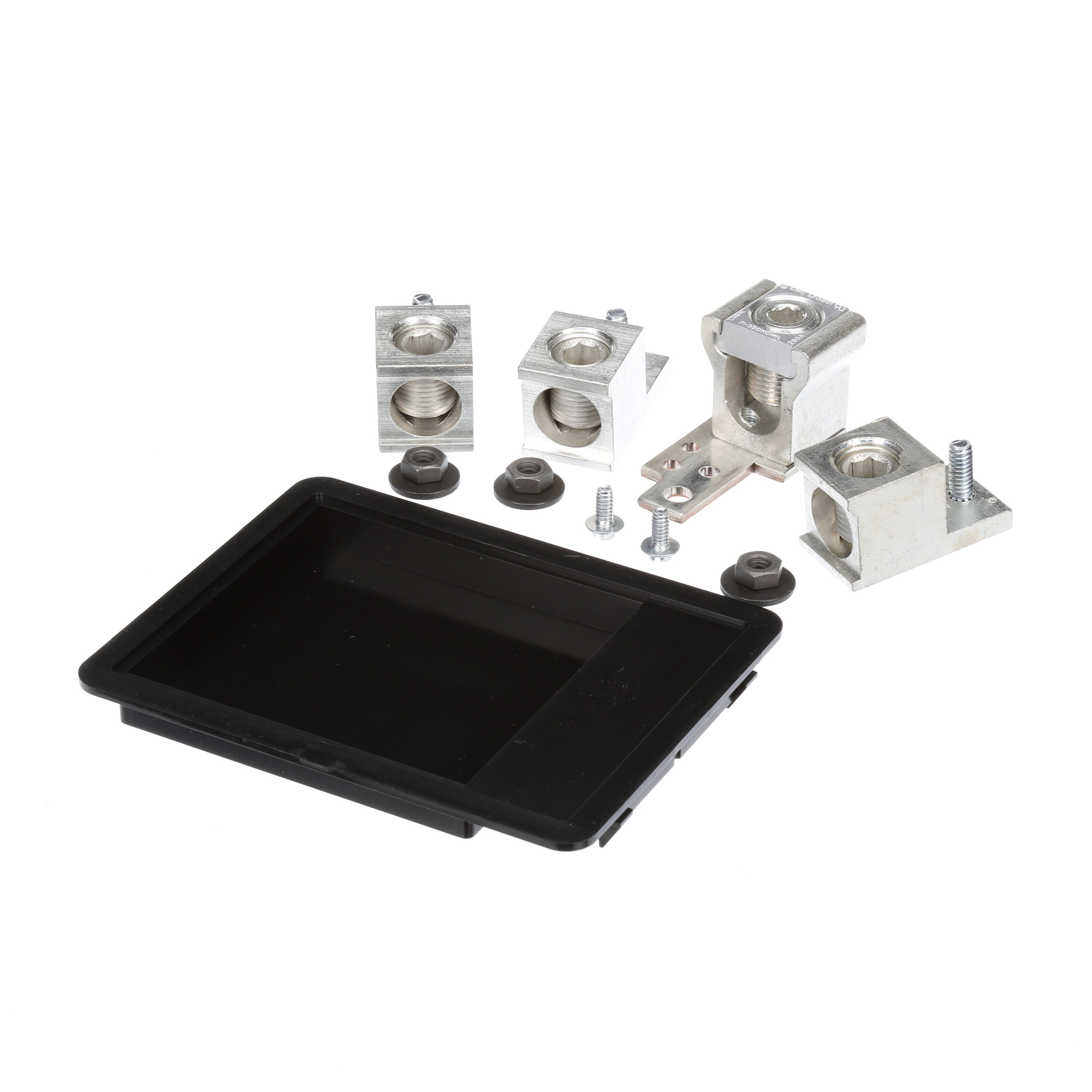

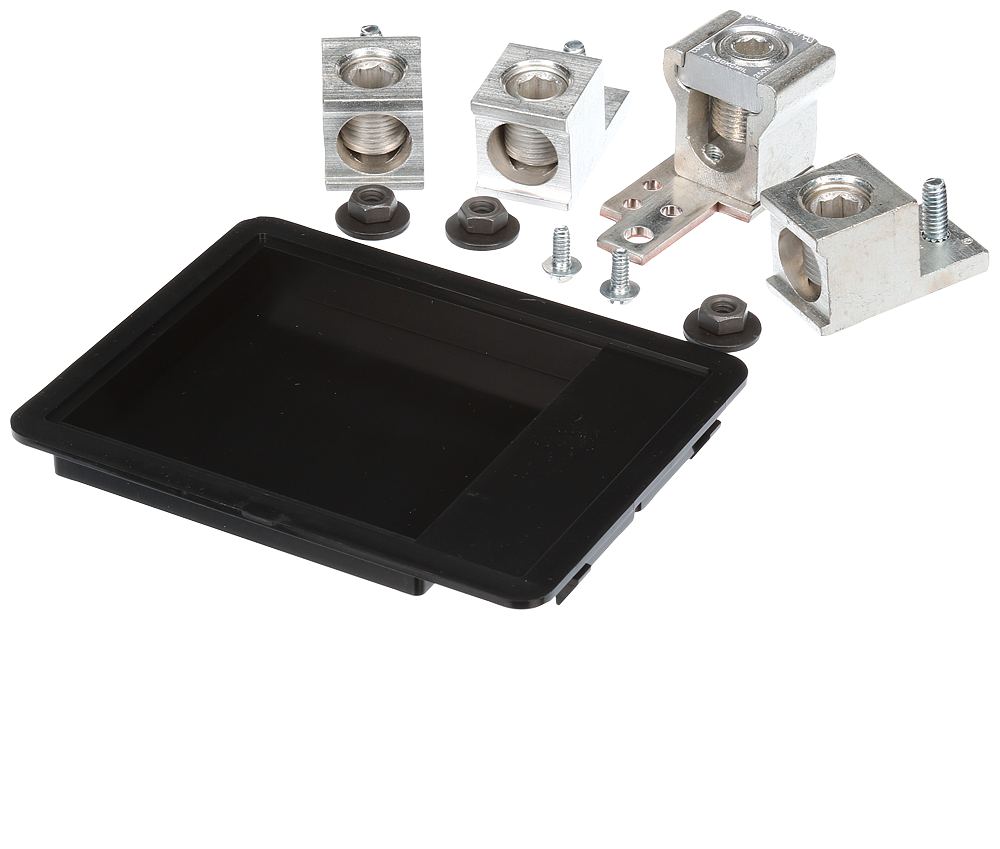

Siemens MLKA3 Main Lug Kit 250 Amp 6 AWG to 350 MCM

Product Description

The SIEMENS MLKA3 is a main lug kit designed for panelboard applications. Suitable for 3-Phase systems rated (250A). It accommodates 6 AWG to 350 kcmil (CU or AL) conductors and is designed for original P1 interior panelboards. Not suitable for use with Revised P1 panels produced after December 2014.

• 6 AWG to 350 kcmil copper/aluminum
• Lighting panel accessories
• Top level assembly

Product Highlights

Main lug kit for panelboards. Supports 6 AWG to 350 kcmil conductors. Designed for 3-Phase systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MLKA3
• Country of Origin: USA

Technical Specifications

• Catalog #: MLKA3
• Brand: Siemens
• Manufacturer: Siemens
• Type: Fieldinstallablekit
• Applications: For Lighting Panel
• Conductor Size: 6 AWG to 350 kcmil copper/aluminum
• Number of Phases: 3 Phase
• Conductor Material: Aluminum
• Sub Brand: Panelboards
• Application: Lighting Panel Accessories, Commercial and Residential Applications
• Panel Mounting: Panel Mounting
• For Use With: 3-Phase P1, S1/S2/SE Panelboard
• Electrical Rating: 250 A
• Length: 13.7 in
• Width: 8.7 in
• Height: 4.6 in
• Material: Aluminum
