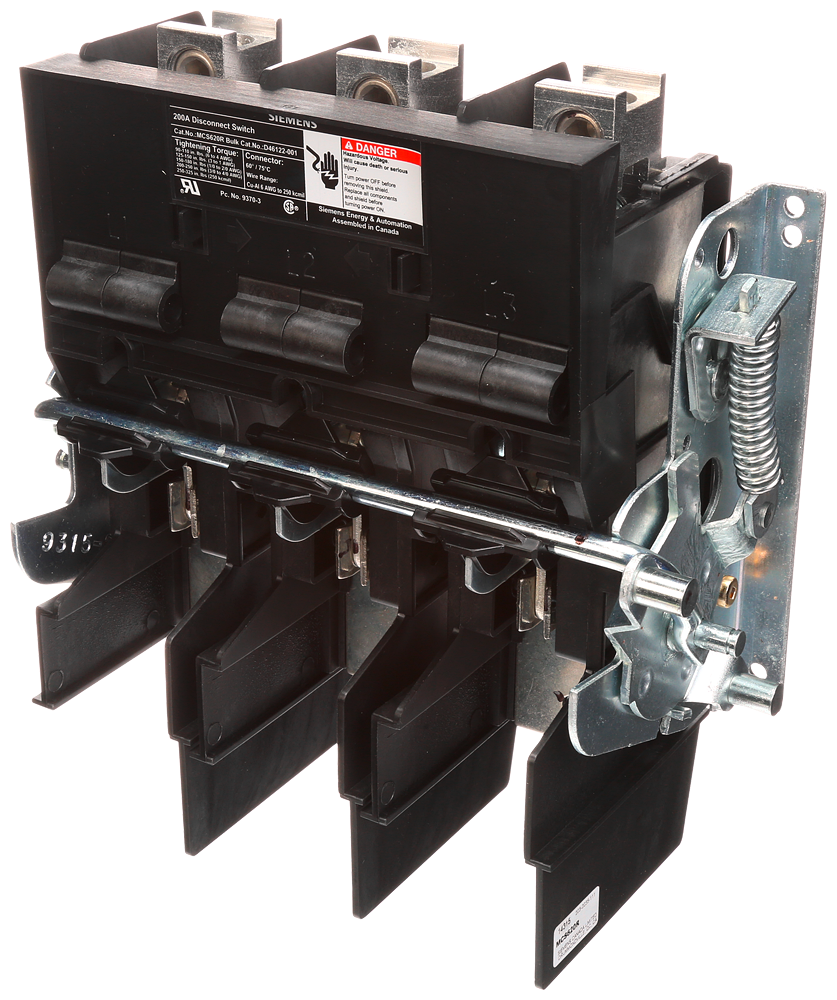

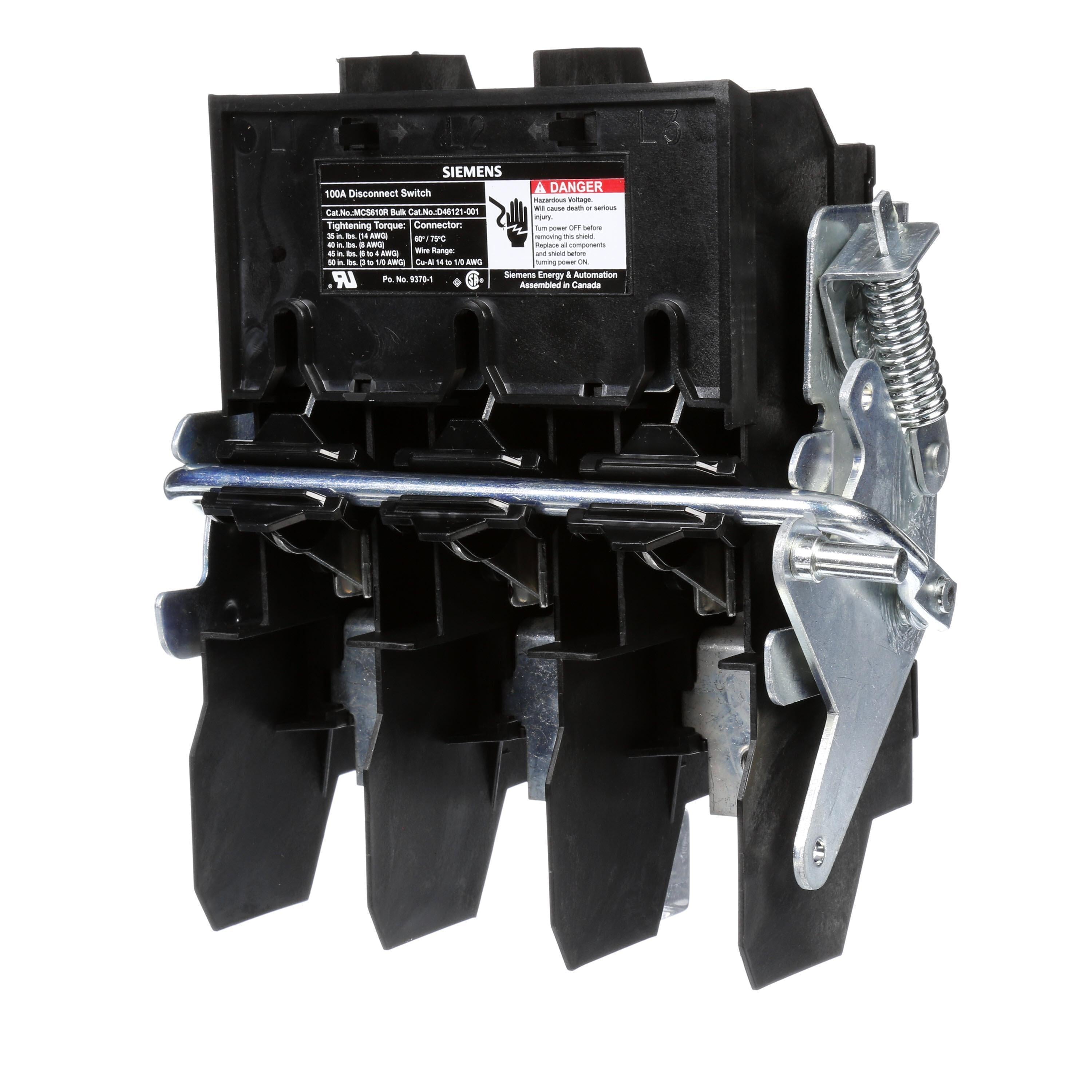

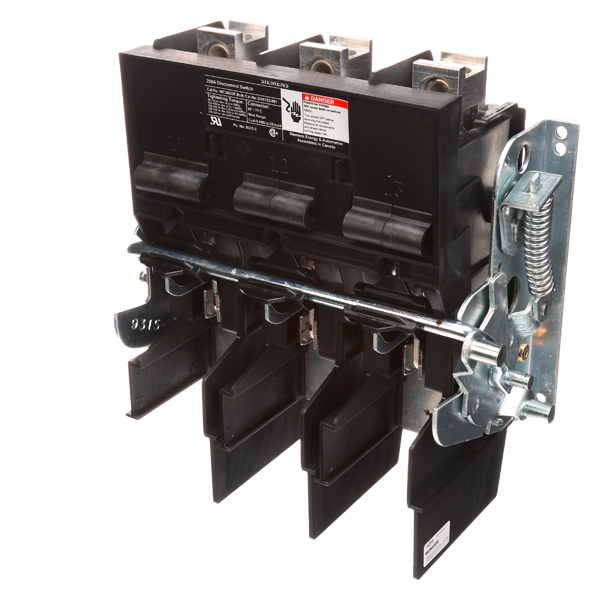

Siemens MCS610R Mcs Sw Disconnect 600V 100A Right Op

Product Description

The SIEMENS MCS610R Mcs Sw Disconnect is a motor control disconnect switch rated at 600V and 100A. It features a right-hand operator and is designed for electrical distribution applications. The disconnect switch is UL listed and CSA certified, suitable for industrial and outdoor environments.

• Basic Right Hand Fusible
• NEMA 1/3/3R/12 Enclosure
• Field Installable Auxiliary Contacts

Product Highlights

The Siemens MCS610R disconnect switch offers reliable performance with flange mounting and lug terminals. It supports 15 hp at 240 VAC, 25 hp at 480 VAC, and 30 hp at 600 VAC power ratings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: MCS610R
• Country of Origin: CAN

Technical Specifications

• Brand: Siemens
• Part Number #: MCS610R
• SKU #: 20145
• Enclosure Type: NEMA 1/3/3R/12
• Horsepower: 30 hp, 20 hp
• Series: MCS
• Temperature Rating (Degrees F): 20 to 120
• Type: Basic Right Hand Fusible
• Action: SINGLE THROW
• Amperage: 100 Amp
• Applications: Electrical Distribution
• Frequency: 60 Hz
• Insulated?: Yes
• Mounting Type: Flange
• Operating Cycles: 10000
• Operating Temperature: -20 to 120 degrees F Ambient
• Sub Brand: DISCONNECT SWITCH
• 12-Digit UPC: 783643011458
• Model: MCS610R
