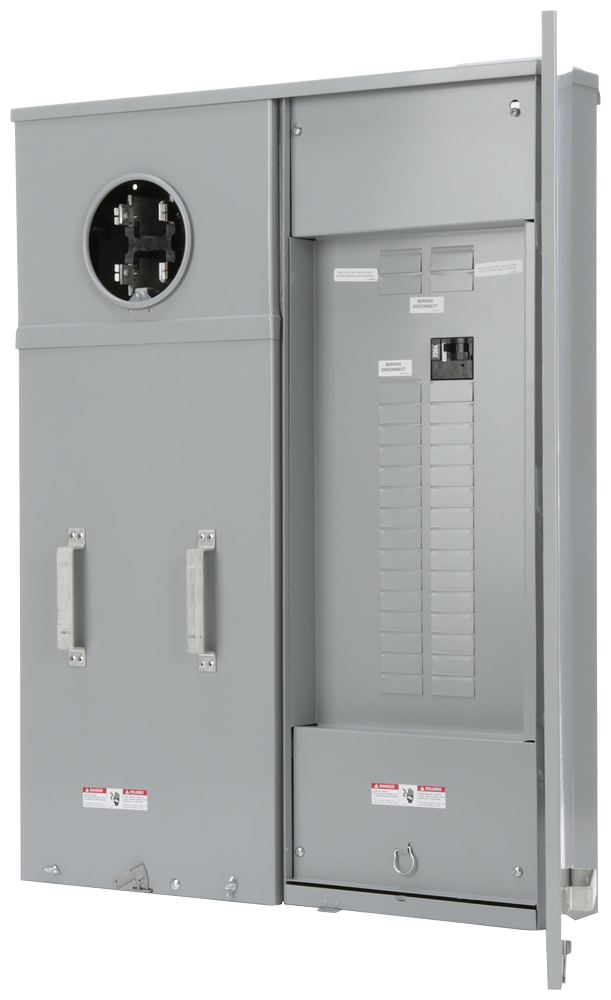

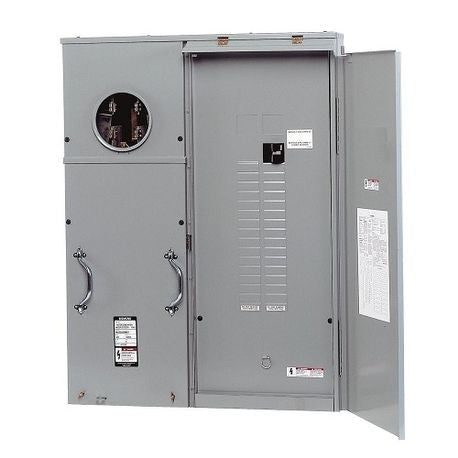

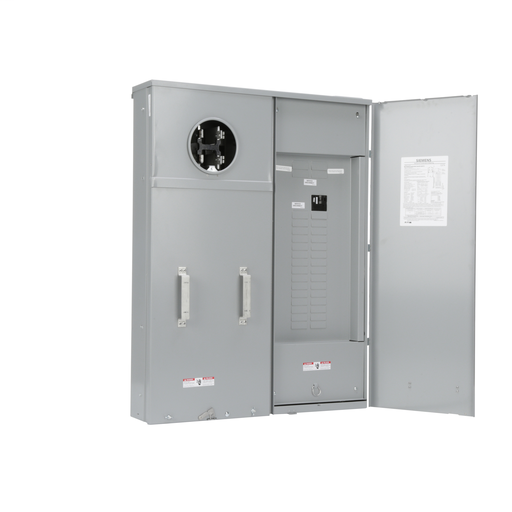

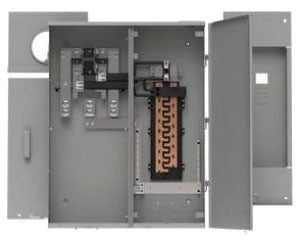

Siemens MC3042B1400SD 120/240 VAC 400 Amp 1-Phase 3-Wire Combination Meter Load Center

Product Description

The Siemens MC3042B1400SD is a 120/240 VAC 400 Amp 1-Phase 3-Wire Combination Meter Load Center. This load center is designed for residential and commercial applications where reliable metering and circuit control are essential.

• Compatible with up to forty-two circuits.
• Features a factory-installed main breaker for added safety.
• Designed for surface mounting with a ring type cover.

Product Highlights

The Siemens MC3042B1400SD provides robust service entry equipment solutions. It has a four-jaw meter system and can handle various installed circuits for different loads.

Product Information

Standard Information

• Brand: Siemens
• Sub Brand: Meter Combos

Technical Specifications

• Amperage: 400 Amp
• Voltage: 120/240 Volt
• Dimensions: Width 28 inches, Height 7 inches, Length 31 inches
• Weight: 103 lb
• Enclosure: Ring
• Number of Phases: 1 Phase
• Applications: Service entrance equipment
• Country of Origin: Mexico
• Cable Entry: Bottom
