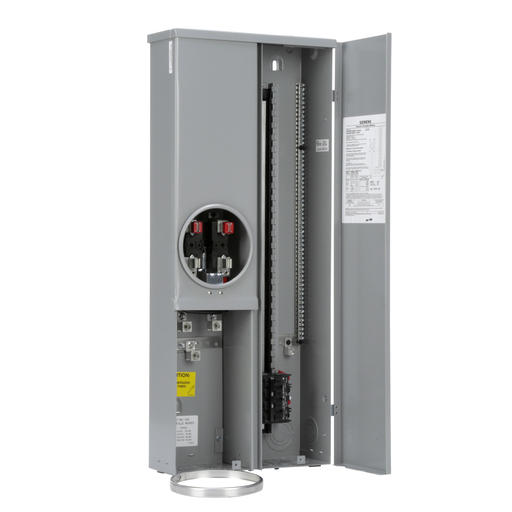

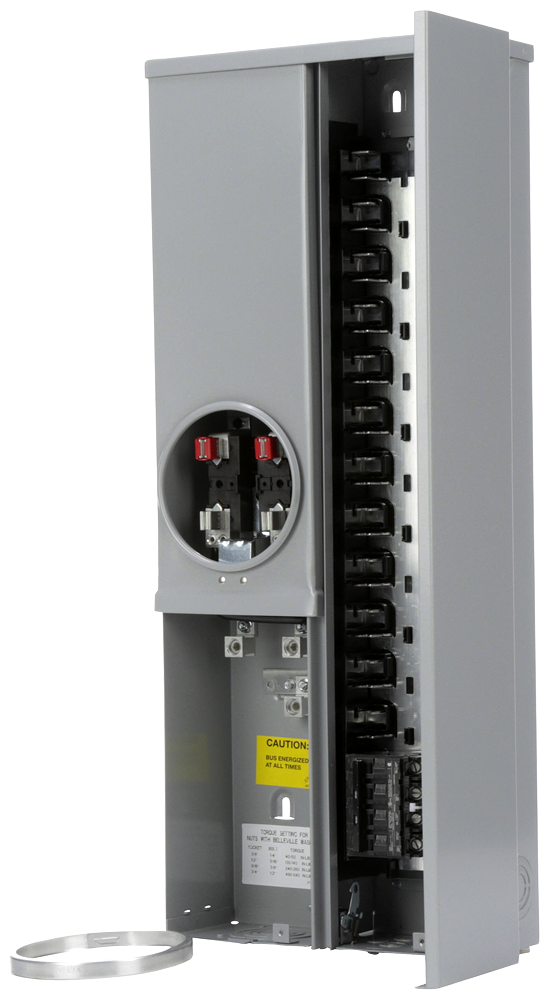

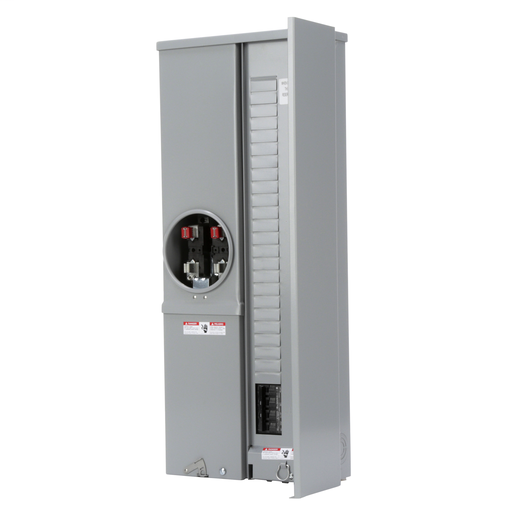

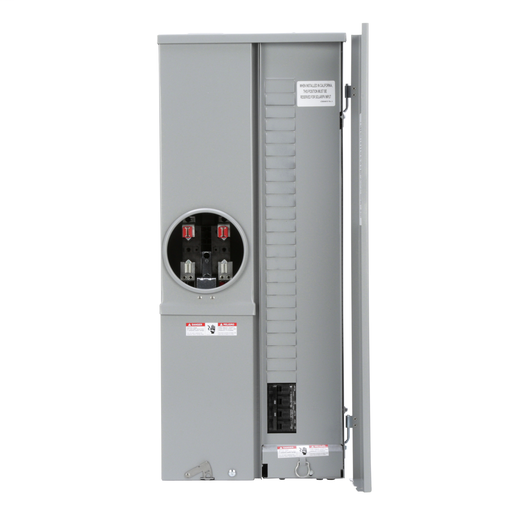

Siemens MC2442B1200ESV 200 Amp 24-Space 42-Circuit OH/UG 5-Jaw Ring No Bypass Meter Main Solar Ready Meter Center

Product Description

The Siemens MC2442B1200ESV is a 200 Amp, 24-space meter load center designed for both overhead and underground feed. It features a factory-installed main breaker and accommodates up to 42 circuits. The 4-jaw meter is suitable for a one-phase system and is ready for solar integration. With a ring type cover, this surface-mounted model meets EUSERC solar energy input approvals.

• 200 Amp main breaker
• Features top/bottom cable entry
• Surface mounting for easy installation

Product Highlights

This product is ideal for residential and commercial applications requiring a robust load center capable of handling increased solar inputs.

Product Information

Standard Information

• Brand: Siemens
• Sub Brand: Modular Metering

Technical Specifications

• MPN: MC2442B1200ESV
• Amperage: 200 Amp
• Voltage: 120/240 Volt
• Enclosure: Ring
• Mounting Type: Surface
• Height: 8 Inch
• Width: 18.500 in
• Length: 38-3/4 Inch
• Weight: 41.000 lb
• Number of Spaces: 24
• Number of Circuits: 42
• Phase Type: 1 Phase
• Country of Origin: Mexico
